GY-63 MS5611-01BA03 High Precision Barometric Pressure Sensor Module - I2C/SPI Interface
The GY-63 module integrates the MS5611-01BA03 MEMS pressure sensor with a 24-bit ADC, providing high-precision barometric pressure and temperature data via I2C or SPI interface for altimetry, navigation, and weather monitoring applications with 3.3V or 5V microcontrollers like Arduino, ESP32, and Raspberry Pi.
Features
- High-precision MS5611-01BA03 MEMS barometric pressure sensor with factory-calibrated coefficients.
- Dual I2C and SPI digital communication interfaces for flexible microcontroller integration.
- Ultra-low power 24-bit ΔΣ ADC enables altitude resolution down to 10 cm.
- Wide operating voltage range of 3V to 5V with integrated low-dropout regulator.
- Robust operating temperature range from -40°C to +85°C for harsh environments.
Out of stock
The GY-63 sensor module is built around the MS5611-01BA03, a piezoresistive MEMS pressure sensor combined with a high-resolution 24-bit delta-sigma analog-to-digital converter. This integrated design provides calibrated digital output for both pressure and temperature, eliminating the need for external signal conditioning or complex calibration routines. The sensor’s internal oscillator and programmable oversampling ratios allow users to optimize the trade-off between conversion speed, resolution, and power consumption.

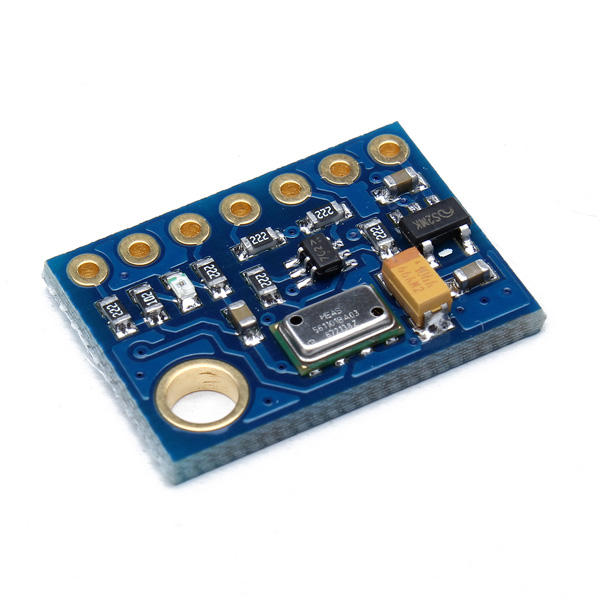

Housed on a compact gold-plated PCB with machine-soldered components, the module ensures reliable signal integrity and long-term durability. Its simple communication protocol requires no internal register programming, making it straightforward to interface with a wide range of microcontrollers and embedded systems for precise atmospheric pressure measurement and altitude calculation.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 1.3 × 1.9 cm |
