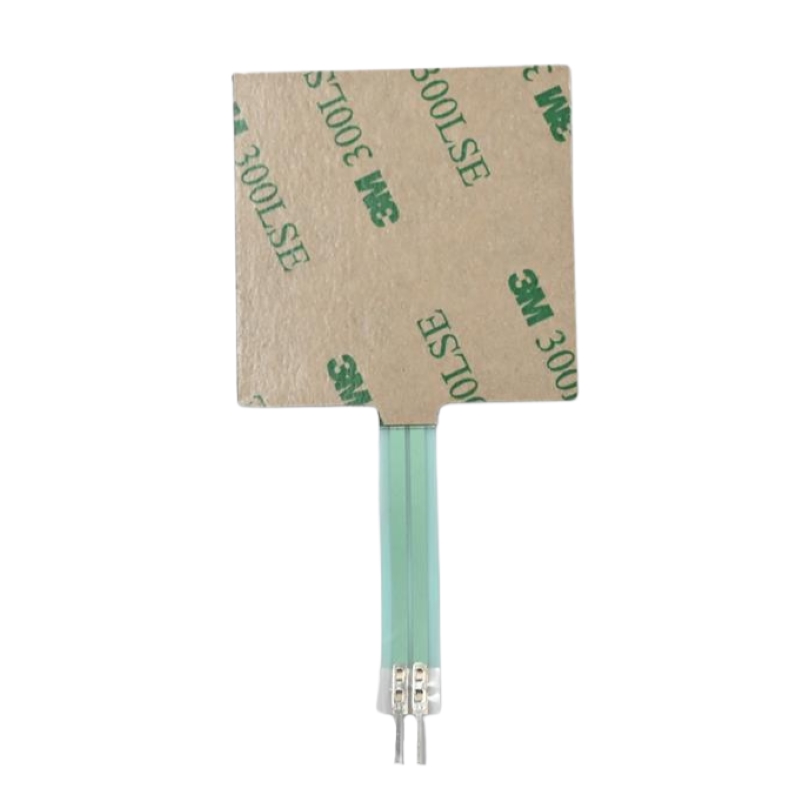

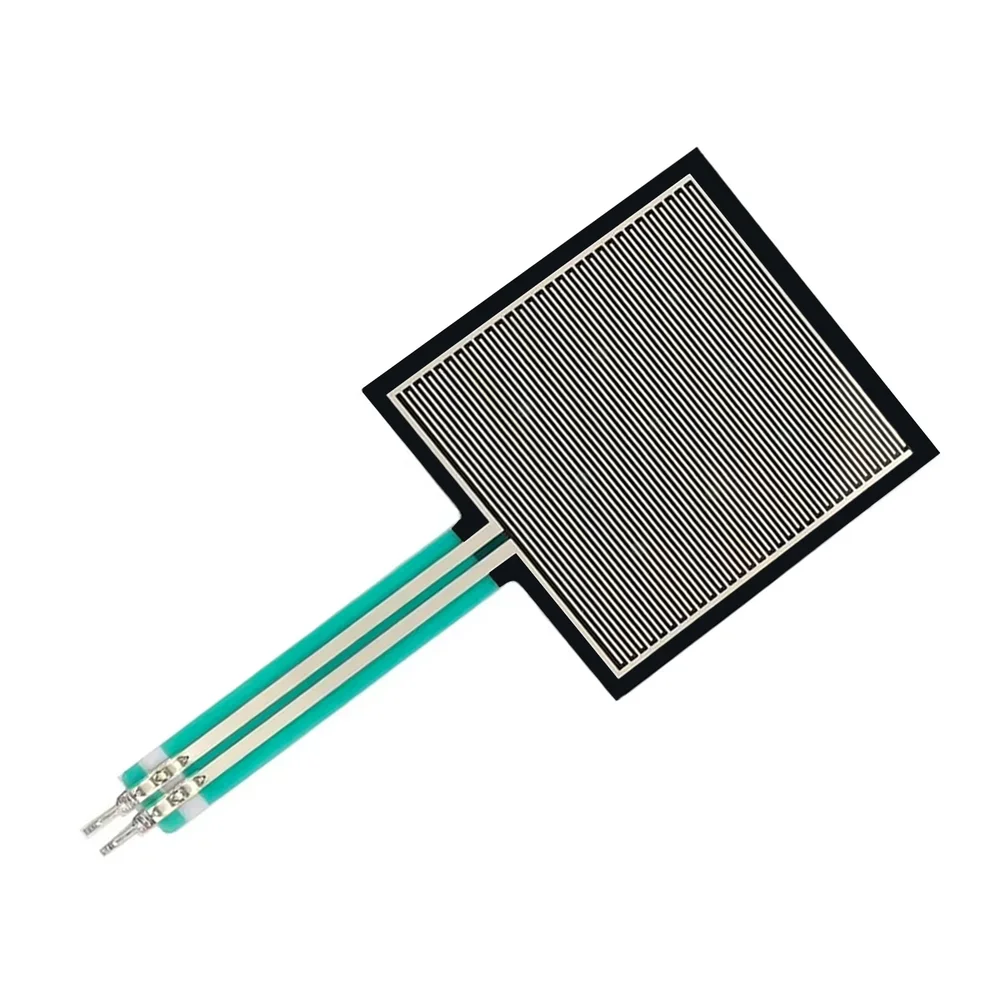

SOUSHINE FSR406 Force Sensitive Resistor 39.7mm Active Area 20g–10Kg Pressure Sensor
The SOUSHINE FSR406 is a thin-film force-sensitive resistor (FSR) with a 39.7mm square active area, designed for precise pressure measurement from 20g to 10kg. It provides a simple two-wire resistive output compatible with microcontroller ADCs for integration into Arduino, Raspberry Pi, and industrial control systems.
Features
- 39.7 x 39.7 mm active sensing area for broad force distribution.
- Ultra-thin 0.45mm profile enables integration into compact assemblies.
- High durability rated for up to 10 million actuation cycles.
- Low actuation force threshold of 0.1N (approx. 10g) for high sensitivity.
- Highly repeatable readings with less than 2% variance under consistent actuation.
Out of stock
The FSR406 utilizes a polymer thick-film (PTF) technology where applied force decreases the internal resistance, providing an analog signal proportional to pressure. This single-zone sensor is engineered for human-machine interface (HMI) applications requiring reliable touch detection and force quantification.
Its robust construction ensures stable performance across a wide operating temperature range, making it suitable for integration into automotive electronics, medical devices, and industrial robotics. The simple two-wire interface allows for straightforward connection to voltage divider circuits for analog-to-digital conversion with common 3.3V or 5V logic systems.
Additional Information
| Dimensions | 4.3 × 0.045 cm |
|---|
