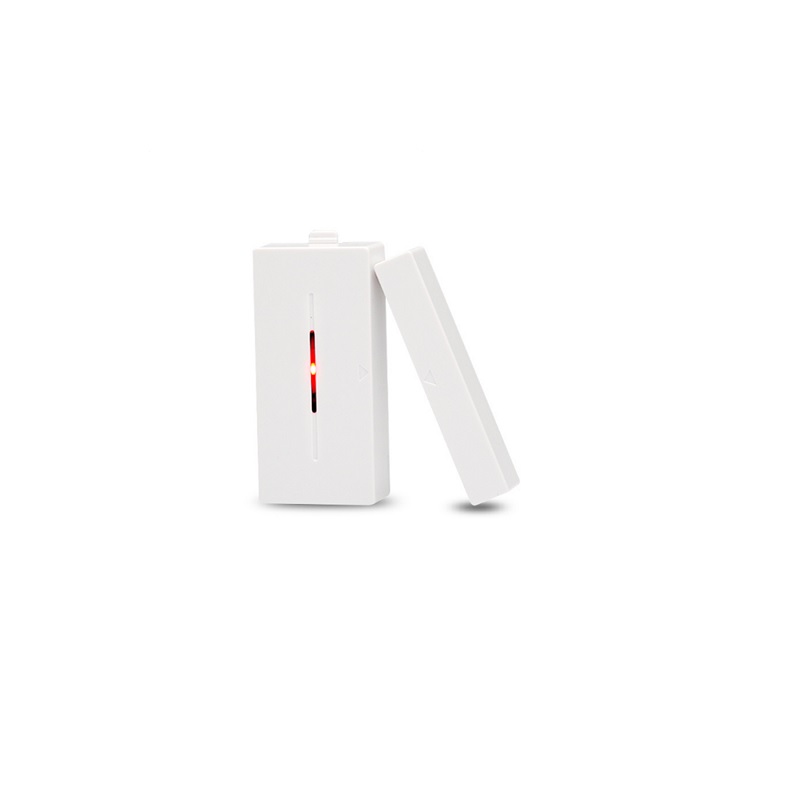

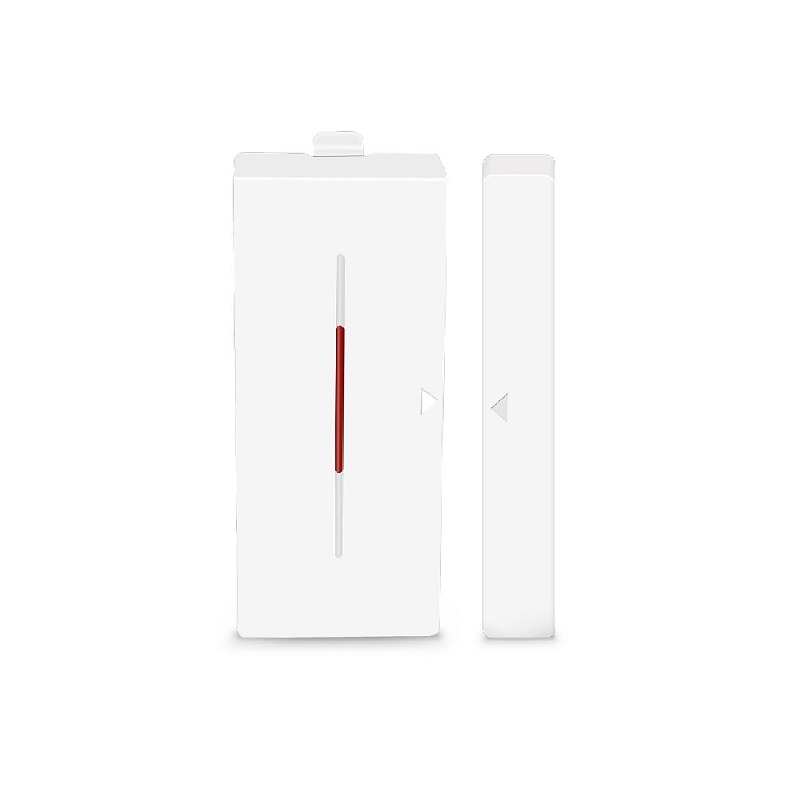

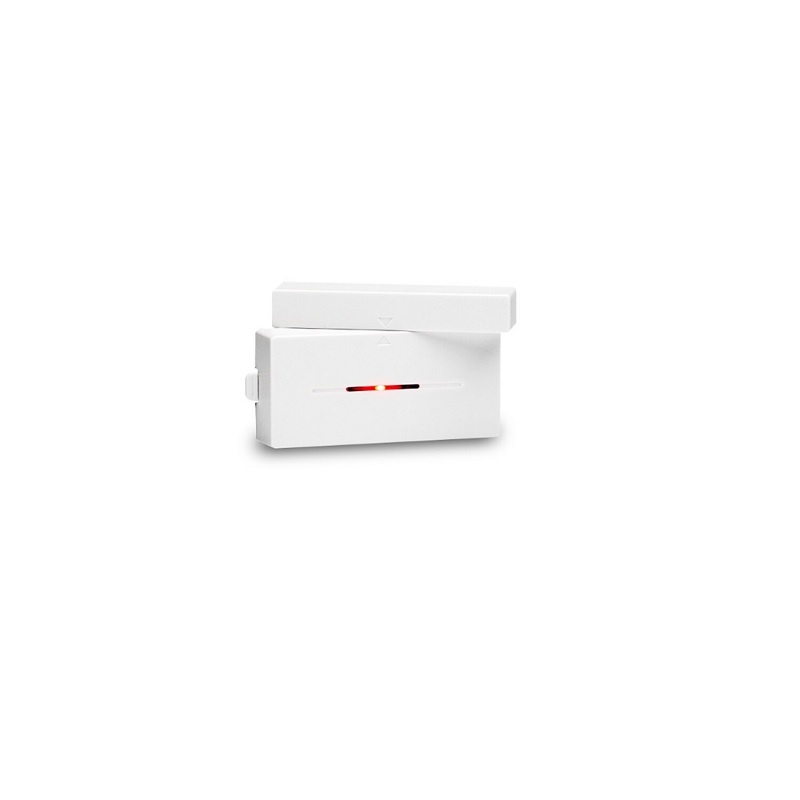

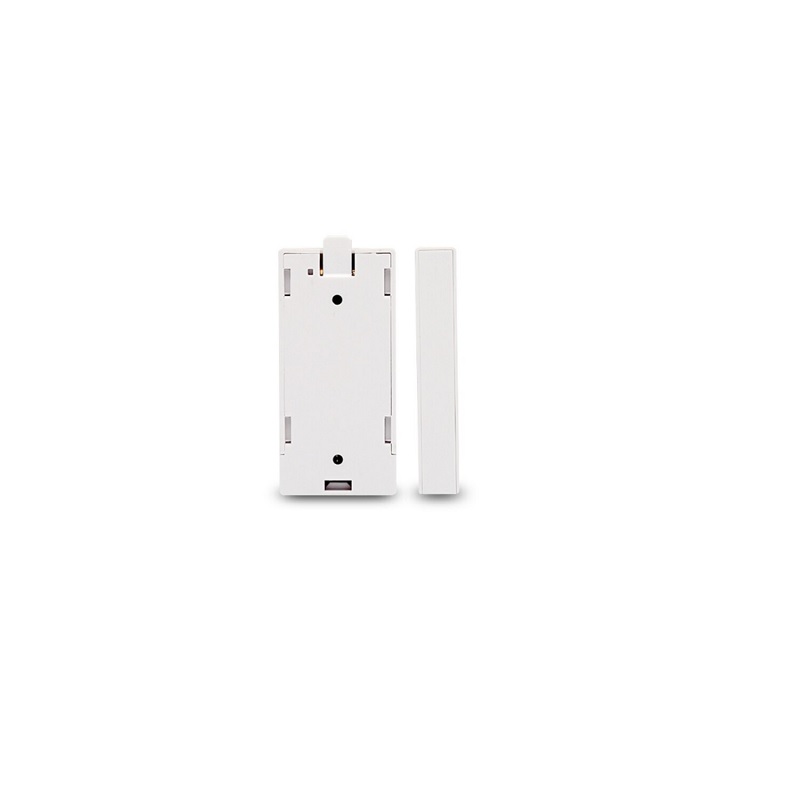

Sonoff DW1 433MHz Wireless Door Magnetic Sensor - 12V DC, RF Bridge Compatible
The Sonoff DW1 is a 433MHz wireless magnetic contact sensor designed for integration with the Sonoff RF Bridge, enabling smart home and IoT security applications. It operates on a 12V DC supply and transmits alarm signals when a door or window is opened, compatible with the Sonoff eWeLink ecosystem.
Features
- 433MHz RF wireless transmission with a range of ≥100 meters in open space.
- Ultra-low power consumption with ≤9μA static current and ≤15mA transmission current.
- Designed for seamless integration with the Sonoff RF Bridge and eWeLink app for remote monitoring.
- Simple magnetic reed switch operation triggers an alarm on separation.
- Compact design for discreet installation on doors, windows, or cabinets.
Out of stock
The Sonoff DW1 Wireless Magnetic Sensor functions as a wireless contact switch, utilizing a sealed magnetic reed switch. When the attached magnet is separated from the sensor body (e.g., by opening a door), the internal circuit is triggered, causing the 433MHz RF transmitter to send a coded alarm signal. This signal is received by a compatible Sonoff RF Bridge, which then relays the status to the cloud for notification via the eWeLink mobile application.
Engineered for low-power operation in always-on security systems, the sensor draws minimal current in standby mode. Its 433MHz frequency provides reliable penetration through walls and obstacles. The device is designed for simple DIY installation in residential and light commercial environments, supporting the creation of customized intrusion detection and automation scenarios without complex wiring.
Additional Information
| Weight | 0.045 kg |
|---|---|
| Dimensions | 5.5 × 9.5 × 3 cm |
