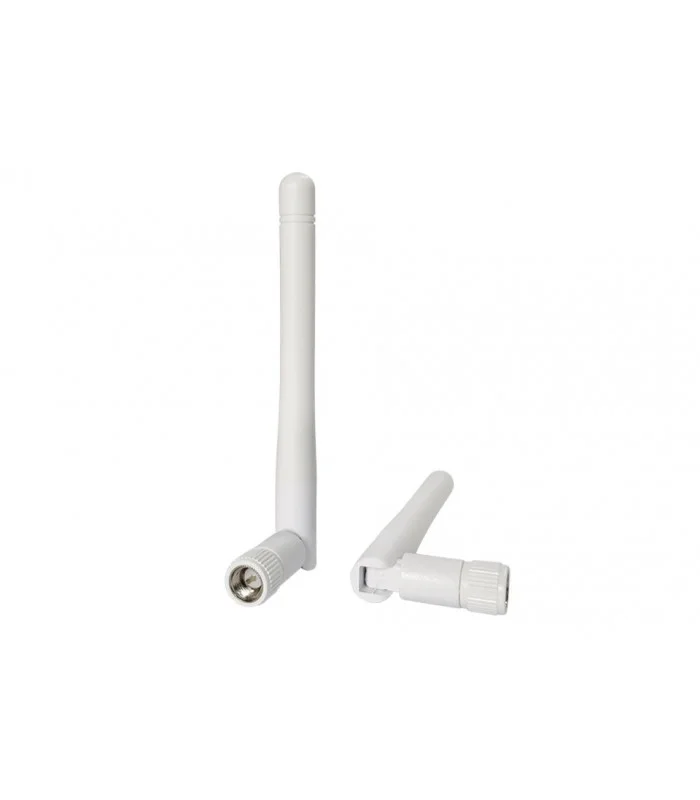

LoRa Antenna 433MHz SMA Male 3.6dBi
A 433MHz quarter-wave LoRa antenna with an SMA male connector, offering 3.6dBi peak gain and 50-ohm impedance for extending the range of LoRa, ISM-band, and wireless telemetry modules.
Features
- 433MHz ISM Band Optimized – Tuned for LoRa, wireless sensor networks, and other 433MHz ISM applications.
- 3.6dBi Peak Gain – Provides a focused radiation pattern for improved signal strength and extended communication range.

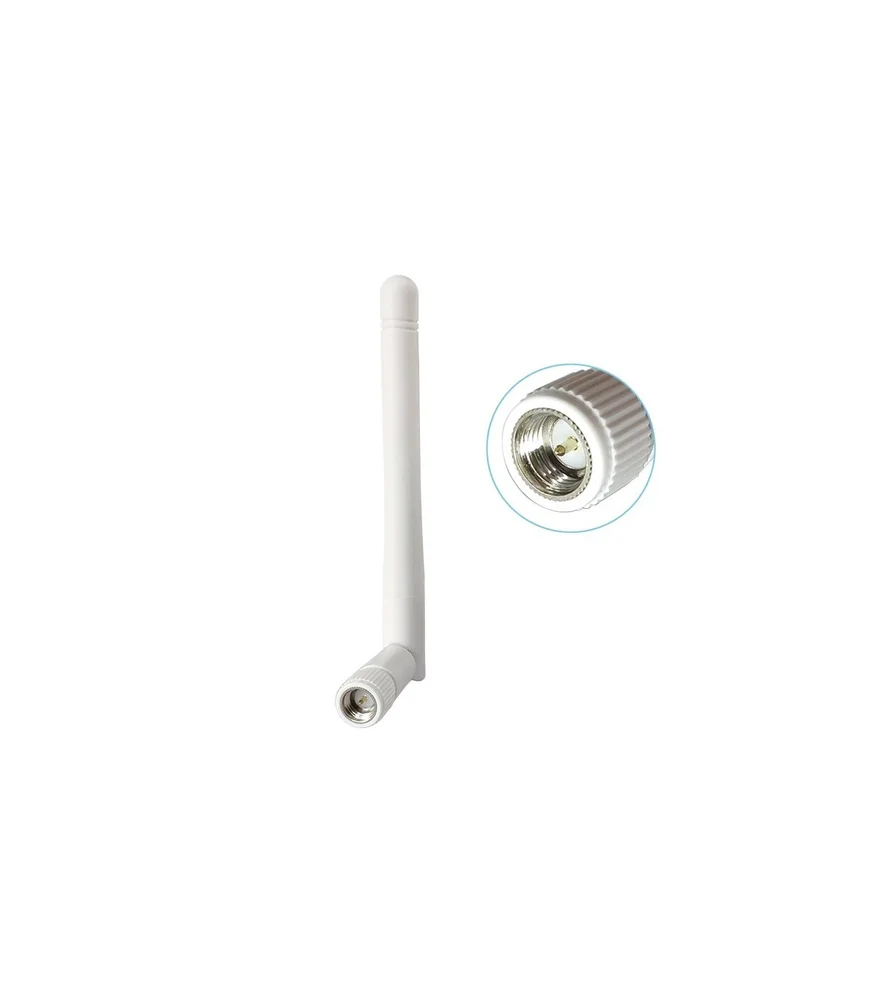

- SMA Male Connector – Standard connector for direct compatibility with many LoRa modules, gateways, and RF boards.
- 50-Ohm Impedance & Low VSWR – Ensures efficient power transfer and minimal signal reflection for stable RF performance.
- Compact & Durable – Robust construction with an operating temperature range of -20°C to +85°C for indoor/outdoor use.
Out of stock
This 433MHz LoRa antenna is a quarter-wave monopole designed for the industrial, scientific, and medical (ISM) radio bands. It provides a cost-effective solution for enhancing the signal range and reliability of LoRa transceivers, wireless telemetry nodes, and other 433MHz RF systems. The antenna features a standard SMA male connector for direct attachment to compatible RF modules and gateways.
Engineered with a 50-ohm characteristic impedance and a low voltage standing wave ratio (VSWR), it ensures maximum power transfer from the transmitter with minimal reflected power loss. The compact form factor and wide operating temperature range make it suitable for integration into both prototype and deployed IoT systems in various environments.
Additional Information
| Weight | 0.008 kg |
|---|---|

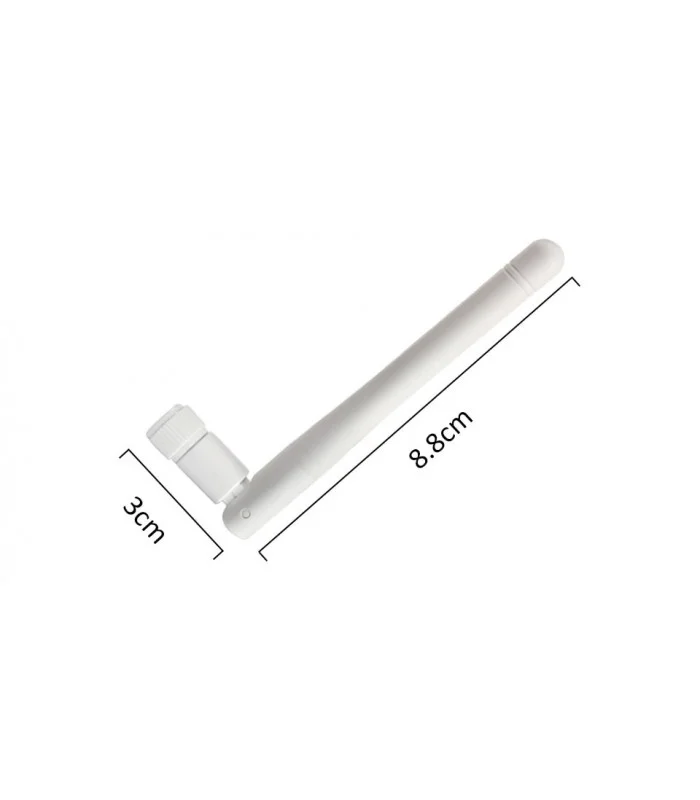

| Dimensions | 12 × 11 × 1 cm |
