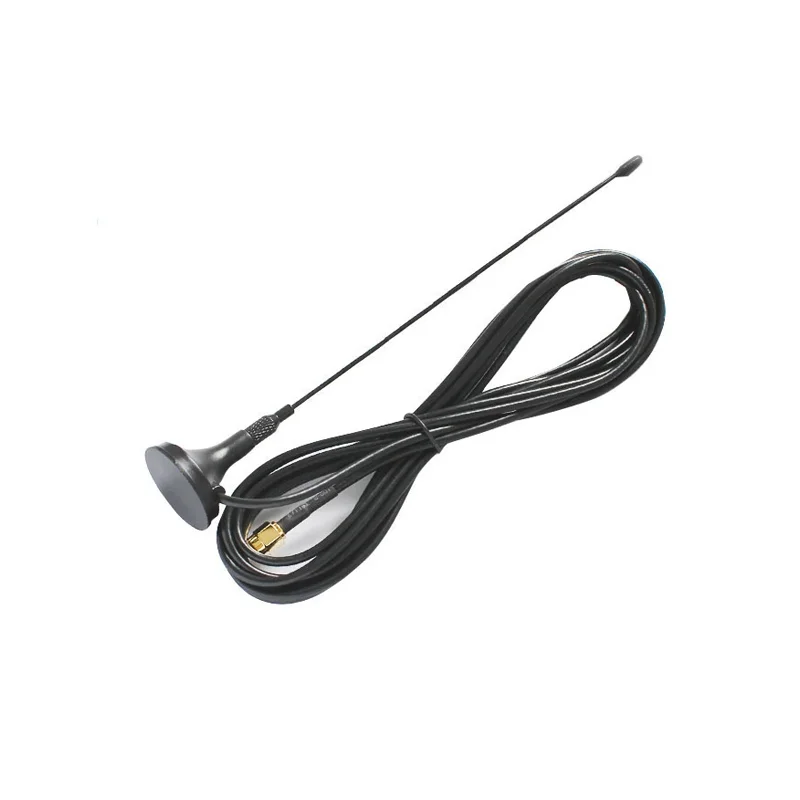

ReadyToSky TX433-XPA100 433MHz SMA Antenna w/ Magnetic Base
The ReadyToSky TX433-XPA100 is a 433MHz omnidirectional antenna designed for ISM band applications, featuring a 3dBi gain, 5W power handling, and a magnetic base for flexible mounting on metal surfaces.
Features
- 433MHz ISM Band Coverage – Optimized for 433MHz wireless communication with a 30MHz bandwidth, ideal for remote control, telemetry, and sensor networks.
- 3dBi Omni-Directional Gain – Provides balanced vertical polarization for reliable signal propagation in all horizontal directions.
- Magnetic Mounting Base – Integrated magnetic base allows for quick, secure, and flexible placement on any ferromagnetic surface.
- Robust SMA-Male Connector – Features a rotatable SMA-J male connector for a secure 50-ohm interface with your transmitter or receiver module.
- High-Power 5W Handling – Supports up to 5W of input power, suitable for high-power transmitters in industrial or long-range applications.
Out of stock
The TX433-XPA100 is a professional-grade 433MHz antenna engineered for reliable performance in the license-free ISM band. Its omnidirectional radiation pattern ensures consistent coverage for systems like wireless sensor networks, remote controls, and industrial telemetry links. The antenna is built with a durable ABS radome and a metal magnetic base, offering both mechanical protection and versatile installation options.
Designed for system integrators and RF engineers, this antenna comes with a 1-meter low-loss feeder cable terminated with a standard SMA-male connector, simplifying integration with common RF modules and development boards. Its electrical specifications, including a VSWR of less than 1.5 and 50-ohm impedance, ensure efficient power transfer and minimal signal reflection for optimized RF performance.
Additional Information
| Weight | 0.027 kg |
|---|---|
| Dimensions | 18 × 5 × 1 cm |
