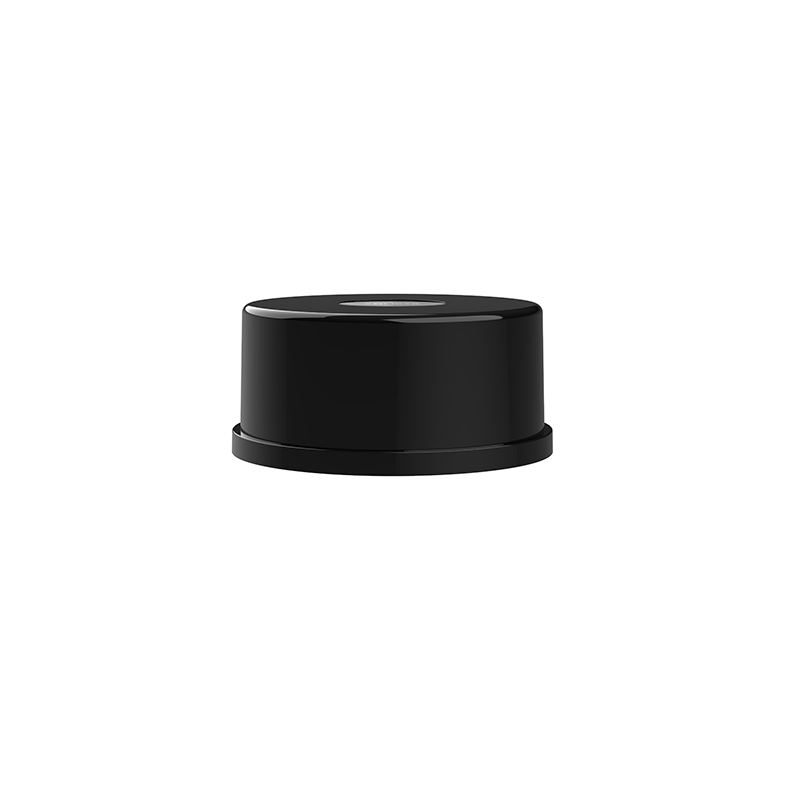

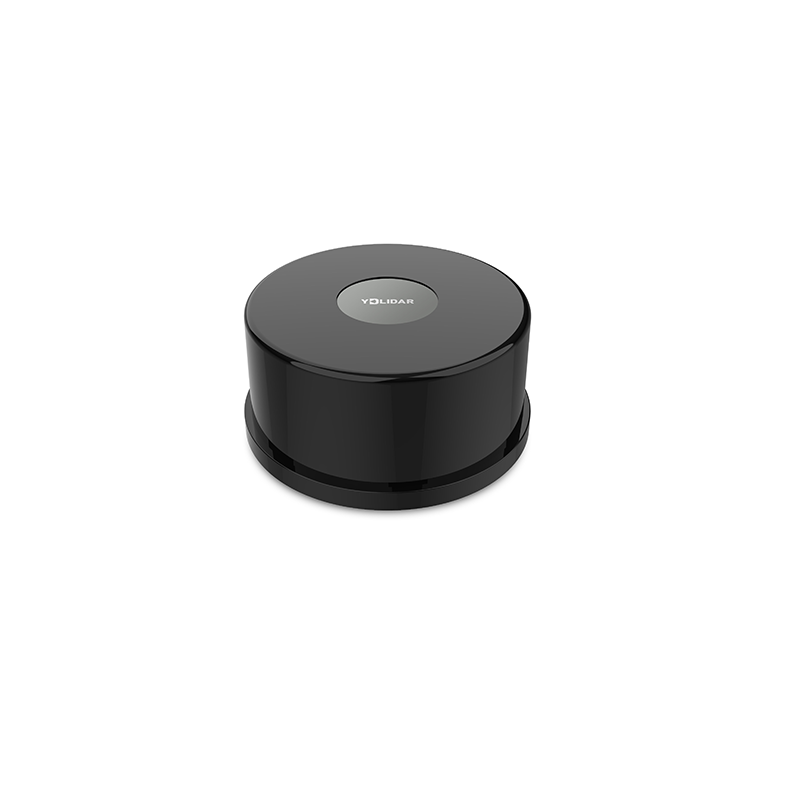

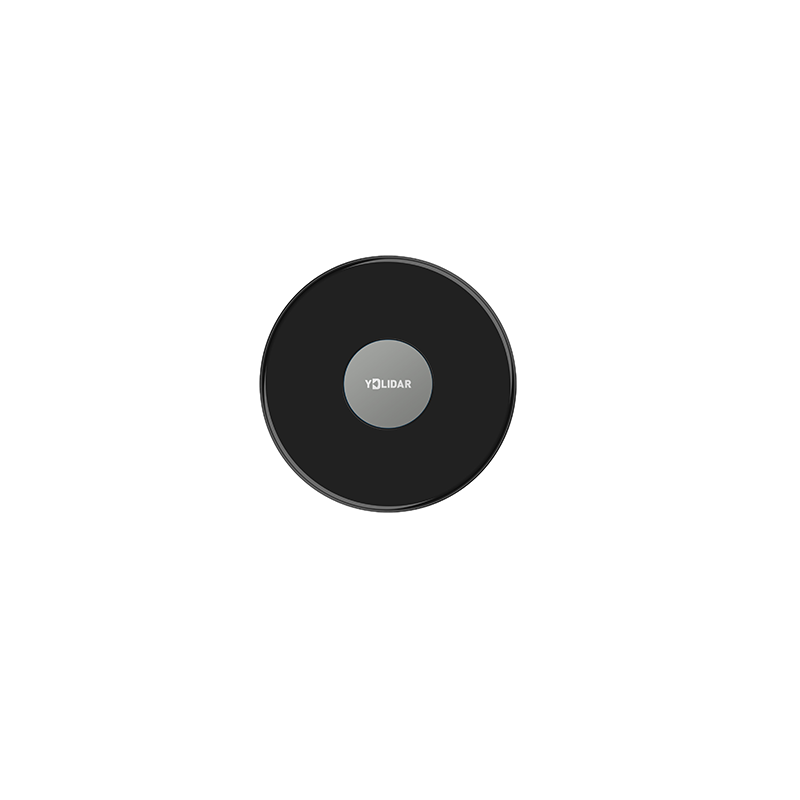

YDLIDAR TG15 Lidar Sensor – 360-degree Laser Range Scanner (15m) with USB Adapter Board
The YDLIDAR TG15 is a 360-degree 2D LiDAR scanner delivering high-frequency, high-precision distance measurements up to 15 meters. It outputs real-time point cloud data via USB Type-C, making it ideal for robotics, SLAM, and mapping applications with microcontrollers and single-board computers.
Features
- 360-degree omnidirectional scanning with a 15-meter ranging distance.
- High-speed 20kHz ranging frequency for dense point cloud data.
- Adjustable motor rotation frequency from 5Hz to 12Hz.
- IP65-rated enclosure for dust and water resistance.
- Class I laser safety classification for eye-safe operation.
Out of stock
The YDLIDAR TG15 is a professional-grade 2D LiDAR sensor engineered for high-performance environmental scanning and mapping. It utilizes a time-of-flight (ToF) laser ranging principle, combined with precision optics and signal processing algorithms, to deliver accurate distance measurements with strong resistance to ambient light interference.
Its 360-degree rotating mechanical head continuously captures angle and distance data, outputting a real-time point cloud that is essential for simultaneous localization and mapping (SLAM), autonomous navigation, and area profiling. The sensor’s robust IP65 enclosure ensures reliable operation in industrial and outdoor environments.
Additional Information
| Weight | 0.14 kg |
|---|---|
| Dimensions | 7 × 7 × 3 cm |
