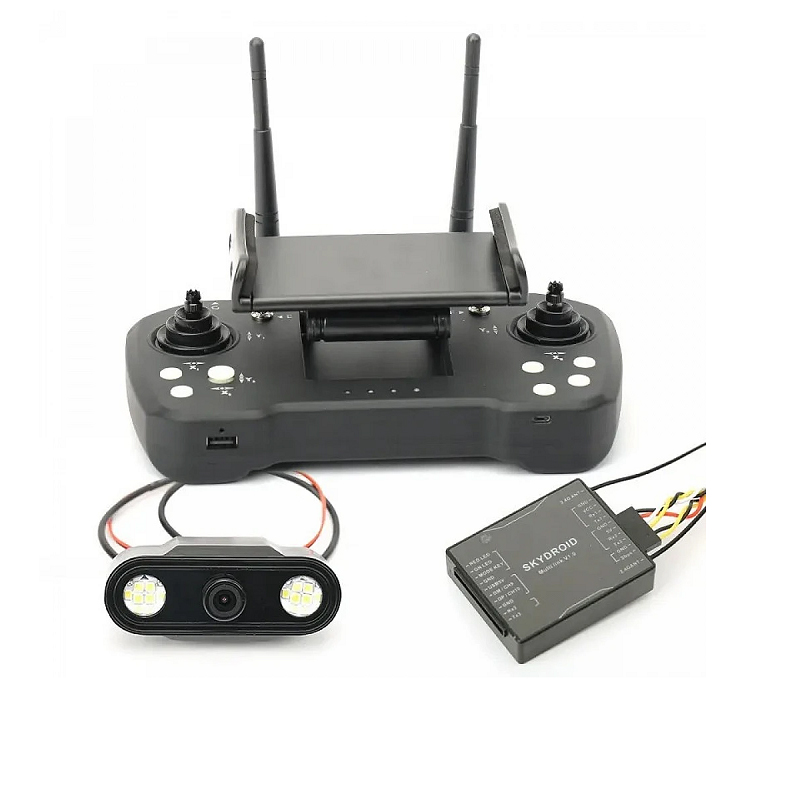

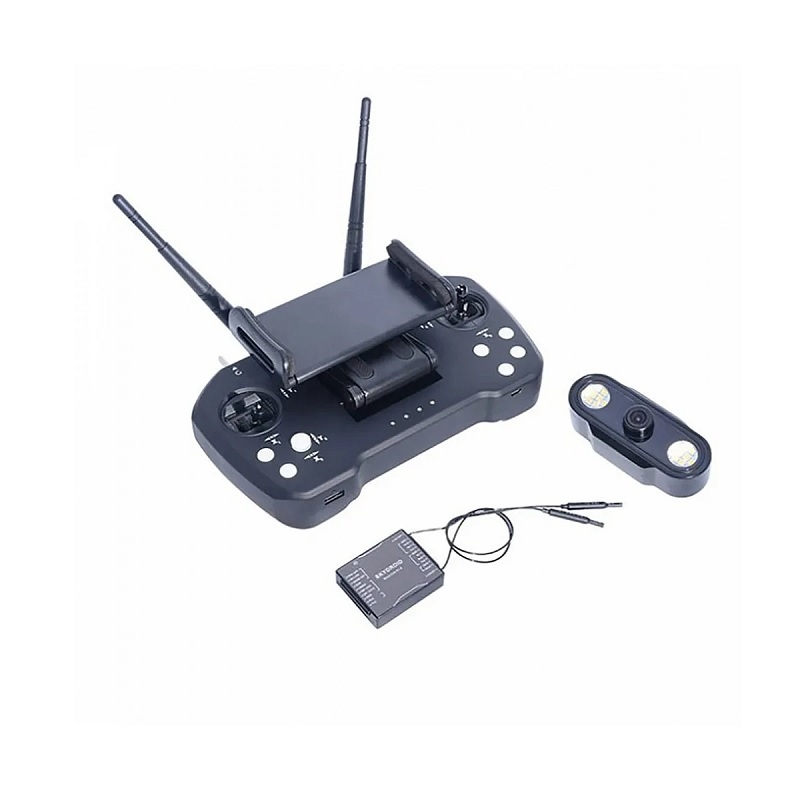

Skydroid T12 2.4GHz 12CH Remote Controller with R12 Receiver and 3IN1 Camera

₹25,709.00 (Inclusive of all taxes)
Out of Stock

The Skydroid T12 is a 12-channel 2.4GHz FHSS radio transmitter system designed for multi-rotor and fixed-wing UAV control. It features an ergonomic design, low power consumption, and includes an R12 receiver and a 3-in-1 camera module for integrated FPV setups.

Features

  • 12-channel 2.4GHz FHSS (Frequency Hopping Spread Spectrum) transmitter for reliable, interference-resistant control.
  • Includes R12 receiver and a 3-in-1 camera module (video transmitter, camera, and antenna) for an integrated FPV solution.
  • Ergonomic controller design with intuitive interface and responsive buttons for extended comfortable operation.
  • Low operating current of 130mA for extended battery life, powered by a 3.7V source via Micro-USB charging.
  • Robust construction suitable for controlling drones, RC planes, helicopters, cars, and boats.

Out of stock

Description

The Skydroid T12 remote controller system provides a comprehensive solution for pilots seeking reliable command over a wide range of RC aircraft and vehicles. Its 2.4GHz FHSS modulation ensures a stable link resistant to interference, critical for maintaining control in crowded RF environments. The integrated system includes the R12 receiver and a 3-in-1 camera, streamlining the setup process for first-person-view (FPV) flying.

Engineered for durability and user comfort, the T12’s chassis is built to withstand the rigors of field use while its interface prioritizes accessibility. The low power consumption design maximizes operational time, making it suitable for extended training sessions or recreational flights. This system is compatible with various multi-rotor and fixed-wing platforms, offering a versatile foundation for both beginner and intermediate UAV enthusiasts.

Key Features

  • Dual-antenna RF system with integrated control algorithms for enhanced signal reliability and full-angle coverage.
  • FHSS (Frequency Hopping Spread Spectrum) technology provides secure, low-latency communication ideal for precise drone maneuvering.
  • Integrated digital video transmission capability supports long-range FPV feeds, with claimed ranges up to 20km under standard definition.
  • Internal data link supports extended telemetry and control range, with specifications indicating up to 30km transmission.
  • Parameter adjustment and configuration accessible via a dedicated mobile application, upgrading traditional OSD to touch-panel control.
  • Ergonomic grip and button layout designed to reduce hand fatigue during prolonged flying sessions.
  • Robust construction using high-quality materials for impact resistance and long-term durability in field conditions.

Applications

  • FPV drone piloting for freestyle and cinematic aerial photography using the integrated 3-in-1 camera system.
  • Precision control of fixed-wing RC aircraft and gliders requiring stable, long-range radio links.
  • Operating scale RC helicopters where multi-channel control for collective pitch, throttle, and cyclic is essential.
  • Ground vehicle control for RC cars and trucks where reliable signal penetration is needed.
  • Surface vehicle applications such as RC boats, leveraging the system's resistance to signal reflection over water.

Technical Specifications

Model NameT12
Operating Voltage3.7V
Working Current130mA
Modulation MethodFHSS
Frequency Range2.400 - 2.4833 GHz
Number of Channels12
Charging PortMicro-USB
Controller Length23 mm
Controller Width16 mm
Controller Weight560 g
Shipping Weight1.158 kg
Shipping Dimensions25 x 19 x 10 cm

Frequently Asked Questions

What is the operating voltage and how do I charge the Skydroid T12 transmitter?

The Skydroid T12 transmitter operates on 3.7V and includes a Micro-USB port for charging. Ensure you use a standard 5V USB power source, such as a wall adapter or computer port, to safely recharge the internal battery. The low 130mA working current contributes to extended operational time between charges.

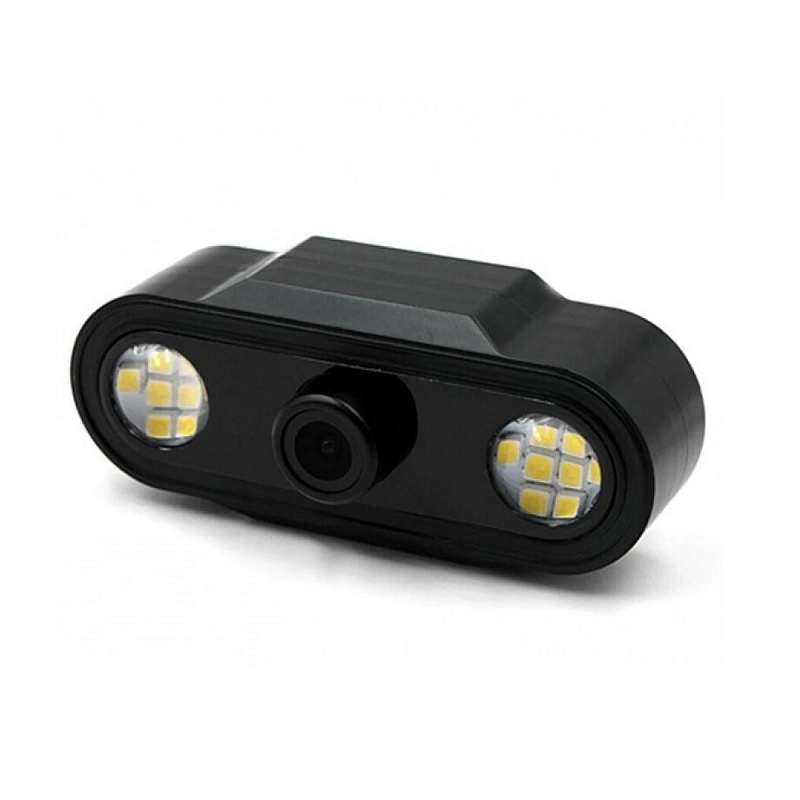

What does the '3IN1 Camera' included in the package consist of?

The included 3IN1 Camera is an integrated FPV module that combines a camera, video transmitter (VTX), and antenna into a single unit. This simplifies installation on your drone or aircraft, providing a complete video capture and transmission solution for first-person-view flying without needing to source separate components.

Is the Skydroid T12 system compatible with other brands of receivers or drones?

The T12 transmitter is designed to work specifically with its paired R12 receiver using the 2.4GHz FHSS protocol. It is not typically compatible with receivers from other brands like FrSky, FlySky, or ExpressLRS unless they use the same proprietary protocol. It is best used as a complete system with the included components.

What is the realistic control range for the T12 and R12 system?

While specifications mention data links up to 30km, realistic control range in typical environments (with line of sight and minimal interference) is substantially less. For reliable operation, expect effective control within several hundred meters to a few kilometers, heavily dependent on antenna placement, environmental obstacles, and RF noise.

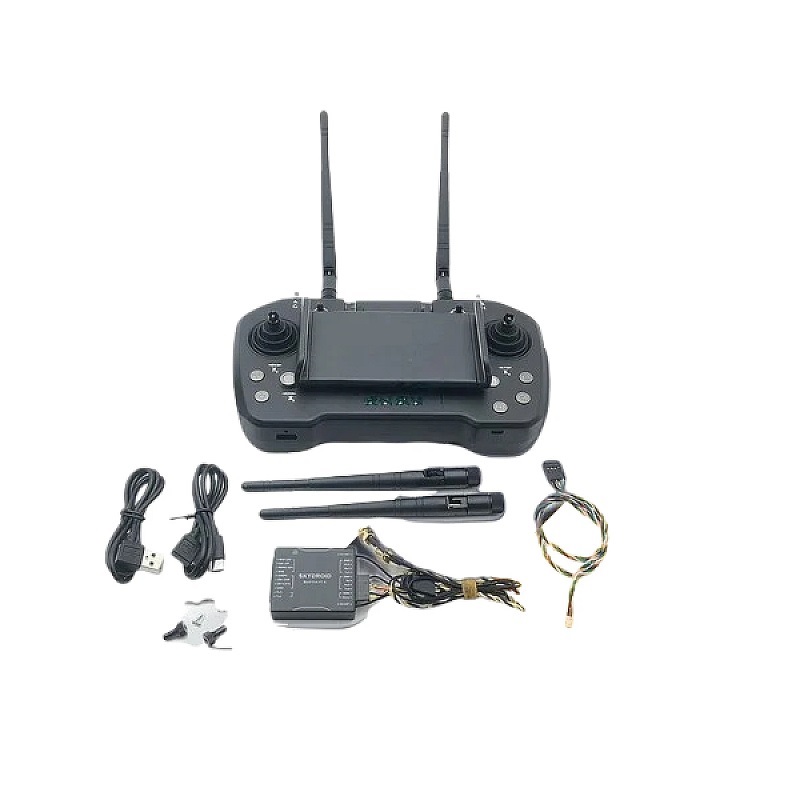

Package Includes

  • 1 x Skydroid T12 2.4GHz 12CH Transmitter
  • 1 x R12 Receiver with Antenna
  • 1 x 3IN1 Camera (VTX/Camera/Antenna Module)
  • 1 x Connecting Cable Set

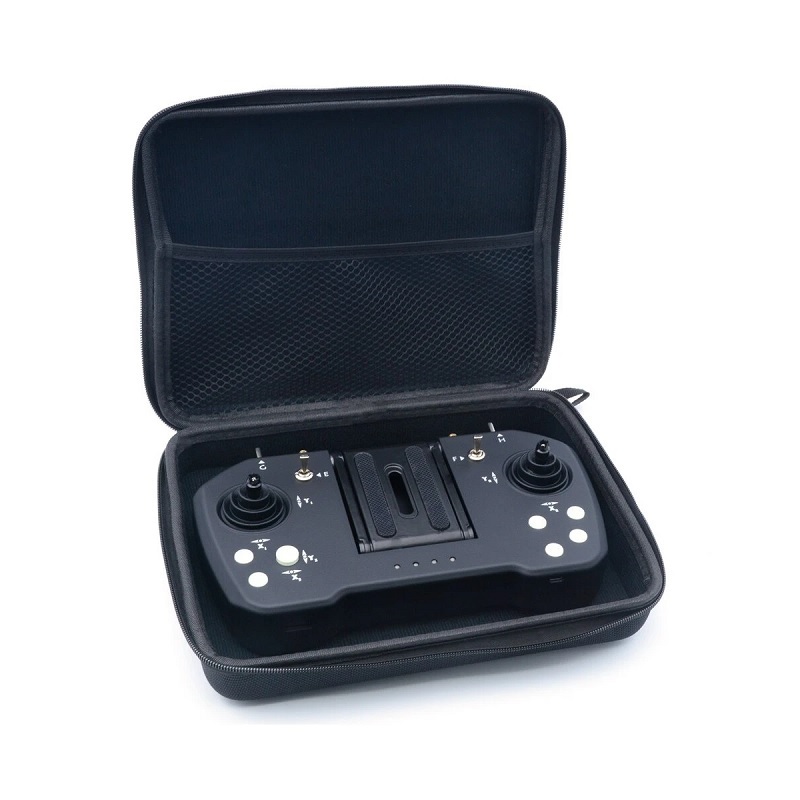

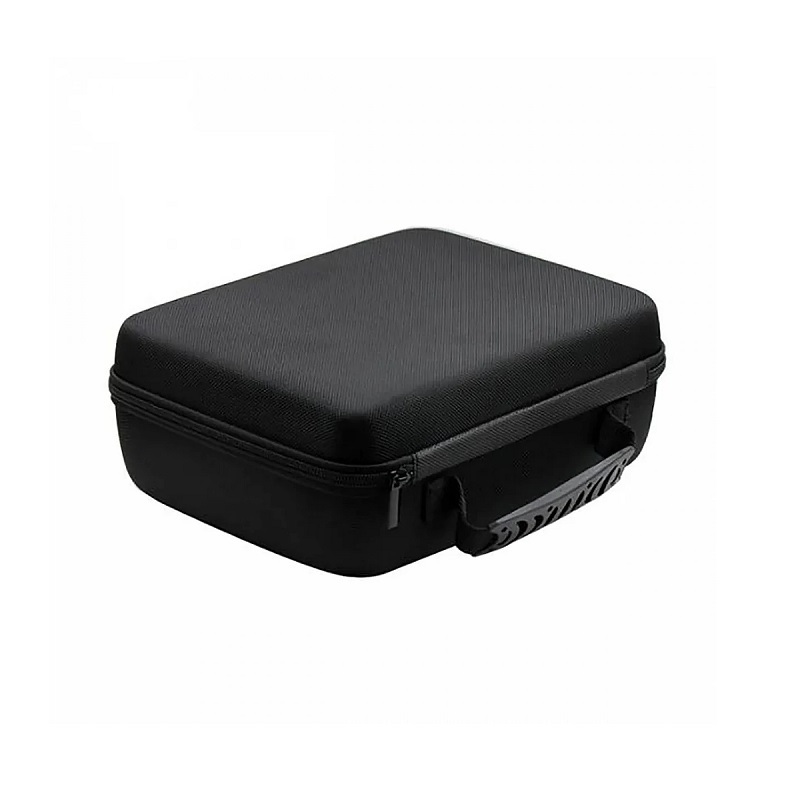

  • 1 x Carrying Case

Additional Information

Weight 0.56 kg
Dimensions 2.3 × 1.6 cm
