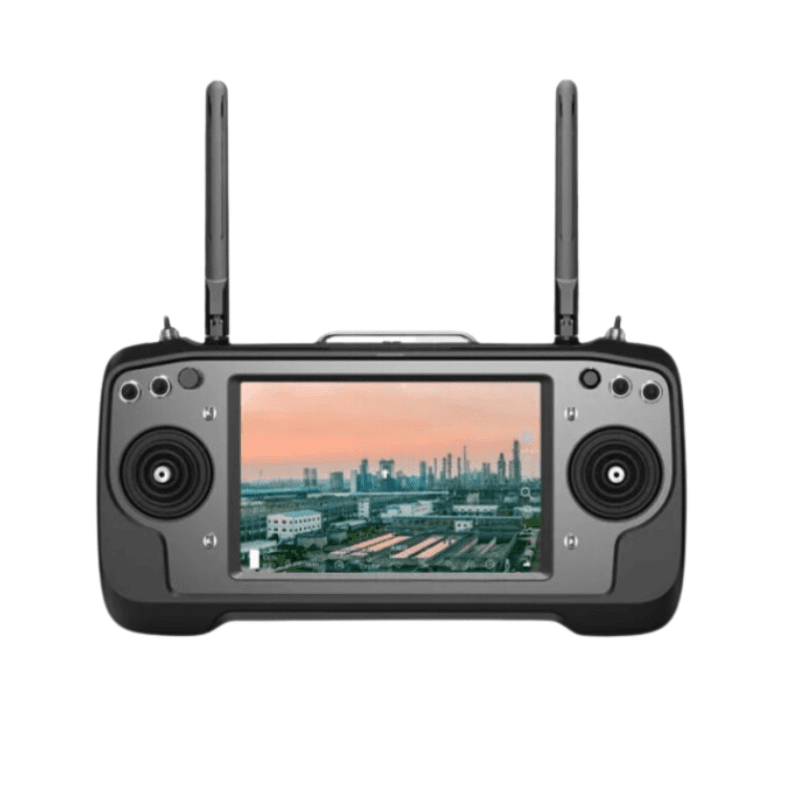

SIYI MK32E Enterprise Handheld Ground Station Smart Drone Controller HDMI Combo

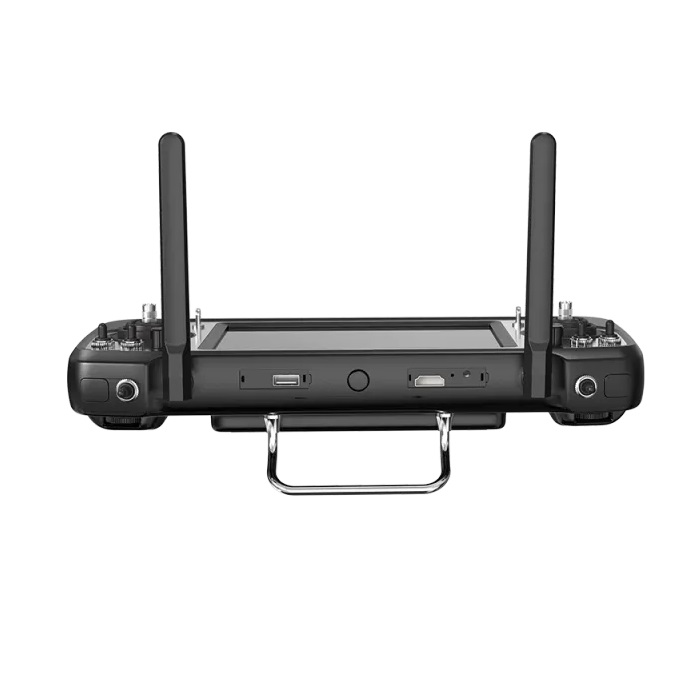

SIYI MK32E Enterprise Handheld Ground Station Smart Drone Controller HDMI Combo - Image 2

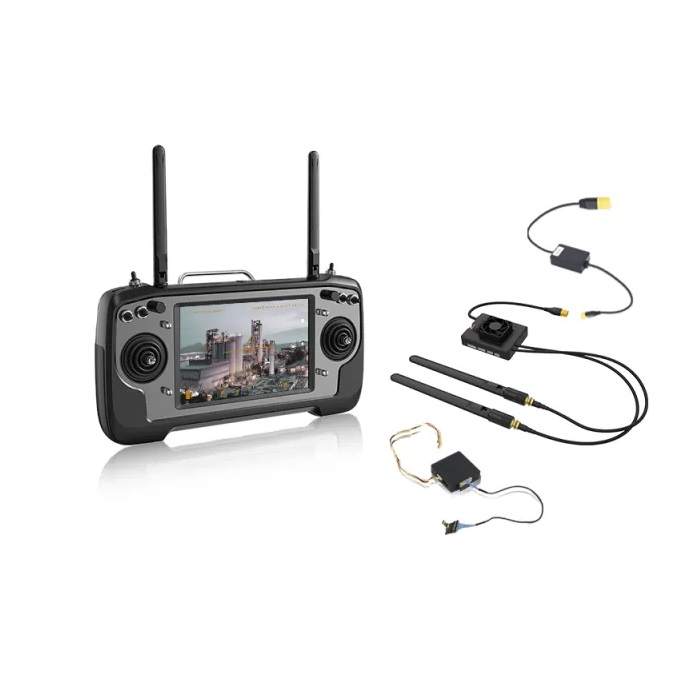

SIYI MK32E Enterprise Handheld Ground Station Smart Drone Controller HDMI Combo - Image 3
SKU: DRFC-3403
📋 GST Invoice Available

SIYI MK32E Enterprise Handheld Ground Station Smart Drone Controller HDMI Combo

₹99,519.00 (Inclusive of all taxes)
Out of Stock

The SIYI MK32E Enterprise Handheld Ground Station is a professional-grade smart controller designed for long-range drone operations with PX4 and ArduPilot flight controllers. It integrates a 5.5″ 1080p HD touchscreen, HDMI output, and a high-capacity 2S Li-ion battery for extended field use.

Features

  • 15 km maximum transmission range in optimal conditions with high-gain antennas.
  • 5.5-inch 1080p HD touchscreen with 1000 cd/m² brightness for outdoor visibility.
  • Android OS 9.0 platform powered by a Qualcomm 8-core CPU for responsive control.
  • HDMI output combo for connecting external monitors or recording devices.
  • IP53-rated construction for dust and water splash resistance in field environments.

Out of stock

Description

The SIYI MK32E Enterprise Handheld Ground Station combines a high-performance radio transmitter with an integrated smart monitor, creating a comprehensive control hub for professional UAV pilots. Its architecture is built around a robust Qualcomm 8-core processor running Android OS 9.0, ensuring low-latency command transmission and smooth operation of mission planning software.

Engineered for demanding field operations, the unit features an IP53 ingress protection rating, safeguarding its internal electronics from dust and light water exposure. The integrated 10200mAh 2S Li-ion battery provides substantial operational endurance, supporting extended flight sessions without the need for external power sources.

Key Features

  • High-brightness 5.5" 1080p LCD touchscreen ensures clear visibility in direct sunlight.
  • Multi-antenna system with omni-directional and optional long-range directional antennas for robust link stability.
  • HDMI video output port enables real-time feed mirroring to larger displays or capture devices.
  • 16 physical and communication channels provide extensive control and telemetry data bandwidth.
  • Direct compatibility with open-source flight controllers like PX4 and ArduPilot, including the SIYI N7.
  • Durable, ergonomic handheld design built to withstand professional use in various environmental conditions.
  • Large-capacity internal battery minimizes downtime and supports all-day operation with proper power management.

Applications

  • Professional mapping, surveying, and inspection drones utilizing PX4 or ArduPilot autopilots.
  • Long-range FPV and BVLOS (Beyond Visual Line of Sight) operations requiring stable control and HD video downlink.
  • Cinematography and broadcast drone setups where HDMI output is needed for director monitors or recording.
  • Search and rescue (SAR) and public safety drone missions demanding reliable control in varied environmental conditions.
  • Agricultural and environmental monitoring drones where extended field endurance and clear telemetry display are critical.

Technical Specifications

Item TypeController
Number of Channels16
Max Transmission Range15 km (Unobstructed)
Screen7-inch High Definition and High Brightness LCD Touchscreen
Battery10200 mAh 7.4V 2S Li-ion, 75.48 Wh
Antenna Gain (Omni)5 dBi
Antenna Gain (Long Range)11 dBi
Antenna Gain (Optional Lollipop)5 dBi
Operating SystemAndroid OS 9.0
ProcessorQualcomm 8-Core CPU
Video Latency180ms
Ingress ProtectionIP53
Video OutputHDMI

Frequently Asked Questions

What flight controllers is the SIYI MK32E compatible with?

The MK32E is directly compatible with open-source flight controllers running PX4 and ArduPilot firmware, including the SIYI N7. It provides full telemetry and control channel integration for these platforms.

Does the controller have video output for external monitors?

Yes, the HDMI Combo package includes a ground HDMI output port. This allows you to mirror the live video feed to larger external monitors, recording devices, or broadcast equipment in real-time.

What is the battery life and capacity of the MK32E?

The unit is powered by an integrated 10200mAh 2S Li-ion battery (75.48 Wh). Actual operational life depends on screen brightness and transmission power settings, but it is designed to support extended field operations.

What does the IP53 rating mean for field use?

An IP53 rating indicates the controller is protected against limited dust ingress (level 5) and water sprays at up to 60 degrees from vertical (level 3). This makes it suitable for use in dusty environments and resistant to light rain, but it is not waterproof or submersible.

Package Includes

  • 1 x SIYI MK32E Enterprise Handheld Ground Station Smart Drone Controller HDMI Combo

Additional Information

Weight 2.613 kg
Dimensions 34 × 23 × 15 cm
