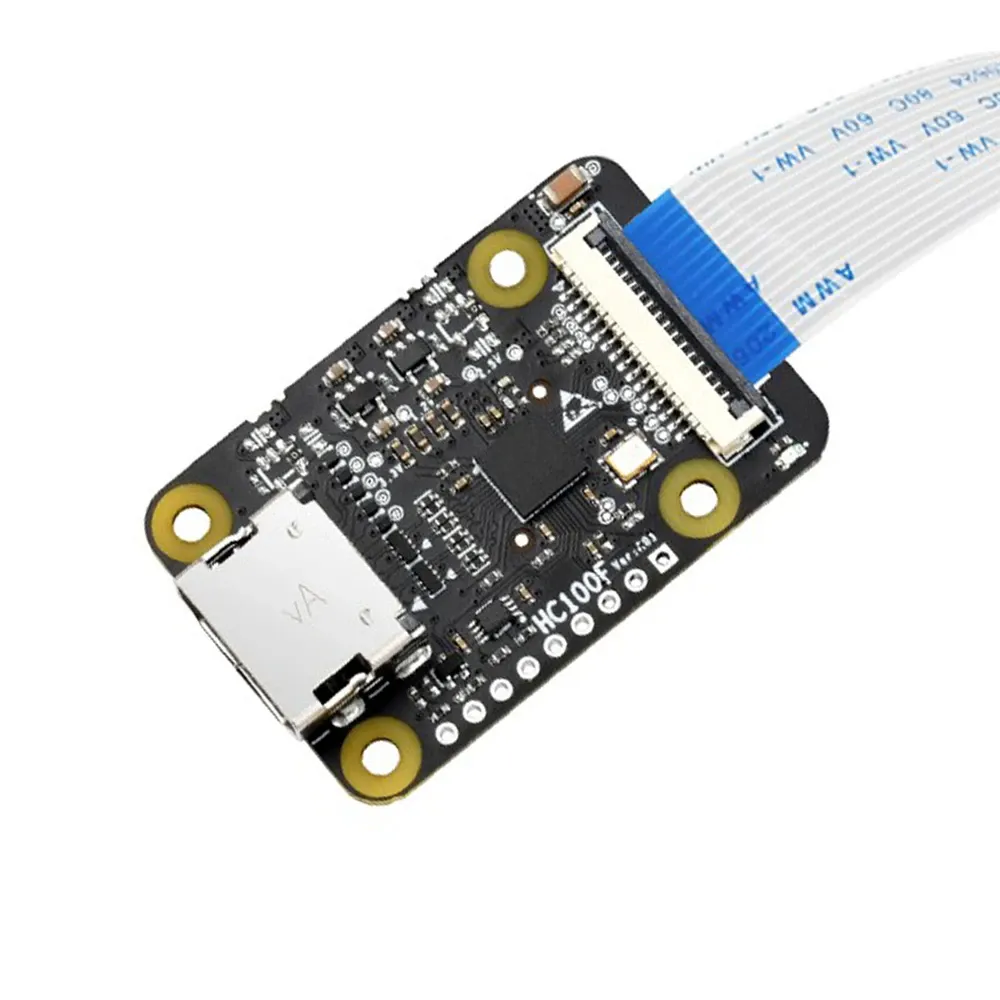

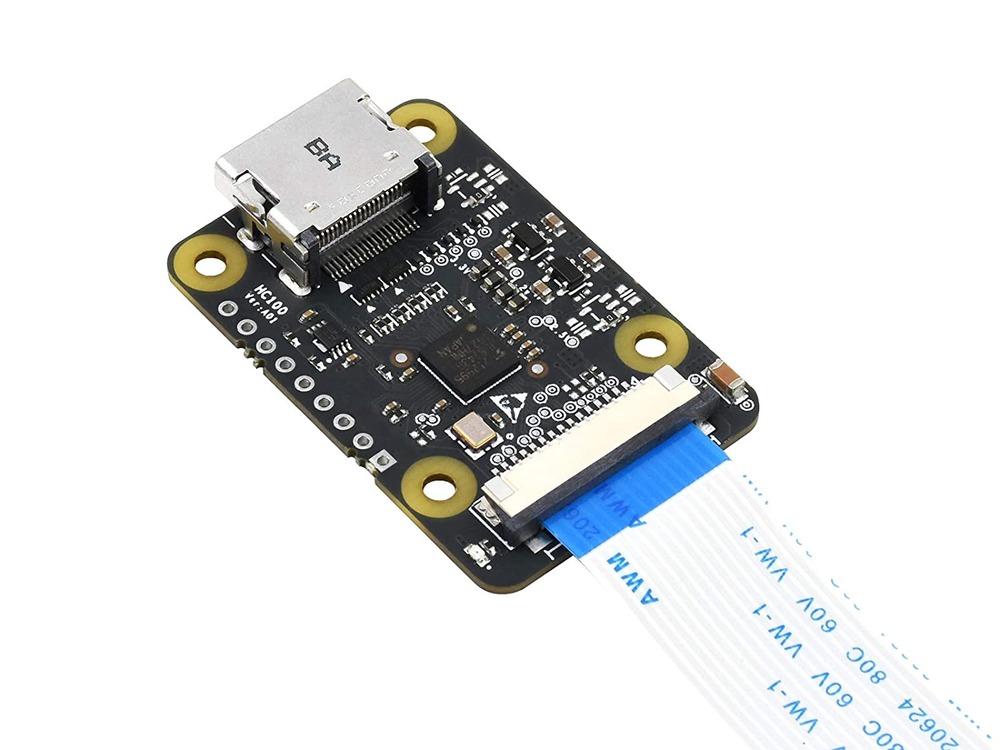

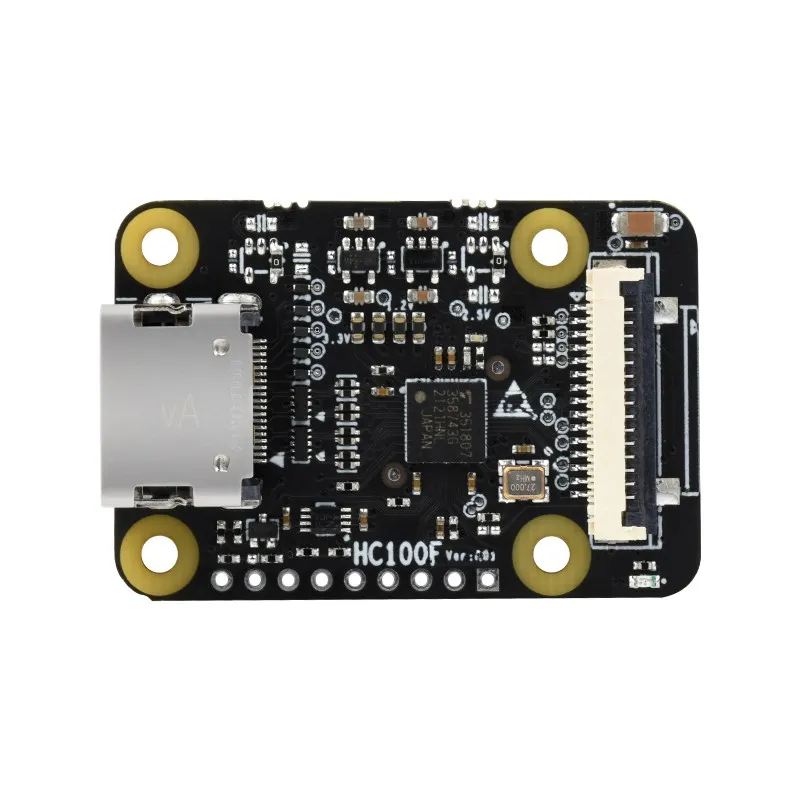

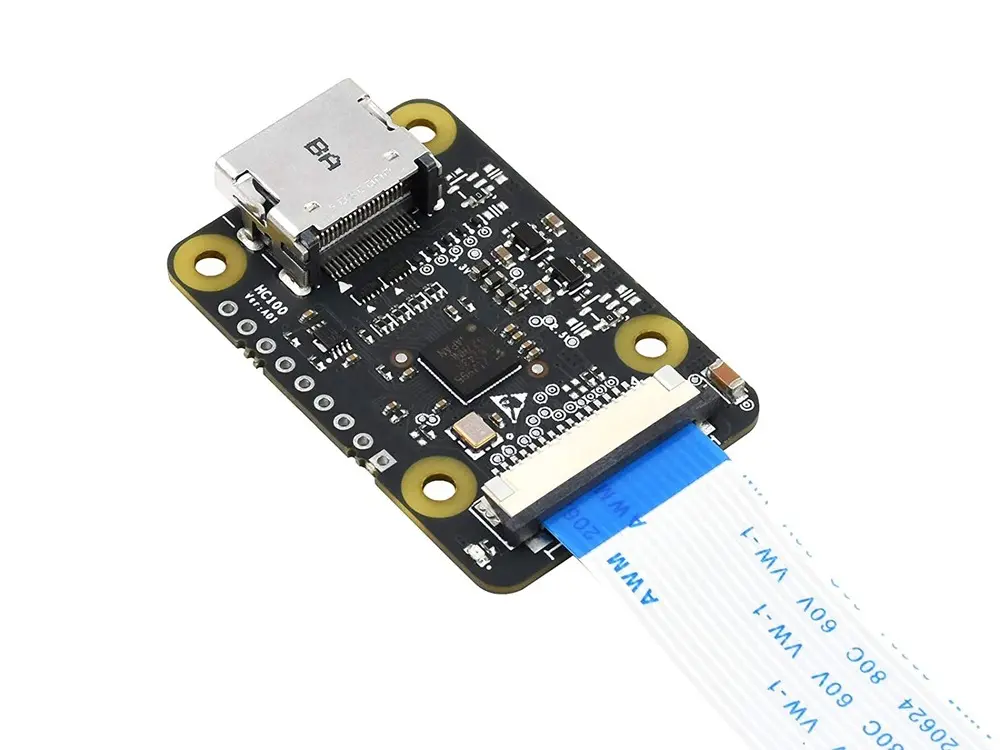

Waveshare HDMI to CSI-2 Adapter for Raspberry Pi (1080p30)
This Waveshare HDMI to CSI-2 adapter allows you to connect an HDMI video source to the camera input of your Raspberry Pi, enabling video capture at resolutions up to 1080p at 30 frames per second. It integrates the TC358743XBG controller to seamlessly convert HDMI 1.4 video and audio signals into a 2-lane MIPI CSI-2 stream for Raspberry Pi OS compatibility.
Features
- Converts HDMI 1.4 input to 2-lane MIPI CSI-2 output for Raspberry Pi.
- Supports video resolutions up to 1080p at 30fps from HDMI sources.
- Integrated TC358743XBG bridge chip ensures reliable signal conversion.
- Provides I2S audio output for integrated sound processing.
- Seamlessly compatible with Raspberry Pi OS for plug-and-play functionality.
Out of stock
The Waveshare HDMI to CSI-2 Adapter is engineered to bridge the gap between standard HDMI video sources and the camera input of Raspberry Pi boards. Utilizing the high-performance TC358743XBG controller, this adapter efficiently transforms HDMI 1.4 video signals, including RGB888 color data, into a 2-lane MIPI CSI-2 stream. This allows your Raspberry Pi to interpret an HDMI input as if it were a native camera module, opening up a wide range of video capture and processing possibilities.
Beyond just video, the adapter also handles HDMI audio, converting it into an I2S audio output in LPCM format. This comprehensive signal conversion makes it an ideal solution for projects requiring both video and synchronized audio input from HDMI devices. Designed for ease of use, it operates on a standard 3.3V supply and is fully compatible with Raspberry Pi OS, ensuring a straightforward integration into your embedded systems.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 9 × 9 × 1 cm |
