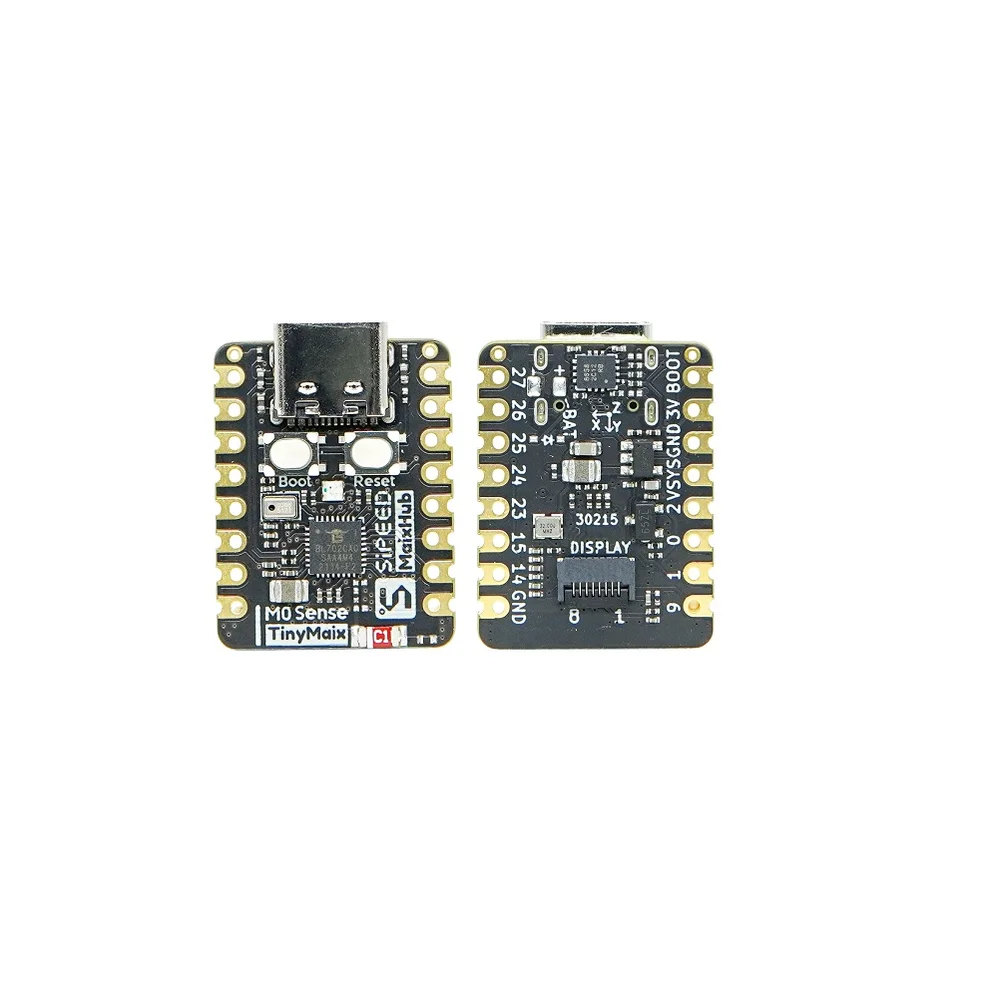

Sipeed M0sense BL702 RISC-V IoT Board w/ LCD
The Sipeed M0sense is a compact RISC-V IoT development board based on the Bouffalo Lab BL702 SoC, featuring Bluetooth 5.0 connectivity and an integrated FPC connector for an optional 0.68-inch LCD screen. It is powered via USB-C and supports firmware development in Arduino IDE and the TinyMaix inference framework for edge machine learning.
Features
- Powered by the Bouffalo Lab BL702 32-bit RISC-V processor with FPU, running at up to 144MHz for efficient edge computing tasks.
- Integrates Bluetooth 5.0 (BLE) for low-power wireless communication, ideal for smart home and sensor network applications.

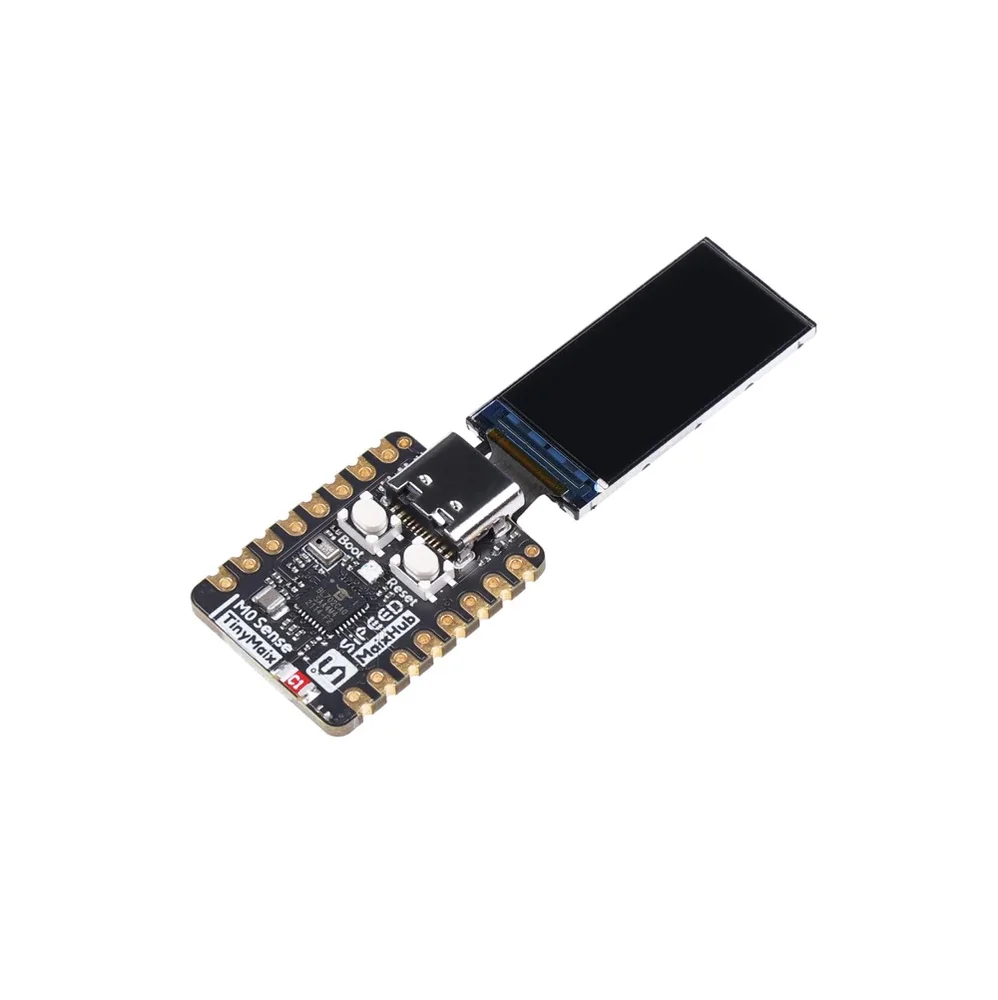

- Features an 8-pin FPC connector for attaching an optional 0.68-inch 80×160 resolution LCD screen for human-machine interface projects.
- Onboard sensors include a six-axis IMU (accelerometer & gyroscope) and a microphone, enabling motion and audio sensing capabilities.
- Provides substantial memory for embedded applications with 132KB RAM, 192KB ROM, and 512KB of user flash storage.
Out of stock
The Sipeed M0sense is a feature-rich development platform built around the Bouffalo Lab BL702, a RISC-V core microcontroller with integrated Bluetooth Low Energy 5.0. Its compact thumb-sized form factor houses a comprehensive suite of peripherals including a six-axis inertial measurement unit (IMU), a digital microphone, and a programmable RGB LED, making it a versatile hub for interactive IoT prototypes.
Designed for edge AI and machine learning, the board is fully compatible with the TinyMaix neural network inference framework, allowing developers to deploy lightweight models directly on the device. The dedicated FPC LCD interface enables visual feedback and user interaction, supporting optional displays for complete standalone applications. Power is supplied cleanly through a USB Type-C port, which also serves as the primary firmware programming and serial communication channel.
Additional Information
| Weight | 0.017 kg |
|---|---|
| Dimensions | 8 × 5 × 2 cm |
