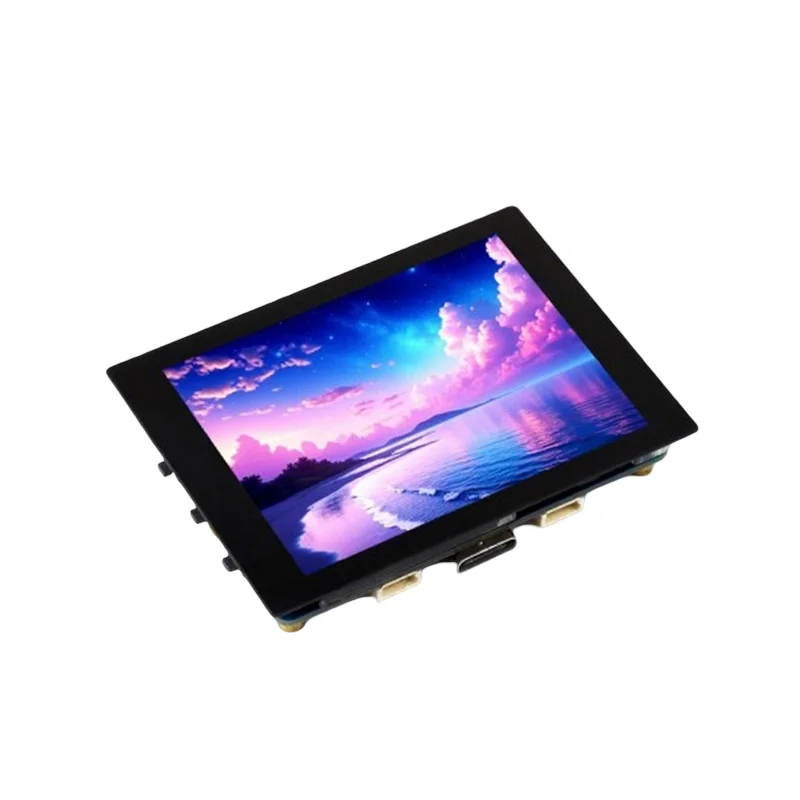

Waveshare RP2350 2.41-Inch AMOLED Touch Display Development Board
The Waveshare RP2350 Development Board integrates a high-resolution 2.41-inch AMOLED capacitive touch display with the powerful dual-core RP2350B microcontroller, offering a premium platform for embedded GUI and IoT applications. It supports development with C/C++, MicroPython, and the Arduino IDE.
Features
- High-Resolution AMOLED Display: 2.41-inch capacitive touch panel with 450 x 600 pixels and 16.7M colors for vibrant, sharp visuals.
- Dual-Core RP2350B MCU: Features dual ARM Cortex-M33 cores (or dual Hazard3 RISC-V) for robust processing, clockable up to 150 MHz.
- Ample Onboard Memory: Equipped with 520KB SRAM, 16MB Flash, and 2MB PSRAM for handling complex graphics and application data.
- Integrated Motion Sensing: Onboard 6-axis IMU (accelerometer + gyroscope) and RTC chip enable motion-aware and time-keeping applications.
- Versatile Connectivity: USB 1.1 host/device support via Type-C connector and extensive GPIO for peripheral expansion.
Out of stock

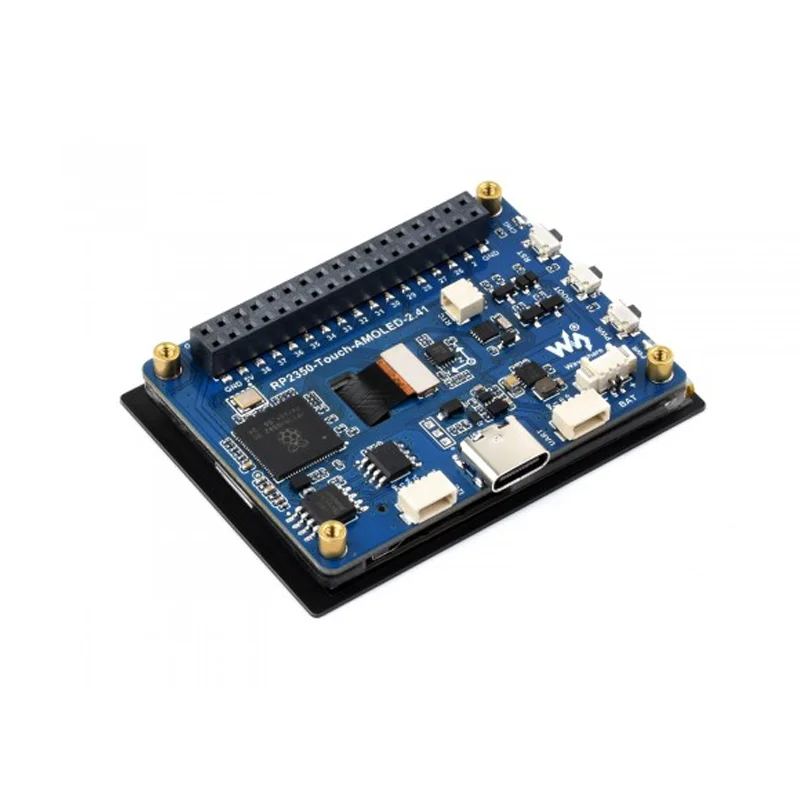

The Waveshare RP2350 AMOLED Touch Display Development Board is engineered for developers requiring a high-performance, display-centric embedded platform. Its core is the Raspberry Pi-designed RP2350B microcontroller, which combines dual ARM Cortex-M33 cores with a dual Hazard3 RISC-V architecture, providing flexible processing power for real-time applications and graphical user interfaces.
The board’s standout feature is its 2.41-inch AMOLED display, driven via a QSPI interface with an RM690B0 driver and FT6336 touch controller, delivering exceptional color depth and responsive capacitive touch. This is complemented by generous memory resources—16MB Flash for firmware, 520KB SRAM, and 2MB PSRAM for graphics buffering—enabling smooth operation of sophisticated GUIs. The integrated 6-axis IMU and RTC further expand its utility for portable, motion-sensitive, and time-based IoT projects.
Additional Information
| Weight | 0.024 kg |
|---|---|
| Dimensions | 6 × 4.5 cm |
