Vishay VCNL4200 High Sensitivity Long Distance Proximity & Ambient Light Sensor (ALS) Module
The Vishay VCNL4200 is a fully integrated, high-sensitivity proximity and ambient light sensor module combining a PS, ALS, and 940 nm IRED in a single CMOS chip. It features I2C digital output for easy integration with microcontrollers like Arduino, Raspberry Pi, ESP32, and STM32 for presence detection and lighting control applications.
Features
- Integrated High-Sensitivity Proximity Sensor (PS) with up to 1500 mm range
- High-Resolution 16-bit Ambient Light Sensor (ALS) with 0.003 lx resolution
- Single-chip CMOS design with built-in photodiodes, amplifiers, and ADC circuits
- I2C digital interface with 1.8V to 3.6V logic compatibility
- Filtronâ„¢ technology for robust ambient and background light cancellation
Out of stock

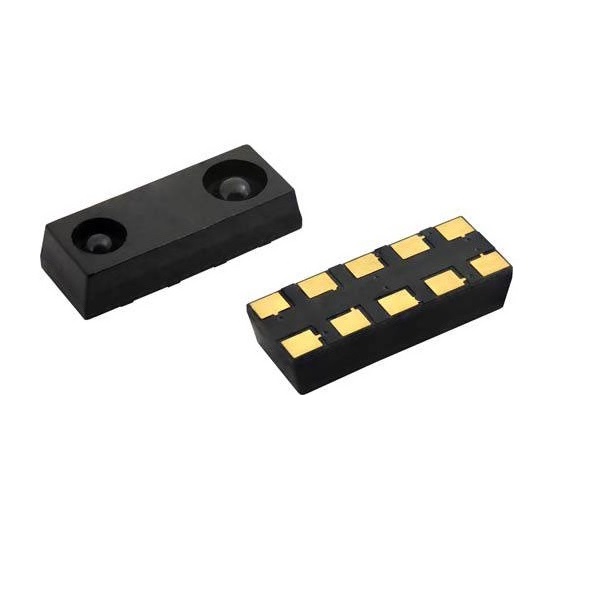

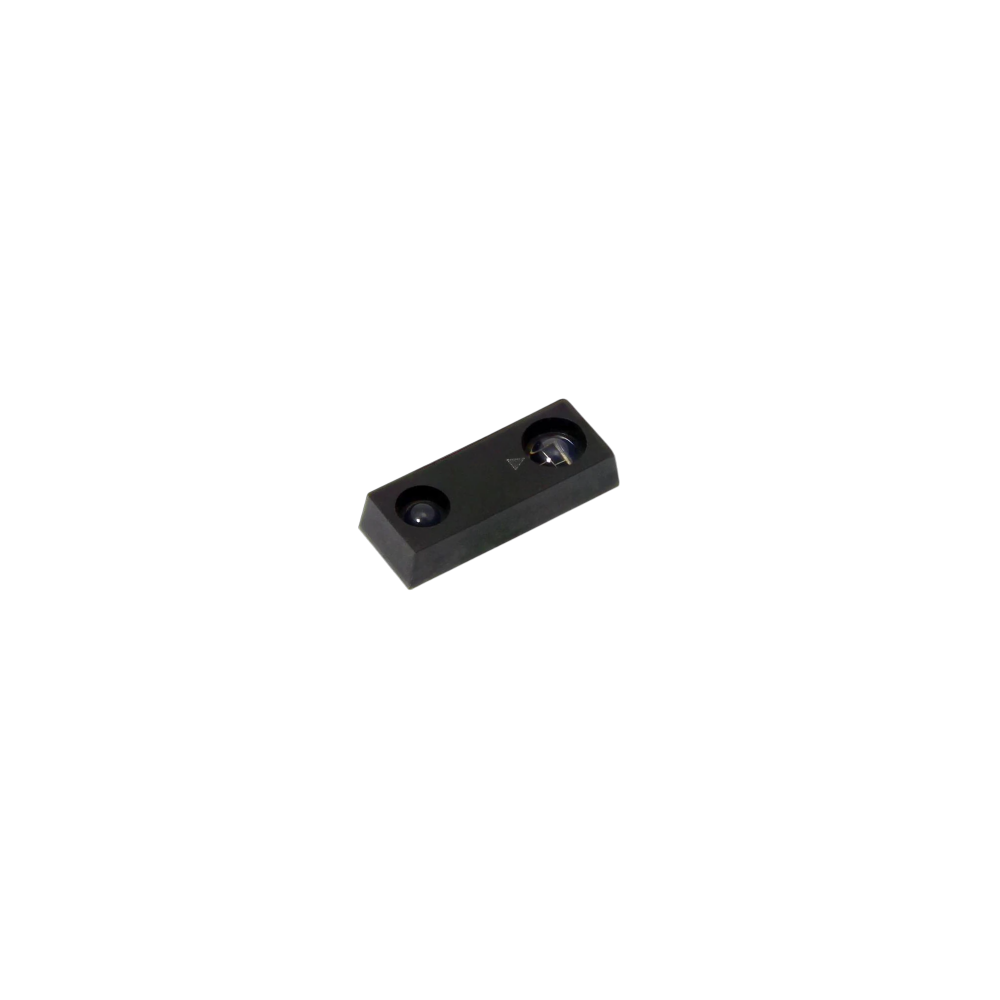

The VCNL4200 integrates a long-distance infrared proximity sensor and a high-resolution ambient light sensor into a single, compact surface-mount package. Utilizing a 940 nm IRED and advanced CMOS process, it provides precise digital measurements for both proximity (up to 1.5 meters) and ambient light intensity (0.003 to 1573 lux). Its parallel operation structure allows simultaneous PS and ALS readings without interference.
Designed for reliability, the module incorporates Filtronâ„¢ technology to effectively cancel out background light noise, ensuring stable performance even behind dark or high-transparency lenses. The digital I2C output simplifies connection to 3.3V or 5V logic systems, making it suitable for a wide range of automated and energy-saving applications.
Additional Information
| Weight | 0.004 kg |
|---|---|
| Dimensions | 1 × 1 × 1 cm |
