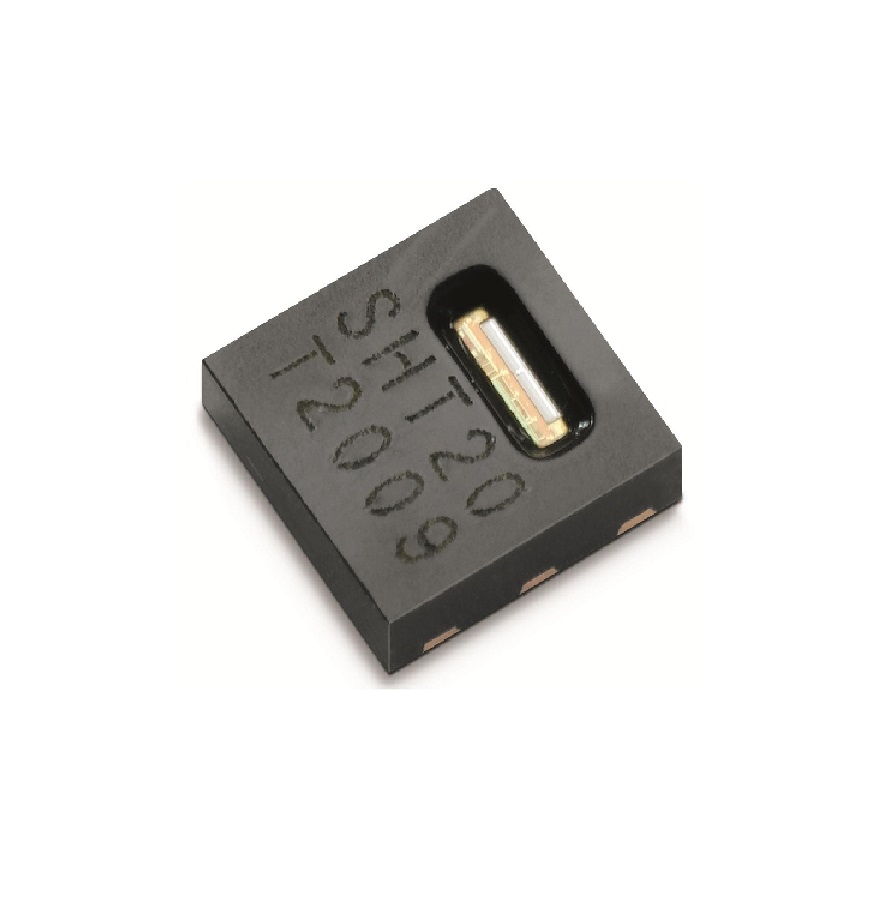

Sensirion SHT20 Humidity & Temperature Sensor, 0 to 100%RH, −40°C to +125°C, ±3%RH, I²C Interface, DFN Package
The Sensirion SHT20 is a fully calibrated digital humidity and temperature sensor with an I²C interface, designed for seamless integration into 3.3V systems like Arduino, Raspberry Pi, ESP32, and industrial data loggers. It provides accurate environmental monitoring across a wide operating range.
Features
- High-accuracy digital sensor with ±3% RH and ±0.3°C typical performance.
- I²C digital interface for direct connection to microcontrollers and SBCs.
- Wide operating range from 0 to 100% RH and -40°C to +125°C.
- Ultra-low power consumption ideal for battery-powered and portable devices.
- DFN (Dual Flat No-lead) SMD package suitable for reflow soldering.
Out of stock
The SHT20 from Sensirion integrates a capacitive humidity sensor and a band-gap temperature sensor on a single CMOSens® chip, providing calibrated, linearized digital outputs. The sensor’s advanced analog and digital signal processing ensures excellent long-term stability and minimal drift.
Housed in a compact, reflow-solderable DFN package, the SHT20 is built for high-volume assembly and reliable operation in diverse environments, from HVAC systems to industrial monitoring. Its low voltage operation (2.1V to 3.6V) makes it compatible with modern 3.3V logic systems.
Additional Information
| Weight | 0.02 kg |
|---|---|
| Dimensions | 1.1 × 0.9 × 0.5 cm |
