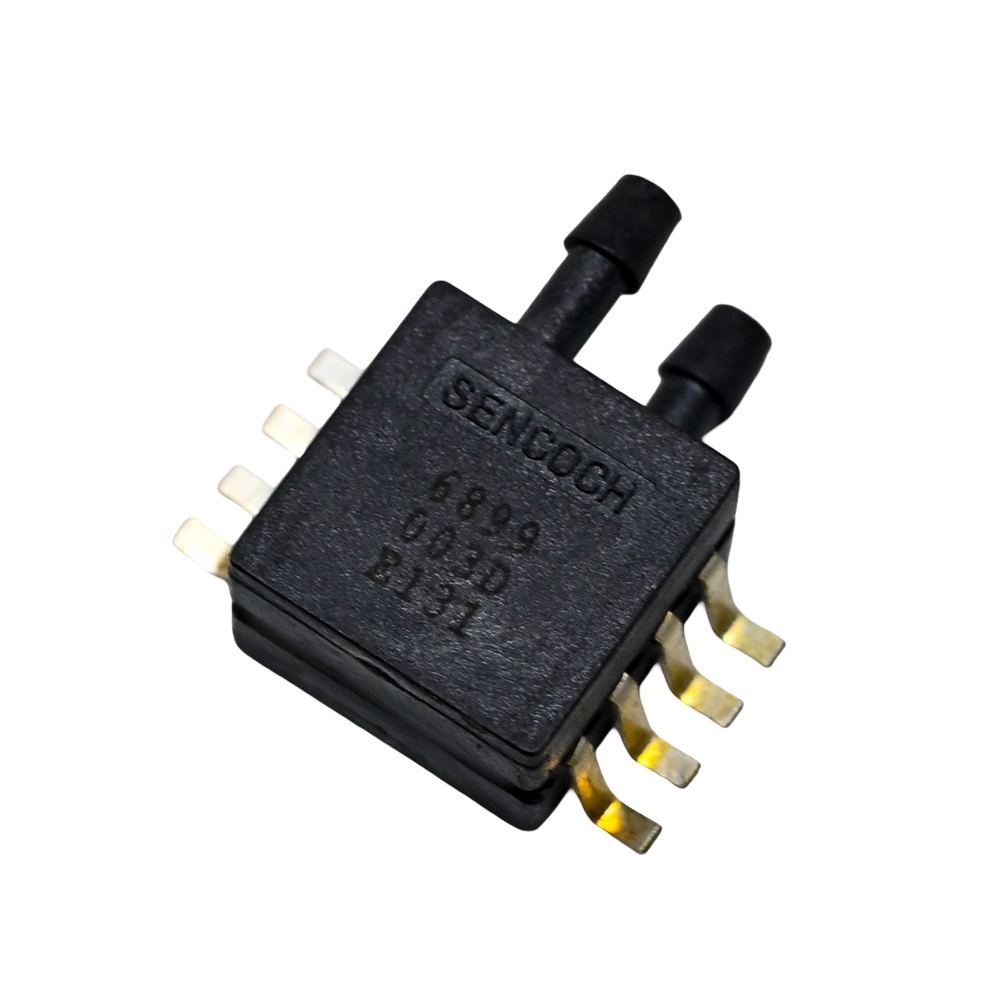

Sencoch GZP6899D002KPW MEMS Pressure Sensor, SOP-8 Package, I2C Interface

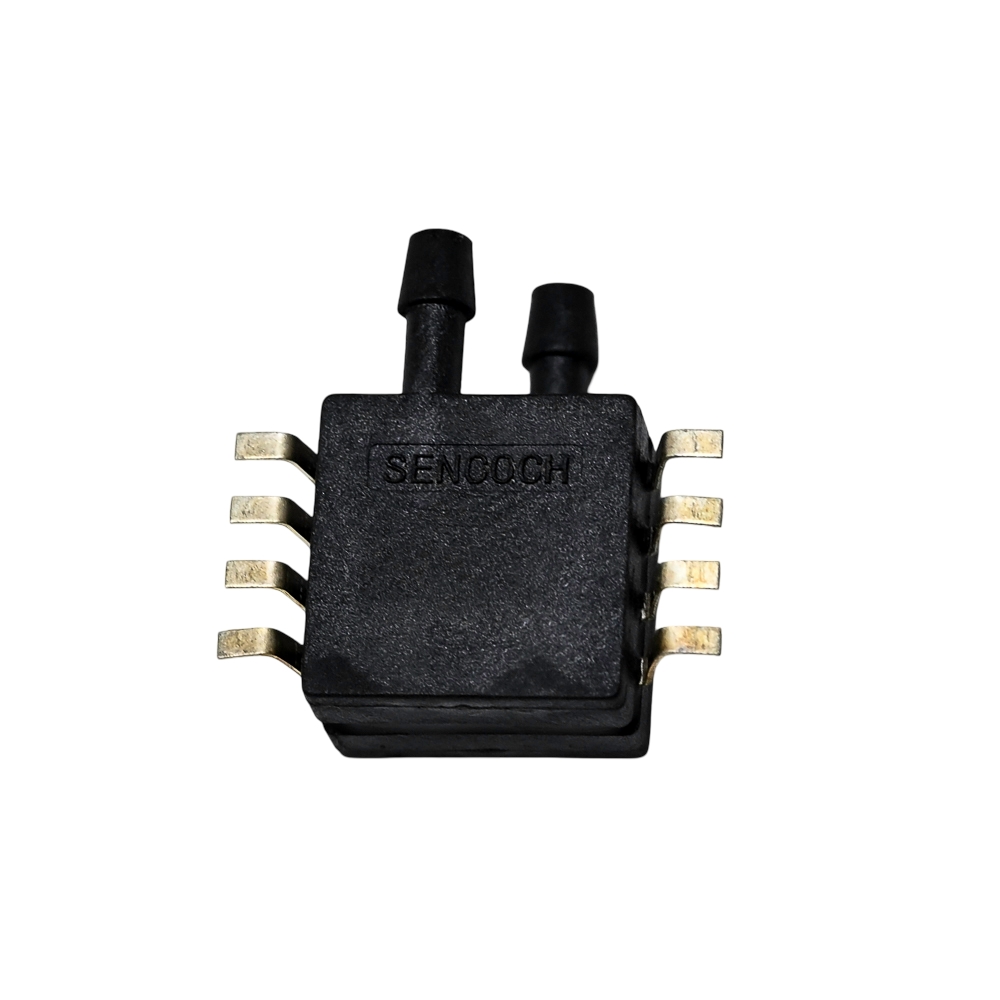

Sencoch GZP6899D002KPW MEMS Pressure Sensor, SOP-8 Package, I2C Interface - Image 2
SKU: SENS-2054
📋 GST Invoice Available

Sencoch GZP6899D002KPW MEMS Pressure Sensor, SOP-8 Package, I2C Interface

₹1,189.00 (Inclusive of all taxes)
Out of Stock

The Sencoch GZP6899D002KPW is a low-power MEMS piezoresistive gauge pressure sensor with an I2C digital output. Operating at 3.3V, it provides a ±2 kPa measurement range and is suitable for integration into portable medical devices, home appliances, and battery-powered monitoring systems.

Features

  • Ultra-low 100nA standby current for extended battery life
  • Digital I2C interface for direct microcontroller connection (Arduino, Raspberry Pi, ESP32)
  • MEMS piezoresistive sensing element with ±2% accuracy
  • Compact SOP-8-2.54mm surface-mount package
  • Wide operating temperature range from -30°C to +85°C

Out of stock

Description

The GZP6899D002KPW utilizes a MEMS piezoresistive sensing element to measure gauge pressure within a ±2 kPa range. This technology translates pressure-induced strain into a precise electrical signal, which is conditioned and digitized by an integrated ASIC for direct I2C communication. The sensor’s digital output simplifies system design by eliminating the need for external analog-to-digital conversion.

Designed for low-power applications, the sensor features a minimal 100nA standby current, making it ideal for portable and battery-operated devices. Its robust construction and wide -30°C to +85°C operating temperature ensure reliable performance in various environmental conditions, from medical equipment to smart home appliances.

Key Features

  • High-precision MEMS piezoresistive sensing core
  • Fully calibrated digital I2C output signal
  • Extremely low power consumption for battery-powered designs
  • Surface-mount SOP-8 package for compact PCB integration
  • RoHS compliant construction
  • Stable performance across a broad temperature range

Applications

  • Portable medical diagnostic equipment (e.g., spirometers, sleep apnea monitors)
  • Smart home appliance pressure monitoring (e.g., coffee machines, air purifiers)
  • Wearable health and fitness devices
  • Industrial battery-powered pressure data loggers
  • HVAC system differential pressure sensing

Technical Specifications

Manufacturer Part NumberGZP6899D002KPW
Pressure TypeGauge
Pressure Range-2 kPa to +2 kPa
Sensor TechnologyMEMS Piezoresistive
Output InterfaceI2C
Supply Voltage3.3 V
Standby Current100 nA
Accuracy±2%
Operating Temperature-30°C to +85°C
Package / CaseSOP-8-2.54mm
Weight0.008 kg

Frequently Asked Questions

What is the operating voltage range for this sensor?

The Sencoch GZP6899D002KPW is designed for a nominal supply voltage of 3.3V DC. It is critical to adhere to this voltage specification to ensure accurate readings and prevent damage to the internal MEMS and digital circuitry. Exceeding the recommended voltage may permanently impair sensor functionality.

How do I connect and communicate with this sensor using I2C?

The sensor communicates via the standard I2C protocol. Connect the SDA and SCL pins to your microcontroller's corresponding I2C bus lines, along with 3.3V power and ground. You will need to reference the sensor's datasheet for the specific I2C device address and register map to read the pressure data. Pull-up resistors are typically required on the SDA and SCL lines.

What is the difference between gauge and absolute pressure measurement?

This sensor measures gauge pressure, which is the pressure relative to the ambient atmospheric pressure. An absolute pressure sensor measures relative to a perfect vacuum. The GZP6899D002KPW's ±2 kPa range means it can measure both positive and negative pressure differentials compared to the local environment, useful for applications like flow monitoring or leak detection.

Is this sensor suitable for battery-powered applications?

Yes, its ultra-low 100 nanoampere (nA) standby current makes it exceptionally well-suited for battery-powered and energy-harvesting applications. This minimizes the overall system's power budget, allowing for longer operational life in portable medical devices, wireless sensor nodes, and other mobile monitoring systems.

Package Includes

  • 1 x Sencoch GZP6899D002KPW Pressure Sensor

Additional Information

Weight 0.008 kg
Dimensions 6 × 9 × 2 cm
