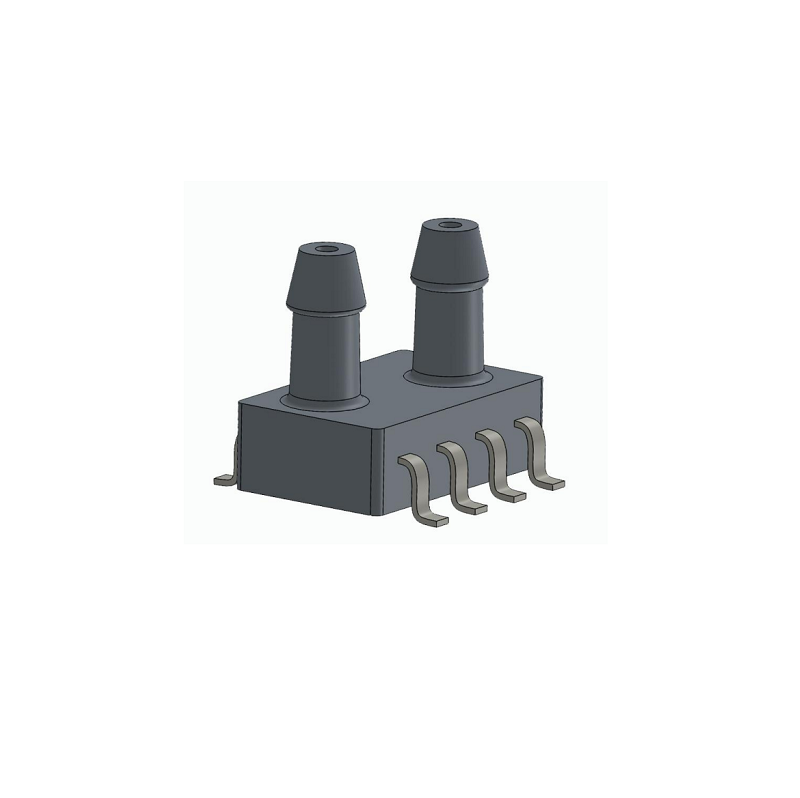

Sencoch GZP6897A0.5KPW50K Pressure Sensor, -0.5 kPa to 0.5 kPa Range, 5V Analog Output, SOP-8 Package
The Sencoch GZP6897A0.5KPW50K is a low-pressure MEMS piezoresistive sensor delivering an analog voltage output proportional to gauge pressure within a ±0.5 kPa range. Operating from a 5V DC supply, it is suitable for integration into low-power electronic systems, medical devices, and precision instrumentation requiring differential pressure measurement.
Features
- ±0.5 kPa Gauge Pressure Range for precise low-pressure detection
- Analog Voltage Output for direct ADC interfacing with microcontrollers
- 5V DC Supply Voltage with low 1.8mA standby current consumption
- Wide -30°C to +85°C Operating Temperature for robust performance
- SOP-8 Surface-Mount Package for compact PCB integration
Out of stock
The GZP6897A0.5KPW50K utilizes a MEMS piezoresistive sensing element to translate applied pressure into a linear analog voltage signal. This design provides high sensitivity within its narrow measurement range, making it ideal for applications requiring detection of subtle pressure changes or differential pressures around atmospheric.
Housed in a compact SOP-8 package, the sensor is RoHS compliant and engineered for reliable operation across an extended industrial temperature range from -30°C to +85°C. Its low current draw makes it suitable for battery-powered or energy-conscious systems where precise pressure monitoring is critical.
Additional Information
| Weight | 0.008 kg |
|---|---|
| Dimensions | 6 × 9 × 2 cm |
