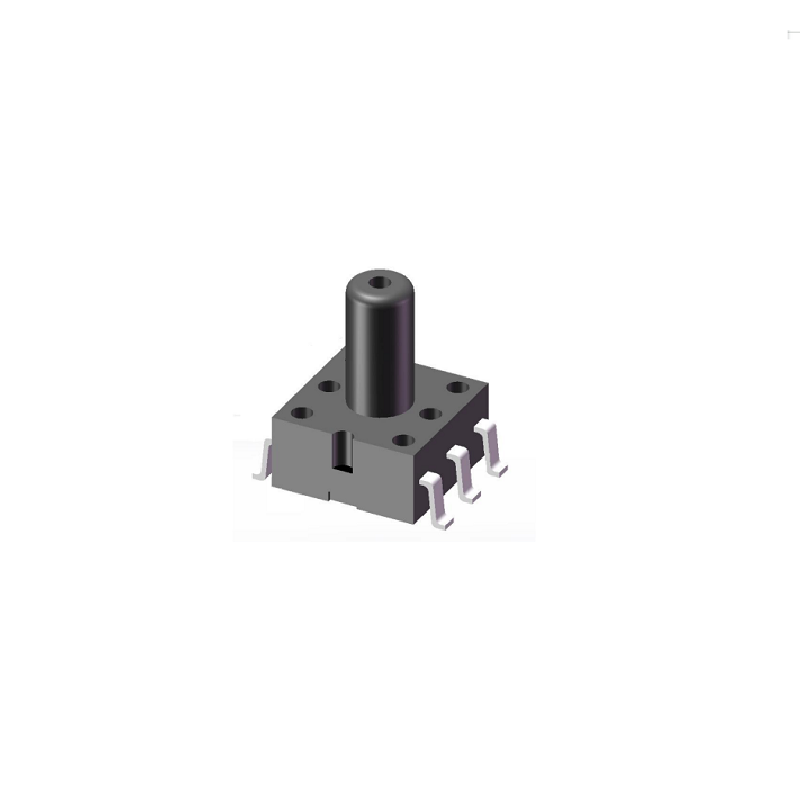

Sencoch GZP6859D101KPP Pressure Sensor, 0-100 kPa, 3.3V, I2C, SOP-6-2.54mm

Name: Sencoch GZP6859D101KPP Pressure Sensor, 0-100 kPa, 3.3V, I2C, SOP-6-2.54mm
Brand: Sencoch
SKU: SENS-2096
Price: 549.00 INR
Availability: OutOfStock

₹549.00 (Inclusive of all taxes)

Out of Stock

The Sencoch GZP6859D101KPP is a low-power MEMS piezoresistive pressure sensor module with an I2C digital interface, designed for 3.3V systems. It provides precise gauge pressure measurement from 0 to 100 kPa, making it suitable for integration with microcontrollers like Arduino, ESP32, and Raspberry Pi.

Features

Ultra-low 100nA standby current for battery-powered applications
Digital I2C output for direct microcontroller interfacing
MEMS piezoresistive sensing element for stable, accurate readings
Compact SOP-6-2.54mm surface-mount package
Wide operating temperature range from -30°C to +85°C

Out of stock

Get Notified When Available

Description

The GZP6859D101KPP utilizes a MEMS piezoresistive sensing element to convert applied pressure into an electrical signal. This signal is conditioned and digitized by an integrated ASIC, providing a clean, calibrated digital output via the I2C communication protocol, simplifying system design and reducing noise susceptibility.

Engineered for reliability, the sensor operates across a broad temperature range and features an ultra-low power sleep mode, making it ideal for portable, battery-operated devices. Its compact, surface-mount package allows for space-efficient PCB integration in various electronic assemblies.

Key Features

High-accuracy MEMS piezoresistive pressure sensing core
Fully calibrated digital I2C output signal
Extremely low 100nA standby current consumption
Robust performance across -30°C to +85°C temperature range
Compact SOP-6-2.54mm footprint for space-constrained designs
Optimized performance-to-cost ratio for volume applications
Gauge pressure type referenced to ambient atmosphere

Applications

Portable medical devices for spirometry and blood pressure monitoring
Smart home appliances for water level detection and filter monitoring
Wearable fitness trackers for altitude and environmental sensing
Industrial IoT (IIoT) for low-pressure pneumatic system monitoring
HVAC systems for duct pressure and airflow measurement

Technical Specifications

Manufacturer Part Number	GZP6859D101KPP
Pressure Type	Gauge
Pressure Range	0 to 100 kPa
Sensor Type	MEMS piezoresistive
Output Interface	I2C
Supply Voltage	3.3 V DC
Standby Current	100 nA
Accuracy	±2%
Operating Temperature	-30°C to +85°C
Package / Case	SOP-6-2.54mm
Weight	0.008 kg

Frequently Asked Questions

What is the communication protocol for this pressure sensor?

This sensor uses the I2C (Inter-Integrated Circuit) digital communication protocol. It provides a calibrated digital output, requiring only two wires (SCL and SDA) for data transfer, along with power and ground connections, which simplifies integration with microcontrollers like Arduino, ESP32, and Raspberry Pi.

What is the operating voltage range? Can I use it with 5V systems?

The specified supply voltage is 3.3V DC. Applying 5V directly may damage the sensor. For use with 5V microcontroller systems, a logic level converter or voltage divider on the I2C lines is required to ensure safe and reliable communication.

How accurate is the GZP6859D101KPP sensor?

The sensor has a typical accuracy of ±2% across its specified 0 to 100 kPa range. This accuracy includes the effects of non-linearity, hysteresis, and repeatability, providing reliable measurement data for applications like appliance control, environmental monitoring, and basic medical devices.

What does 'gauge pressure' mean for this sensor?

Gauge pressure measures pressure relative to the ambient atmospheric pressure. A reading of 0 kPa indicates the sensed pressure is equal to the local atmospheric pressure. This is ideal for applications like pneumatic controls, fluid level sensing, and filter monitoring where you need to measure pressure above or below atmospheric conditions.
