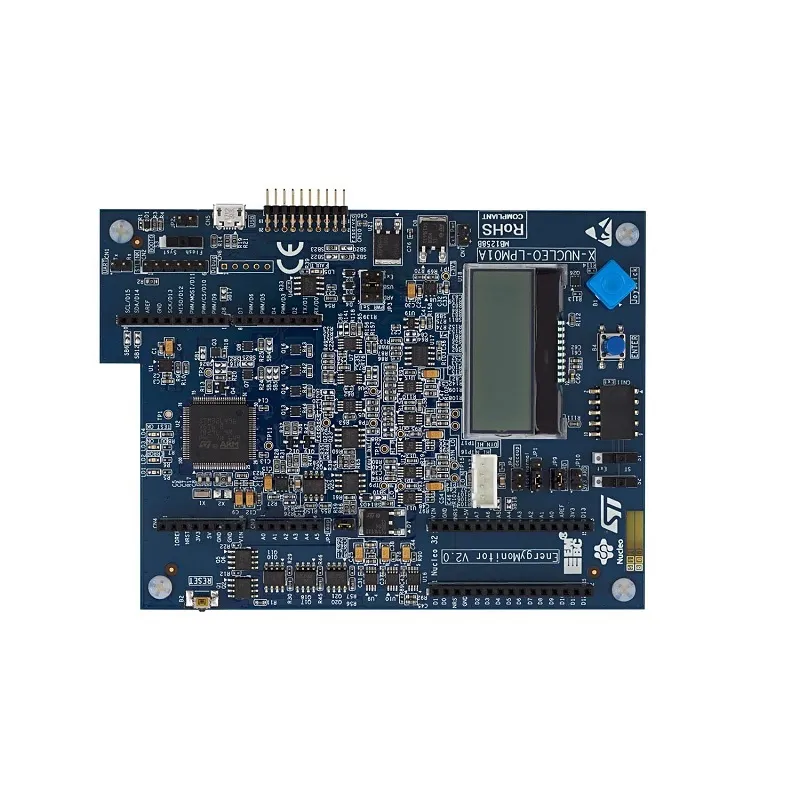

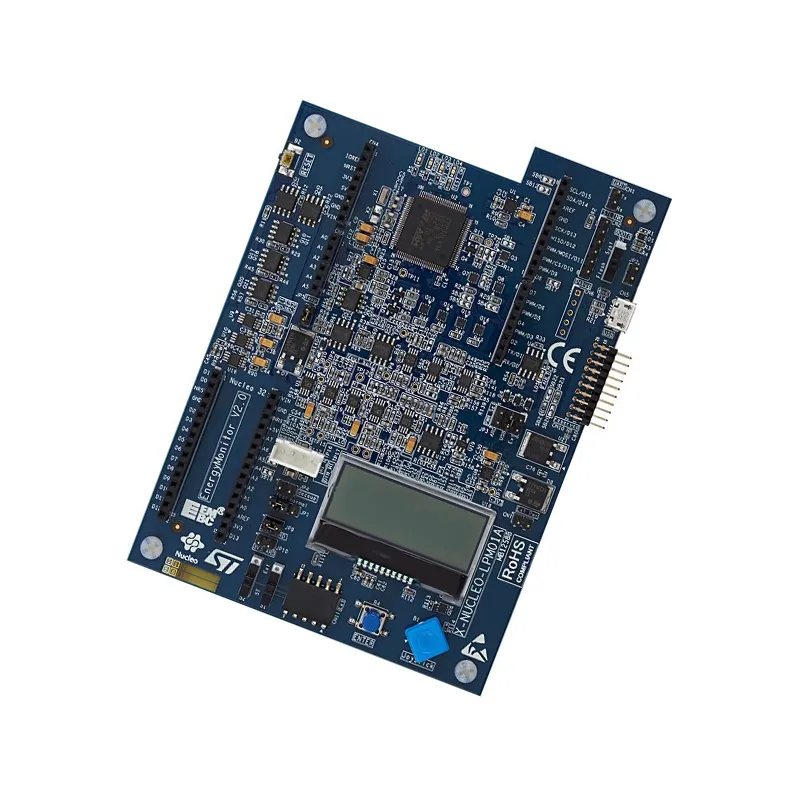

STMicroelectronics X-NUCLEO-LPM01A Power Measurement Board
The STMicroelectronics X-NUCLEO-LPM01A is an expansion board designed for STM32 Nucleo platforms, providing a programmable 1.8V to 3.3V power supply and advanced power consumption measurement from 1nA to 200mA for static analysis and up to 50mA for real-time dynamic measurement.
Features
- Integrated STM32L496VGT6 MCU with Arm® Cortex®-M4 core.
- Programmable voltage source from 1.8V to 3.3V for DUT power.
- Offers precise static current measurement capabilities from 1 nA to 200 mA.
- Performs dynamic power measurements with 100 kHz bandwidth and 3.2 Msps sampling.
- Operates standalone via LCD/joystick or controlled via USB with STM32CubeMonitor-Power.
Out of stock
The X-NUCLEO-LPM01A is a dedicated expansion board featuring a programmable power supply source and advanced power consumption measurement capabilities, ideal for optimizing embedded system power efficiency. It provides a flexible voltage output range from 1.8 V to 3.3 V, making it suitable for a wide array of low-power microcontroller applications.
This board excels in both static and dynamic power analysis. It can average consumption for static measurements up to 200 mA and offers real-time analysis for dynamic profiles up to 50 mA with a robust 100 kHz bandwidth. Users can operate the X-NUCLEO-LPM01A in standalone mode, utilizing its onboard LCD, joystick, and button for direct static measurement display, or connect it to a host PC via USB to leverage the comprehensive graphical user interface of the STM32CubeMonitor-Power software tool for in-depth analysis.
Additional Information
| Weight | 0.13 kg |
|---|---|
| Dimensions | 17 × 12 × 5 cm |
