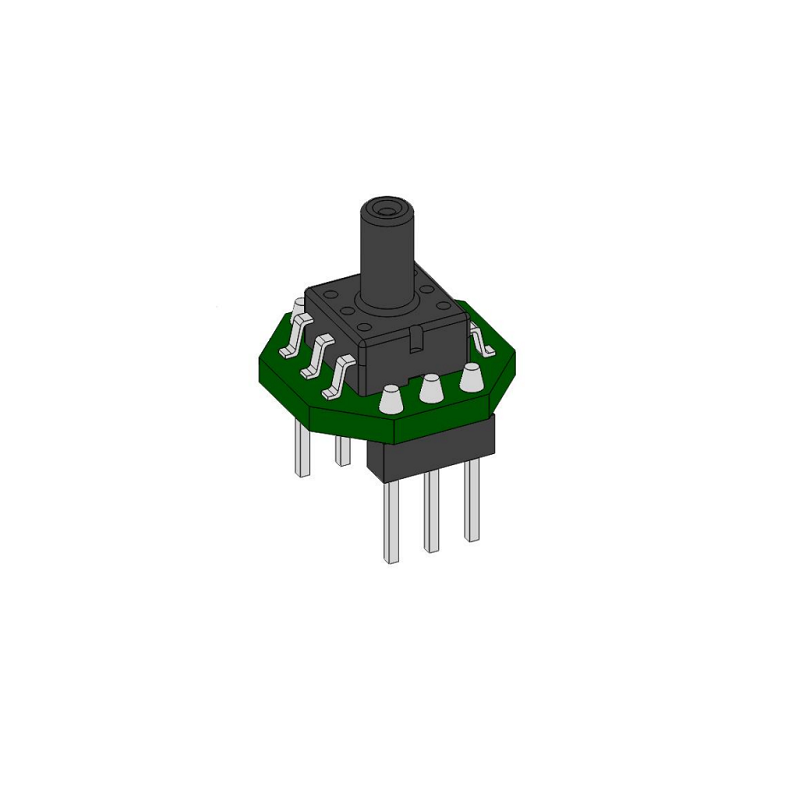

Sencoch GZP6847A101KPW50K Pressure Sensor, -100 kPa to +100 kPa, 5V Analog Output, DIP-6 Package
The Sencoch GZP6847A101KPW50K is a MEMS piezoresistive gauge pressure sensor with an analog voltage output, designed for a ±100 kPa range. Operating from a 5V supply, it is suitable for integration into medical devices, HVAC systems, and industrial control applications requiring bidirectional pressure measurement.
Features
- MEMS piezoresistive sensing element for gauge pressure measurement from -100 kPa to +100 kPa.
- Analog voltage output for direct interface with microcontrollers (e.g., Arduino, STM32) and data acquisition systems.
- Low standby current of 1.8 mA for power-sensitive applications.
- Wide operating temperature range from -30°C to +85°C for robust environmental performance.
- Compact DIP-6 through-hole package for easy PCB mounting and prototyping.
Out of stock
The GZP6847A101KPW50K utilizes a MEMS piezoresistive silicon diaphragm to translate applied pressure into a proportional analog voltage signal. This design provides a stable and linear output across its full ±100 kPa gauge pressure range, making it ideal for monitoring differential pressures in closed systems.
With a specified accuracy of ±2% and a wide operating temperature range, this sensor delivers reliable performance in demanding environments from medical instrumentation to appliance control. The 5V supply voltage and analog output simplify integration with standard 3.3V or 5V logic ADCs found on common development platforms and industrial PLCs.
Additional Information
| Weight | 0.008 kg |
|---|---|
| Dimensions | 6 × 9 × 2 cm |
