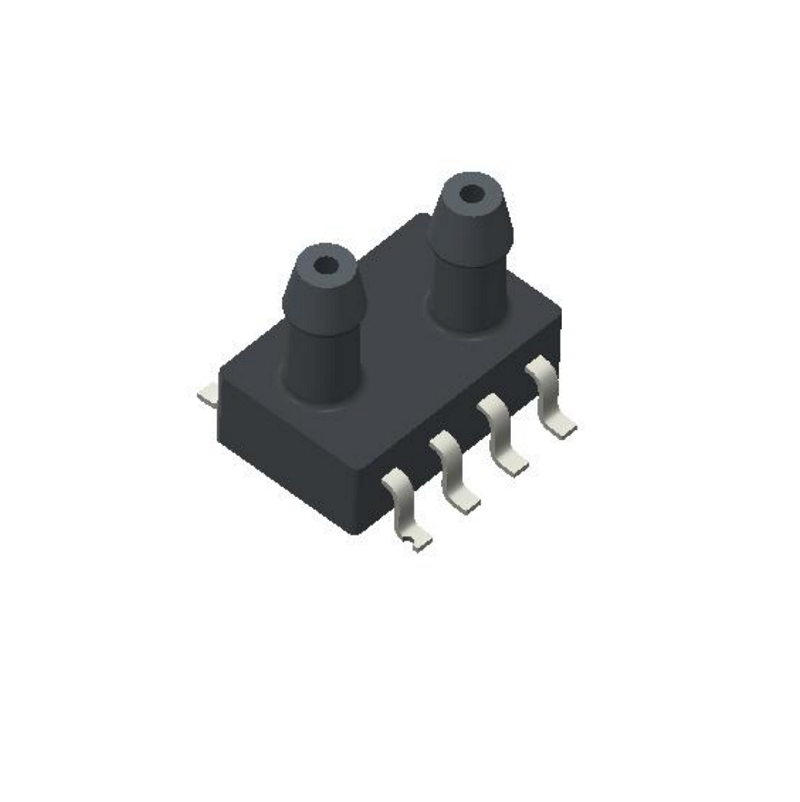

Sencoch GZP190-003S Differential Pressure Sensor, SOP-8 PCB Mount, Analog Output, -3kPa to +3kPa Range
The Sencoch GZP190-003S is a piezoresistive differential pressure sensor in an SOP-8 surface-mount package, delivering an analog voltage output proportional to applied pressure. It is designed for integration into low-power PCB assemblies requiring precise measurement of small positive or negative pressure differentials across a wide supply voltage range.
Features
- Piezoresistive MEMS sensing element for high-sensitivity differential pressure measurement.
- Wide operating supply voltage from 1.8V to 15V DC, suitable for battery-powered and industrial systems.
- Analog voltage output (20mV to 40mV full-scale) for direct ADC interfacing with microcontrollers.
- Compact SOP-8 surface-mount package for space-constrained PCB designs.
- Extended operating temperature range from -30°C to +100°C for robust environmental performance.
Out of stock
The GZP190-003S utilizes a piezoresistive MEMS sensing element to translate applied differential pressure into a linear analog voltage signal. This principle provides high sensitivity and stability, making it suitable for applications requiring precise measurement of very low-pressure changes.
Housed in a compact, lead-free SOP-8 package compliant with RoHS standards, the sensor is designed for automated PCB assembly. Its wide supply voltage tolerance and low power consumption enable deployment in portable medical devices, HVAC controls, and appliance monitoring systems where reliable, low-drift pressure sensing is critical.
Additional Information
| Weight | 0.008 kg |
|---|---|
| Dimensions | 6 × 9 × 2 cm |
