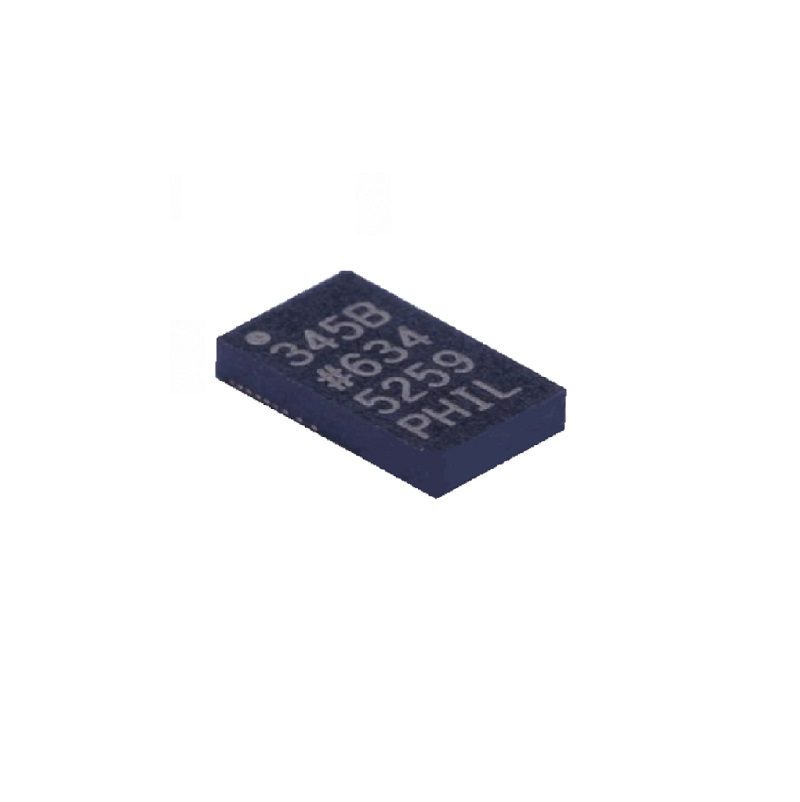

Analog Devices ADXL345BCCZ LGA-14 3-Axis Digital Accelerometer ROHS
The Analog Devices ADXL345BCCZ is a low-power, 3-axis digital accelerometer in an LGA-14 package, offering selectable full-scale ranges from ±2g to ±16g with I2C/SPI digital output. It is designed for motion sensing in compact, battery-powered applications like wearables, IoT devices, and industrial monitoring systems.
Features
- 3-axis digital accelerometer with selectable full-scale ranges (±2g, ±4g, ±8g, ±16g)
- Low-power operation ideal for battery-powered portable devices
- Digital output via I2C (up to 400 kHz) and SPI (up to 5 MHz) interfaces
- High-resolution 13-bit fixed or 10-bit adjustable data output
- Compact LGA-14 package (3 mm x 5 mm x 1 mm) for space-constrained designs
Out of stock
The ADXL345BCCZ is a MEMS-based, 3-axis digital accelerometer from Analog Devices, engineered for precise motion detection and tilt sensing. It utilizes a polysilicon surface-micromachined sensor and signal conditioning circuitry to provide a digital output proportional to acceleration. The device features a built-in 32-level FIFO buffer to minimize host processor intervention and supports activity/inactivity detection, tap sensing, and free-fall detection with programmable thresholds.
Operating from a 2.0V to 3.6V supply, it consumes as low as 23 µA in measurement mode at a 100 Hz output data rate, making it suitable for power-sensitive applications. The robust design ensures reliable performance across an extended industrial temperature range from -40°C to +85°C, with full RoHS compliance for environmental safety.
Additional Information
| Weight | 0.035 kg |
|---|---|
| Dimensions | 17 × 20 × 2 cm |
