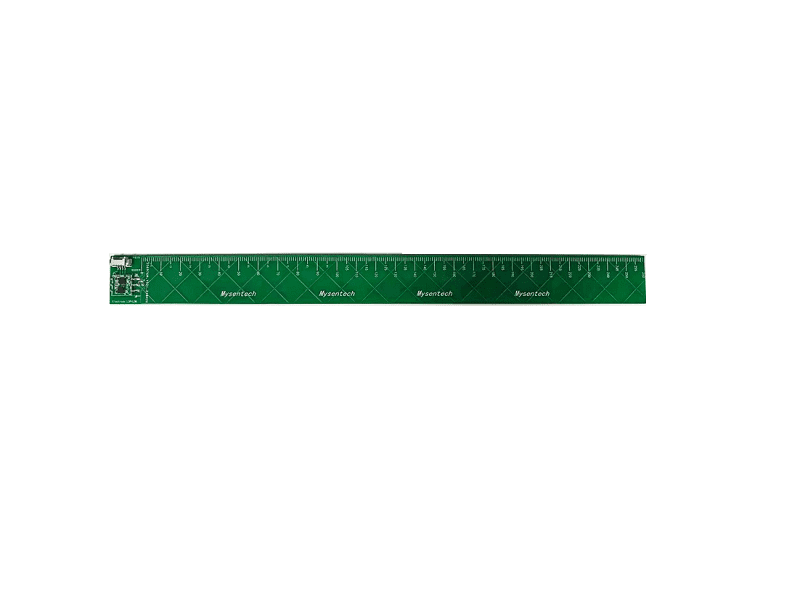

Mysentech MER-LDM Continuous or Segmented Level Measurement I2C Sensor Module
The Mysentech MER-LDM is a non-contact capacitive liquid level sensor module featuring an I2C digital interface for seamless integration with microcontrollers like Arduino, Raspberry Pi, ESP32, and STM32. Operating from 2.5V to 5.5V, it provides continuous or segmented level measurement with up to 1% accuracy.
Features
- Non-contact capacitive sensing penetrates 1–10mm non-metallic container walls.
- High-accuracy measurement up to 1% dependent on medium and installation.
- Digital I2C interface for straightforward microcontroller communication.
- Wide operating voltage range from 2.5V to 5.5V DC.
- Robust operating temperature range from -40°C to +85°C.
Out of stock
The Mysentech MER-LDM sensor module utilizes a high-frequency capacitive sensing chip (MC11S/MC12G) to detect changes in the dielectric constant of the medium. Variations in capacitance correspond directly to liquid level changes, enabling precise continuous or segmented measurement without physical contact with the liquid.
Designed for industrial and embedded applications, the module is available in differential (MER-LDM) and single-ended-to-ground (MER-LSP) configurations. Its robust design supports operation in harsh environments, making it suitable for integration into automated control systems, PLCs, and data acquisition setups.
Additional Information
| Weight | 0.025 kg |
|---|---|
| Dimensions | 24 × 22 × 2 cm |
