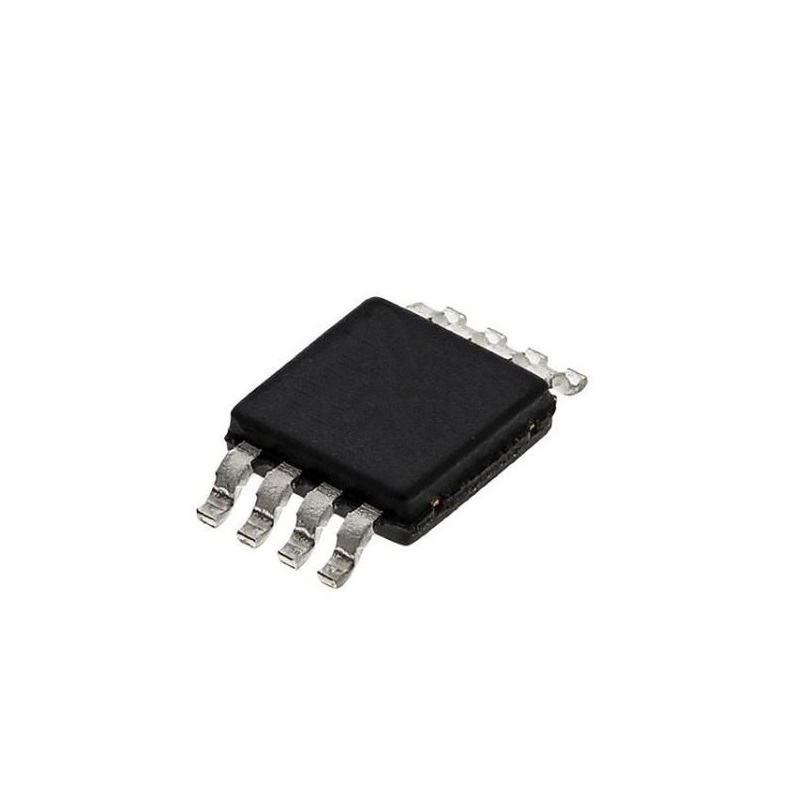

EG Micro EG4005C CPC-8 Human Body Sensing Sensor ROHS
The EG Micro EG4005C is a CPC-8 packaged human body sensing sensor designed for biopotential signal acquisition, compatible with 3.3V and 5V microcontroller systems like Arduino, Raspberry Pi, and ESP32 for healthcare and wearable applications.
Features
- CPC-8 surface-mount package for compact, wearable designs.
- Wide 3V to 5.5V supply voltage range for flexible system integration.
- Extended operating temperature range from -40°C to +85°C.
- High-sensitivity front-end for precise human body signal detection.
- ROHS compliant for environmentally conscious manufacturing.
Out of stock
The EG4005C sensor from EG Micro is a specialized integrated circuit designed for detecting physiological signals from the human body, such as ECG or EMG. It incorporates a high-impedance, low-noise analog front-end to capture microvolt-level biopotentials, which are then conditioned for digital processing by an external ADC or microcontroller.
Housed in a compact CPC-8 package, the module is engineered for reliability across a broad industrial temperature range, making it suitable for both clinical and portable consumer health devices. Its low-power architecture supports energy-efficient operation in battery-powered wearable systems.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 10 × 8 × 3 cm |
