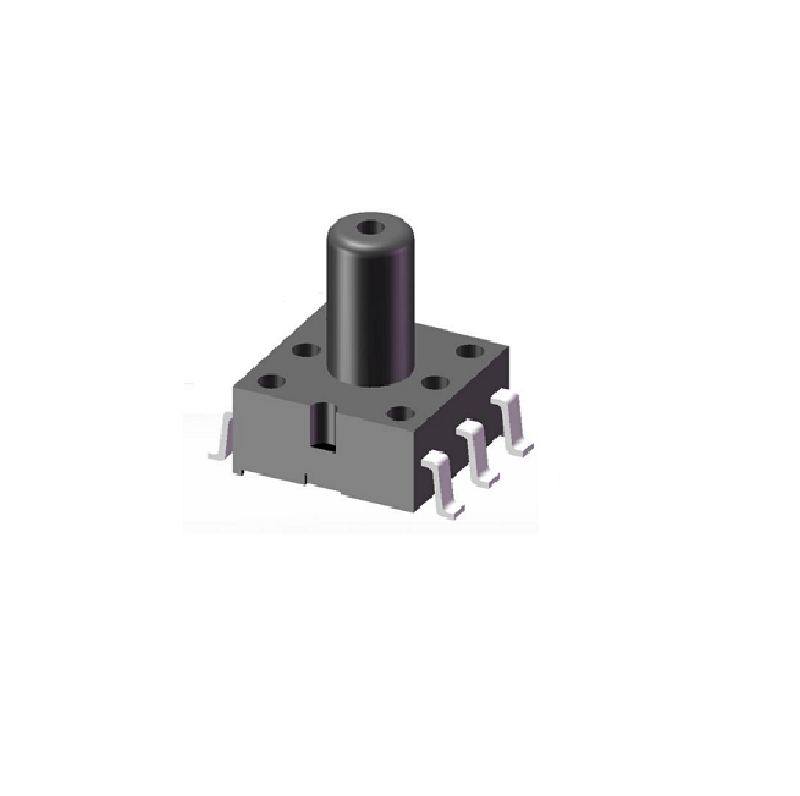

Sencoch GZP160-040S Pressure Sensor, -40Kpa~40Kpa Range, SOP-6 Package
The Sencoch GZP160-040S is a piezoresistive gauge pressure sensor delivering an analog voltage output for a measurement range of -40 to +40 kPa. Its wide 1.8V to 15V supply voltage and compact SOP-6 package make it suitable for integration into portable medical devices, HVAC controls, and appliance monitoring systems.
Features
- Piezoresistive sensing element for gauge pressure measurement.
- Wide operating voltage range from 1.8V to 15V DC.
- Analog voltage output proportional to applied pressure.
- Compact and surface-mountable SOP-6 package.
- Operating temperature range from -30°C to +100°C.
Out of stock
The GZP160-040S utilizes a MEMS piezoresistive sensing element to provide a linear analog voltage output directly proportional to the applied gauge pressure. This design offers stable signal conditioning across its specified supply voltage, enabling reliable performance in variable power environments.
Encapsulated in a robust SOP-6 surface-mount package, the sensor is designed for automated PCB assembly and can withstand an extended industrial temperature range. Its construction ensures minimal drift and long-term stability for precise pressure monitoring in controlled environments.
Additional Information
| Weight | 0.008 kg |
|---|---|
| Dimensions | 6 × 9 × 2 cm |
