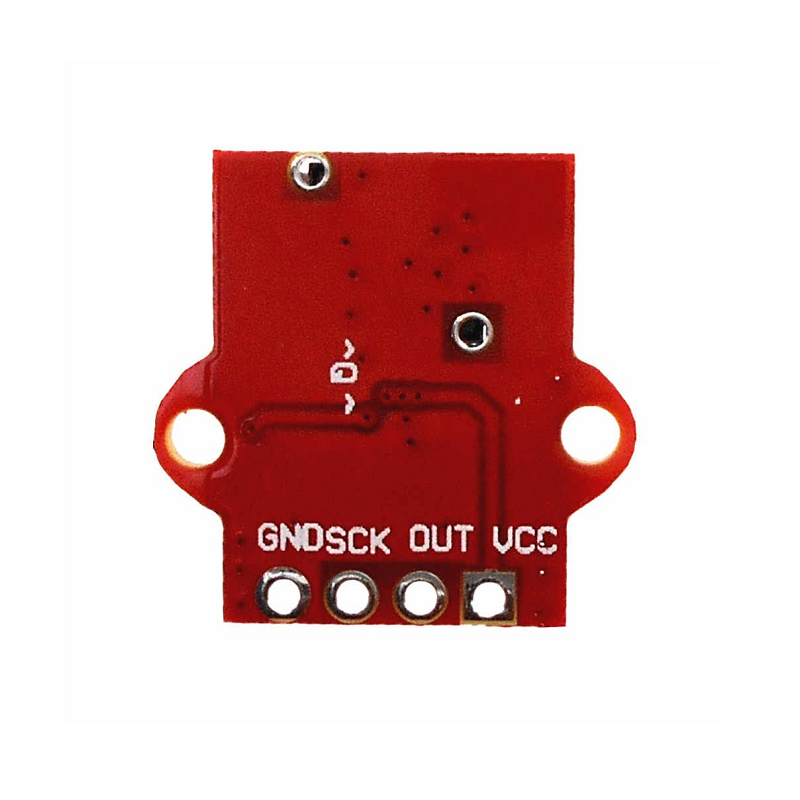

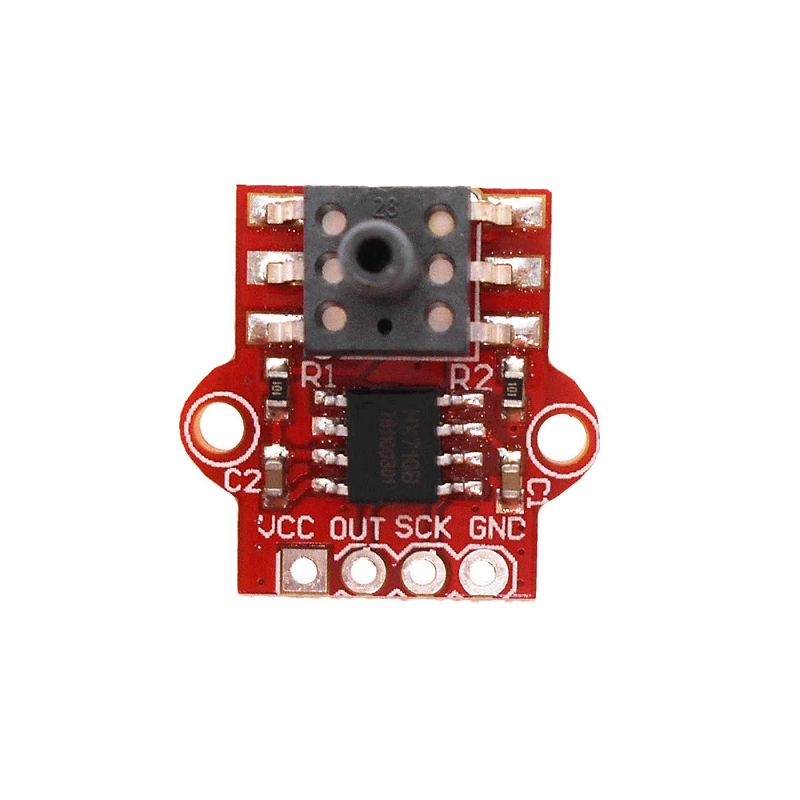

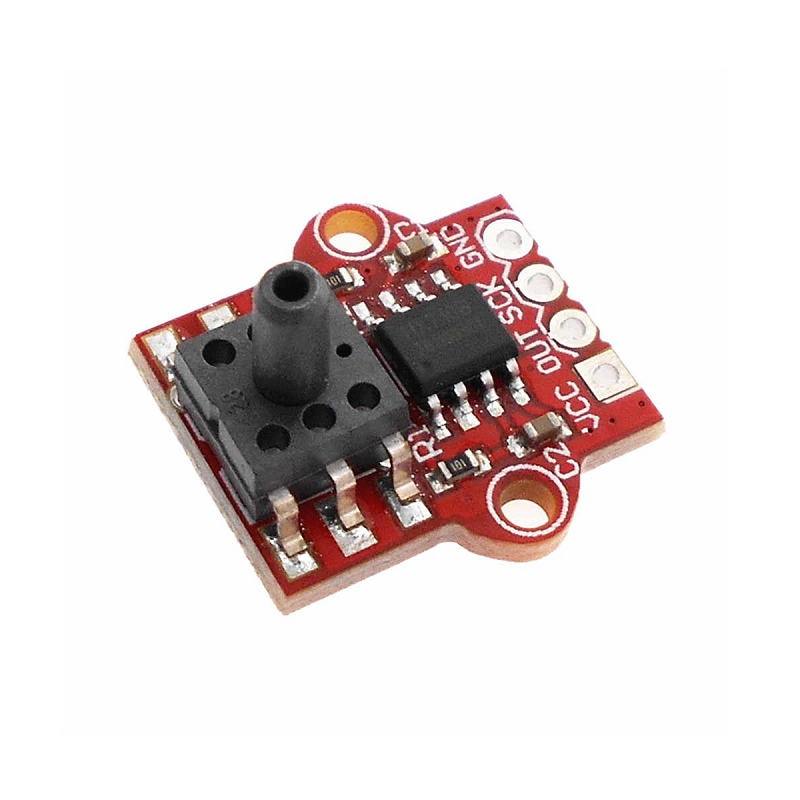

HX710B Air Pressure Sensor Module (0–40KPa) with Straight Pin Header
The HX710B is a high-precision digital barometric pressure sensor module featuring a 0–40KPa sensing range and a 24-bit ADC, designed for direct integration with microcontrollers like Arduino, ESP32, and STM32 via its serial interface for atmospheric pressure and altitude measurement applications.
Features
- High-precision 0–40KPa air pressure sensor with 24-bit ADC for accurate digital output.
- Ultra-low power operation with configurable data output rates of 10 SPS or 80 SPS.
- On-chip programmable gain amplifier (PGA) with selectable gains of 32, 64, and 128.
- Wide operating temperature range from -40°C to +85°C for robust environmental performance.

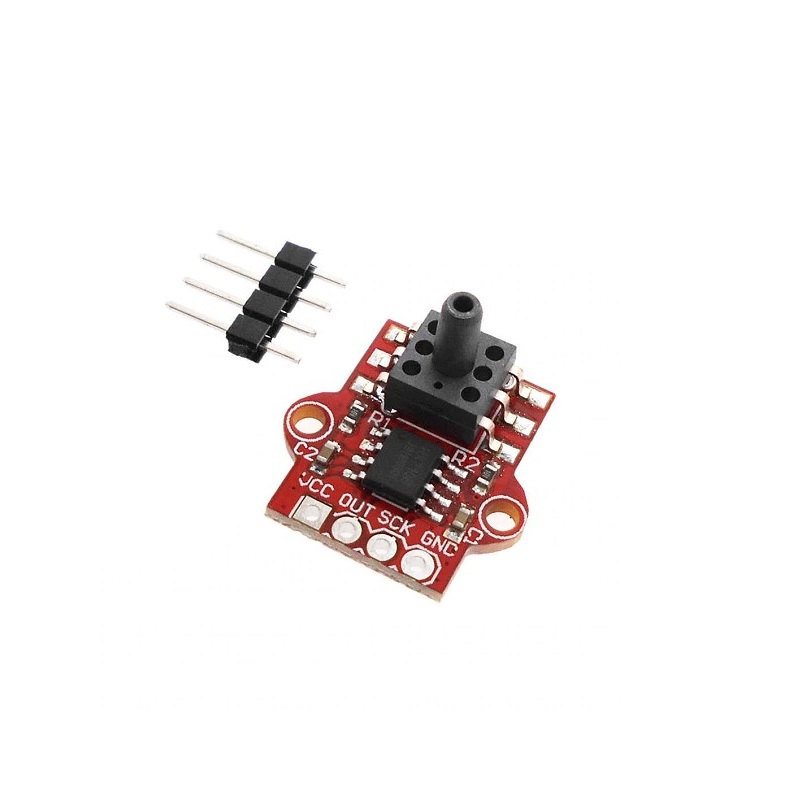

- Compact module footprint (17mm x 18mm) with pre-soldered straight pin header for easy prototyping.
Out of stock
The HX710B Atmospheric Pressure Sensor Module integrates a high-linearity pressure sensing element with a low-noise, 24-bit analog-to-digital converter (ADC). This design provides factory-calibrated digital output for precise measurement of barometric pressure and temperature, making it ideal for applications requiring altitude resolution down to 10 cm. The module’s serial interface simplifies connection to common development platforms.
Optimized for low current consumption, the HX710B supports multiple operation modes, allowing users to balance conversion speed against power draw. Its integrated power supply regulator ensures stable operation for both the sensor and ADC circuitry. The module’s robust construction and wide temperature tolerance suit it for outdoor environmental monitoring and portable altimeter designs.
Additional Information
| Weight | 0.002 kg |
|---|---|
| Dimensions | 1.8 × 1.7 cm |
