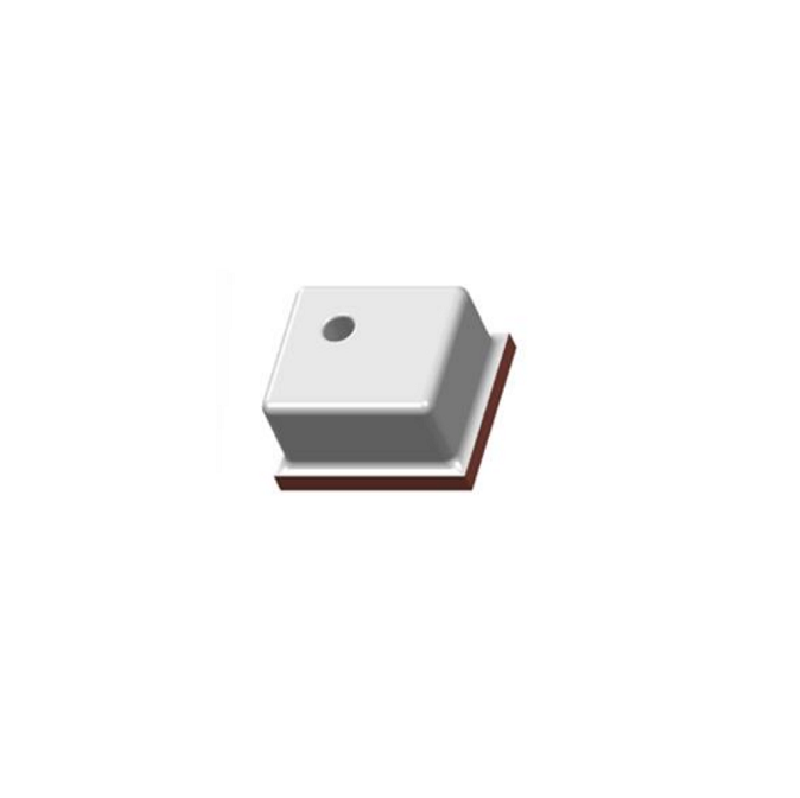

Sencoch GZP131-701A Piezoresistive Pressure Sensor Chip, 0-700 kPa, 1.8-15V, SMD-4P
The Sencoch GZP131-701A is a piezoresistive MEMS pressure sensor chip delivering an analog voltage output proportional to applied pressure from 0 to 700 kPa. Operating from a wide 1.8V to 15V supply, this compact SMD-4P component is designed for integration into medical devices, HVAC controls, and appliance monitoring systems requiring precise gauge pressure measurement.
Features
- Piezoresistive MEMS sensor with ±2% accuracy for reliable gauge pressure measurement.
- Wide operating voltage range from 1.8V to 15V DC for flexible system integration.
- Compact SMD-4P package measuring just 2.3 x 2.6 mm for space-constrained PCB designs.
- Robust operating temperature range from -30°C to +100°C.
- Analog voltage (mV) output signal for direct interfacing with microcontroller ADCs.
Out of stock
The GZP131-701A utilizes a micromachined silicon piezoresistive sensing element to translate applied pressure into a linear analog voltage signal. This MEMS-based design ensures high sensitivity and long-term stability within its specified 0 to 700 kPa gauge pressure range.
Engineered for durability, the sensor chip operates reliably across an extended temperature span from -30°C to +100°C, making it suitable for applications exposed to varying environmental conditions. Its standard analog output simplifies signal conditioning and direct connection to analog-to-digital converters on microcontrollers, PLCs, or data acquisition systems.
Additional Information
| Weight | 0.008 kg |
|---|---|
| Dimensions | 2.6 × 2.3 cm |
