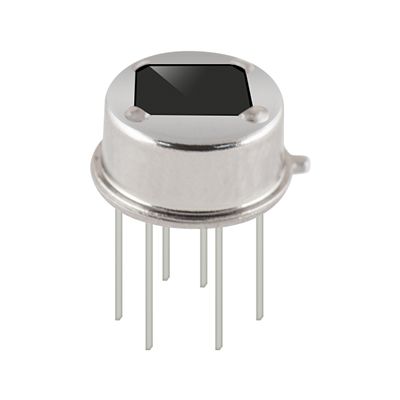

Senba BS612 Digital PIR Motion Sensor - Schmitt Trigger Output
The Senba BS612 is a low-voltage digital PIR motion sensor module featuring a Schmitt trigger output for clean signal conditioning, designed for integration into 3.3V microcontroller systems like ESP32, STM32, and Arduino boards for presence detection applications.
Features
- Digital PIR sensor with Schmitt trigger (REL) output for stable, bounce-free signals.
- Ultra-low operating voltage range from -0.3V to 3.6V, optimized for 3.3V logic systems.
- Wide operating temperature range from -25°C to 85°C for robust environmental performance.
- Enhanced immunity to RFI and 2.4GHz high-frequency interference for reliable operation.
- User-adjustable parameters for detection delay, sensitivity, and lighting control.
Out of stock
The BS612 Digital Passive Infrared (PIR) Sensor utilizes a pyroelectric sensing element to detect changes in infrared radiation caused by moving heat sources. Its integrated Hybrid IC provides signal amplification, noise filtering, and outputs a clean digital signal via a Schmitt trigger, ensuring reliable detection with minimal false triggers. The module is engineered for low power consumption and instant readiness upon power-up.
Designed for durability, the sensor operates reliably across a broad temperature range and features enhanced shielding against common electromagnetic interference, making it suitable for integration into consumer electronics, smart home appliances, and automated lighting systems where stable 3.3V logic is used.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 5 × 3 × 1 cm |
