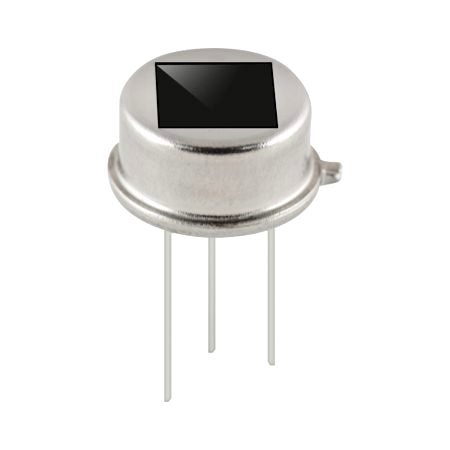

Senba B2X2 Quad-Element Analog PIR Motion Sensor Module - TO-5 Package
The Senba B2X2 is a quad-element analog PIR motion sensor module in a TO-5 metal can package, designed for integration into lighting control systems and security devices. It provides a high-sensitivity, low-noise voltage output signal compatible with standard analog input circuits.
Features
- Quad-element IR receiving electrode for enhanced motion detection sensitivity.
- Wide 3-15V DC supply voltage range for flexible system integration.
- High output signal strength ≥3500mV (Vp-p) for reliable signal processing.
- TO-5 metal can encapsulation ensures stable performance and durability.
- Broad spectral response (5–14 µm) optimized for human body IR radiation.
Out of stock
The Senba B2X2 PIR sensor utilizes four pyroelectric elements arranged to provide balanced horizontal and vertical detection angles, making it particularly suitable for ceiling-mounted applications in lighting and intrusion detection systems. Its analog output delivers a raw voltage signal proportional to detected IR radiation changes.

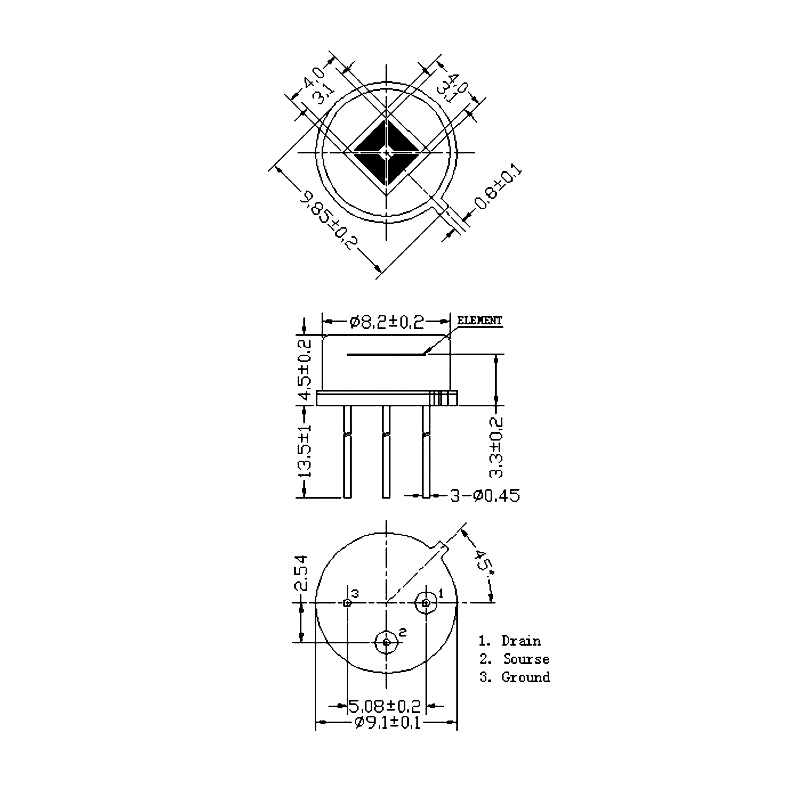

Housed in a robust TO-5 package, the sensor operates reliably across an industrial temperature range from -30°C to +75°C. The design emphasizes low power consumption and high detectivity (D* 1.4 ×10⁸ cmHz¹/²/W), ensuring consistent performance in automated lighting control and security monitoring scenarios.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 5 × 3 × 1 cm |
