SKU: SBCD-0106
📋 GST Invoice Available

Seeed Studio Wio Terminal: ATSAMD51 & RTL8720DN Dev Board

₹4,439.00 (Inclusive of all taxes)
Out of Stock

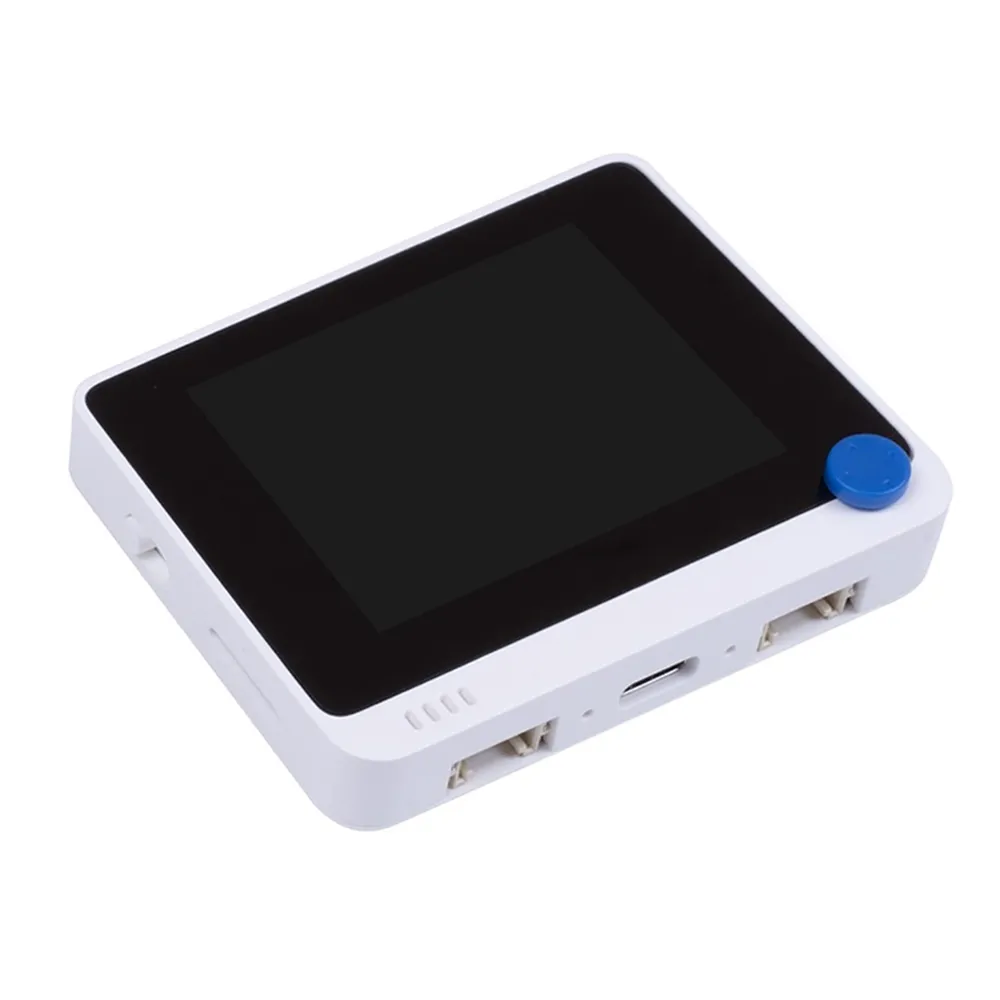

The Seeed Studio Wio Terminal is a versatile ATSAMD51-based microcontroller development board featuring an ARM Cortex-M4F core, dual-band Wi-Fi, and Bluetooth via the Realtek RTL8720DN. Equipped with a 2.4-inch LCD and Raspberry Pi-compatible GPIO, it offers extensive connectivity and supports a wide array of Grove modules, making it ideal for IoT and embedded projects.

Features

  • Integrates Microchip Technology ATSAMD51P19 (Cortex-M4F, 120MHz) for robust processing power.
  • Features Realtek RTL8720DN for reliable dual-band 2.4/5GHz Wi-Fi and Bluetooth 5.0 connectivity.
  • Includes a 2.4″ LCD screen, IMU, microphone, and Raspberry Pi 40-pin compatible GPIO for expansion.
  • Supports Arduino, MicroPython (via ArduPy), and Visual Studio Code development environments.
  • Offers USB OTG capabilities and compatibility with over 300 Grove modules for rapid prototyping.

Out of stock

Description

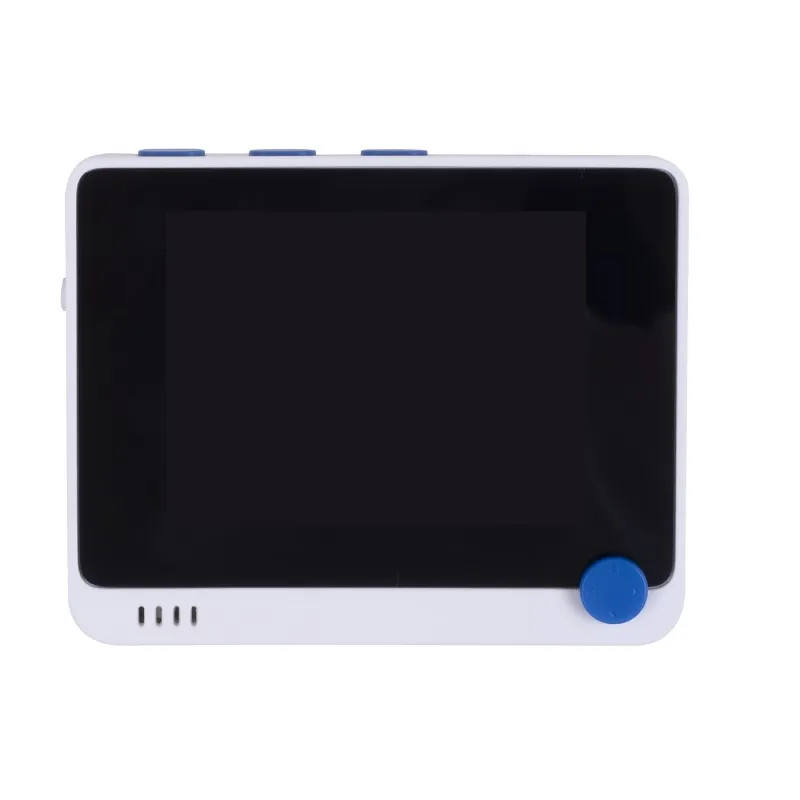

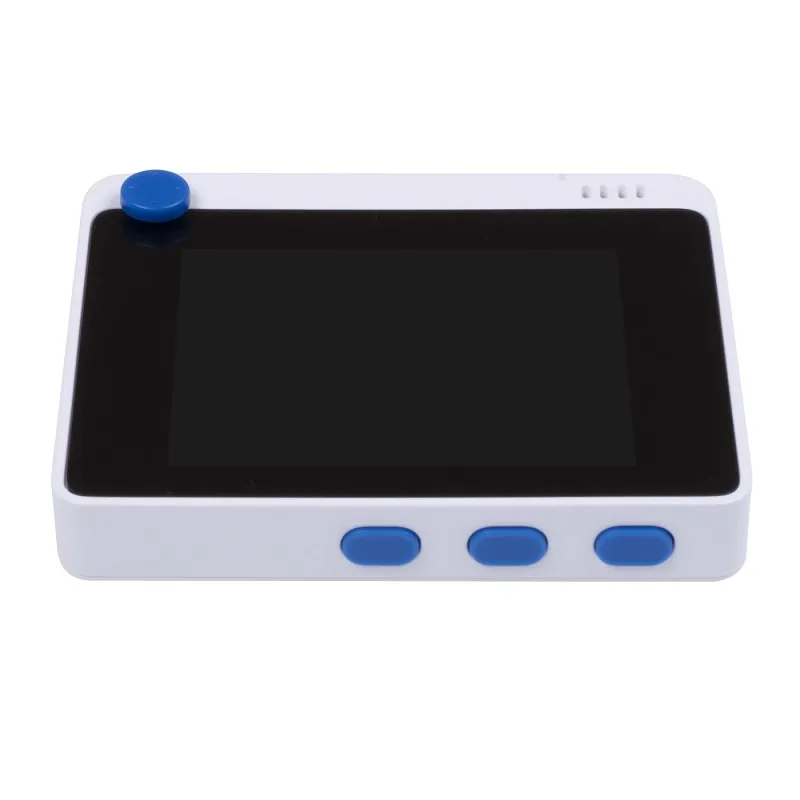

The Seeed Studio Wio Terminal redefines the concept of an integrated development platform, offering a complete system that combines a vibrant 2.4-inch LCD screen, a powerful microcontroller, diverse input/output interfaces, and a compact enclosure. Building upon the Wio (Wireless Input and Output) legacy, this terminal provides an efficient, product-ready solution for developers and makers seeking a comprehensive embedded system. It is fully open-source hardware, facilitating a “pythonic” approach to development and enabling rapid prototyping of custom program interpreters.

At its core, the Wio Terminal is an ATSAMD51-based microcontroller, driven by an ARM Cortex-M4F CPU clocking at 120MHz, with a boost capability up to 200MHz. Wireless connectivity is robustly handled by the Realtek RTL8720DN chip, providing both dual-band Wi-Fi (2.4Ghz / 5Ghz) and Bluetooth 5.0, essential for modern IoT applications. The board is richly equipped with onboard peripherals including an IMU (LIS3DHTR), microphone, buzzer, microSD card slot, light sensor, and infrared emitter (IR 940nm). For expansion, it features two multifunctional Grove ports, seamlessly integrating with Seeed Studio’s vast Grove ecosystem, and a Raspberry Pi 40-pin compatible GPIO header, allowing for the use of various add-ons and HATs with an adapter cable.

Key Features

  • Integrated MCU (ATSAMD51P19, ARM Cortex-M4F), 2.4" LCD, Wi-Fi, BT, IMU, Microphone, Buzzer, microSD.
  • Microchip Technology ATSAMD51P19 running at 120MHz (boostable to 200MHz) with 4 MB External Flash, 192 KB RAM.
  • Comprehensive protocol support including SPI, I2C, I2S, ADC, DAC, PWM, and UART.
  • Realtek RTL8720DN for dual-band 2.4Ghz / 5Ghz Wi-Fi (802.11 a/b/g/n) and BLE 5.0.
  • USB OTG support for acting as both USB-Host (mouse, keyboard, MIDI) and USB-Client (emulate mouse, keyboard).

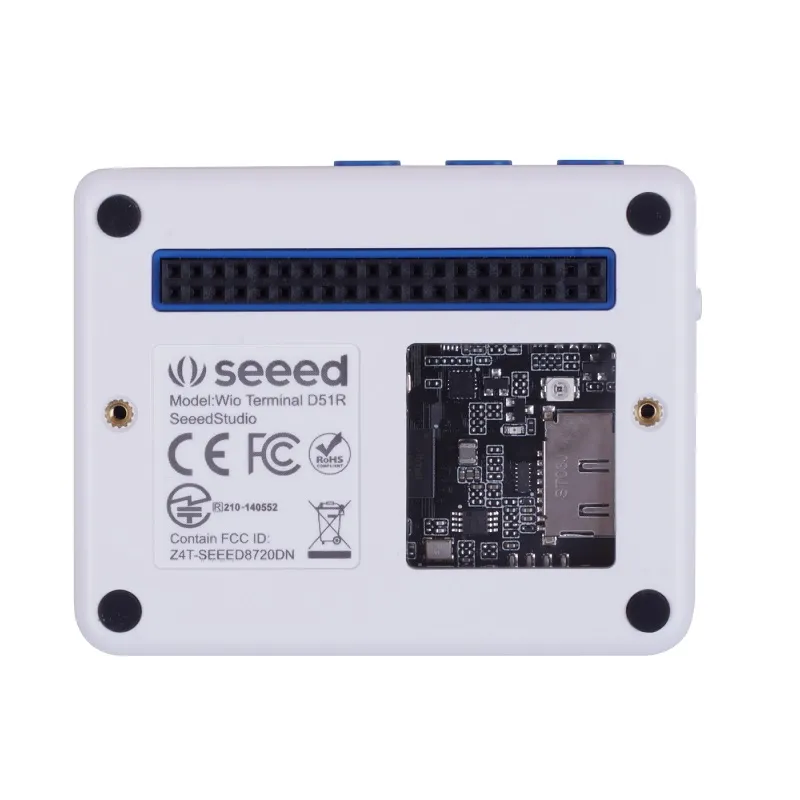

  • Raspberry Pi 40-pin compatible GPIO, allowing mounting as a slave device or use of HATs with adapters.
  • Well-designed enclosure with built-in magnets and two mounting holes for hassle-free setup.
  • Software support for Arduino, MicroPython (via ArduPy), AT Firmware, and Visual Studio Code.

Applications

  • IoT sensor nodes and gateways with integrated display and wireless connectivity.
  • Handheld smart devices for monitoring, control, and data acquisition.
  • Edge AI and machine learning inference applications.
  • Rapid prototyping with Grove modules and Raspberry Pi HATs.
  • Embedded systems requiring comprehensive I/O and user interface.

Technical Specifications

Main ChipMicrochip Technology ATSAMD51P19 (ARM Cortex-M4F)
Maximum Speed120MHz (Boost up to 200MHz)
External Flash4 MBytes
RAM192 KB
Operating Temperature-40°C ~ 85°C (TA)
Display Size2.4 inch LCD
Display Resolution320x240
Display Driver ICILI9341
Wireless Wi-Fi802.11 a/b/g/n 1x1, 2.4GHz & 5GHz (Realtek RTL8720DN)
Wireless BluetoothBLE 5.0 (Realtek RTL8720DN)
AccelerometerLIS3DHTR
Microphone1.0V-10V -42dB
Speaker Output≥78dB @10cm 4000Hz
Light Sensor400-1050nm
Infrared Emitter940nm
MicroSD Card SlotSupports up to 16GB
GPIO40-PIN (Raspberry Pi Compatible)

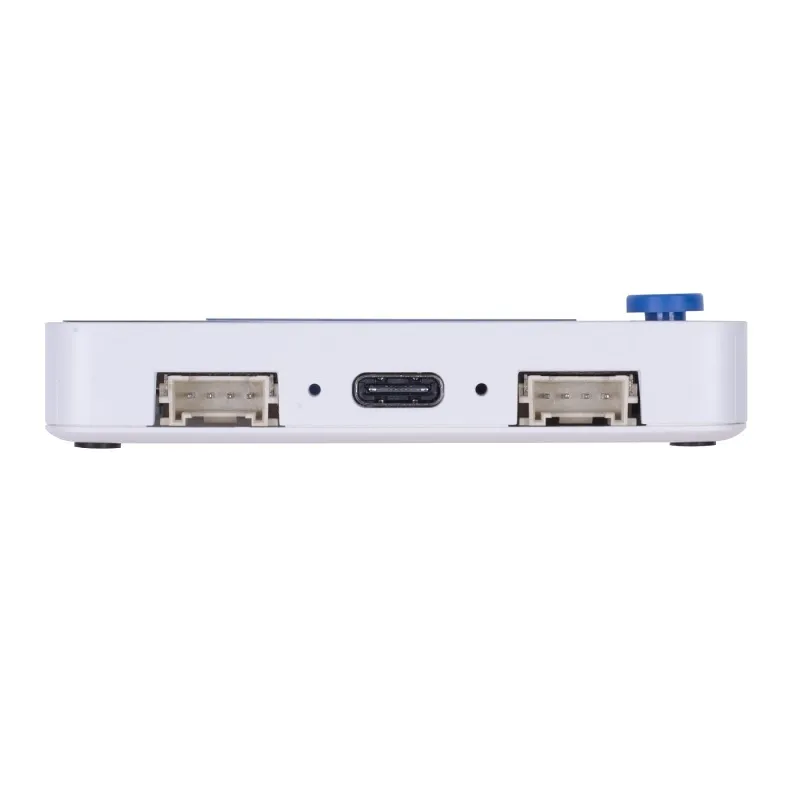

USB InterfaceUSB Type-C (Power & USB-OTG)
Other Interfaces2x Grove ports, FPC 20-Pins
Dimensions72mm x 57mm x 12mm

Frequently Asked Questions

What microcontroller powers the Wio Terminal and what are its core capabilities?

The Wio Terminal is powered by a Microchip Technology ATSAMD51P19, an ARM Cortex-M4F microcontroller operating at 120MHz, boostable to 200MHz. It features 4MB external flash and 192KB RAM, providing robust processing for embedded applications requiring advanced computation and ample memory.

What wireless connectivity options are available on the Wio Terminal?

It utilizes the Realtek RTL8720DN chip, offering dual-band Wi-Fi (802.11 a/b/g/n on 2.4GHz and 5GHz) and Bluetooth Low Energy 5.0. This comprehensive wireless suite ensures reliable communication for diverse IoT deployments and networked projects, supporting both short-range and infrastructure-based connections.

Is the Wio Terminal compatible with Raspberry Pi accessories?

Yes, the Wio Terminal features a Raspberry Pi 40-pin compatible GPIO header. This allows it to function as a slave device when mounted directly to a Raspberry Pi or enables the use of various Raspberry Pi HATs via an appropriate adapter cable, expanding its peripheral capabilities.

What development environments and programming languages does the Wio Terminal support?

The Wio Terminal supports a variety of popular development environments. Users can program it using the Arduino IDE, MicroPython (specifically via the ArduPy framework), AT Firmware, and Visual Studio Code with relevant extensions. This flexibility caters to different developer preferences and project requirements.

What are the integrated display and sensory features of the Wio Terminal?

The board includes a 2.4-inch 320x240 LCD screen, an onboard IMU (LIS3DHTR) for motion sensing, a microphone, and a light sensor. These integrated components enable the development of projects with direct user interaction, environmental monitoring, and gesture control, without requiring external modules.

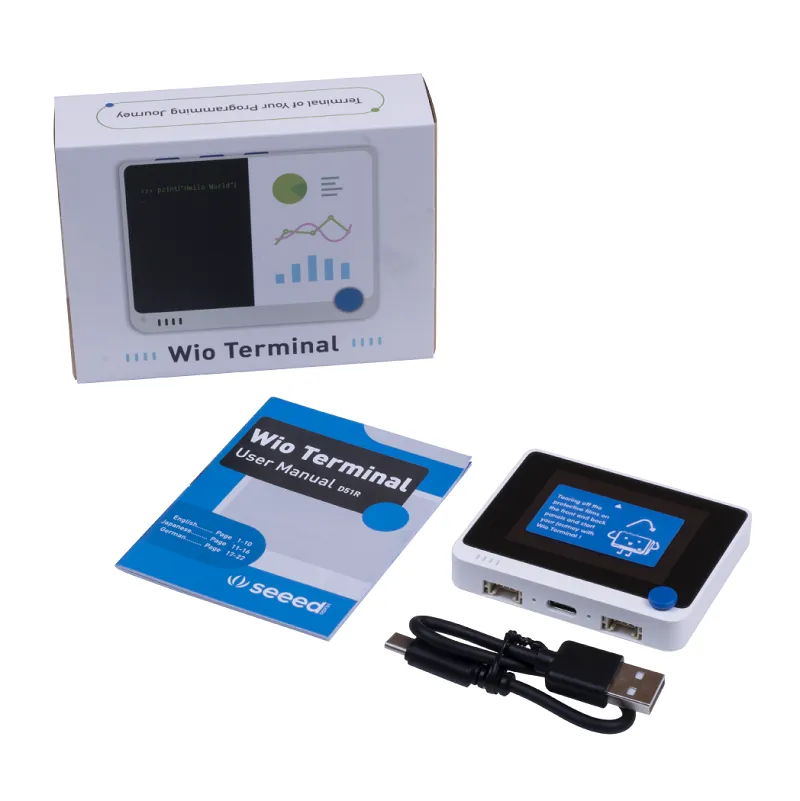

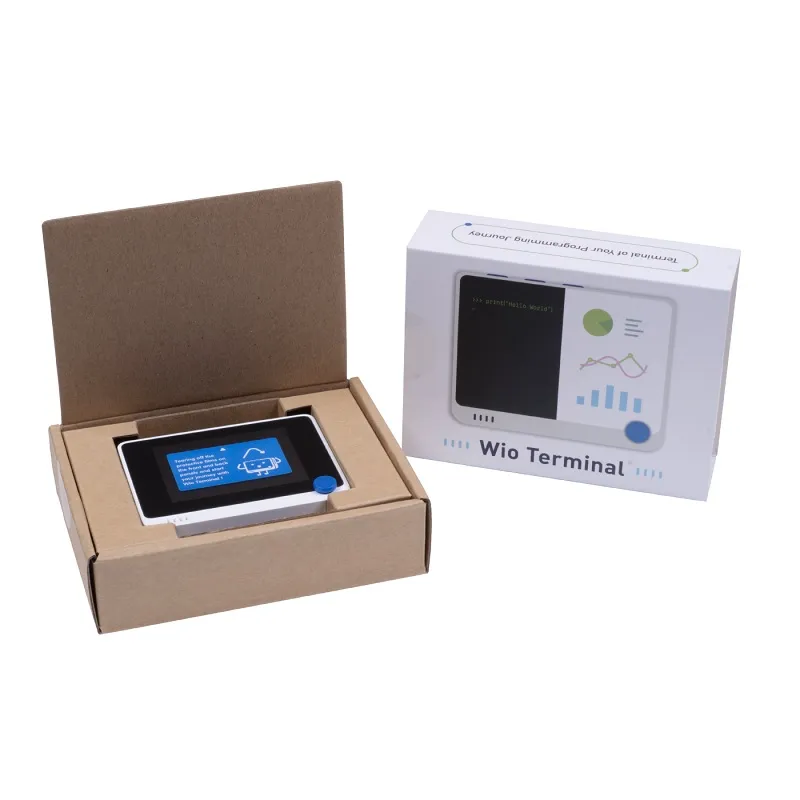

Package Includes

  • 1 x Wio Terminal: ATSAMD51 Core with Realtek RTL8720DN BLE 5.0 & Wi-Fi 2.4G/5G Dev Board

Additional Information

Weight 0.13 kg
Dimensions 7.2 × 5.7 × 1.2 cm

Related Products

Out of Stock

Arduino Micro w/ Headers (ATmega32U4)

2,279.00
Learn More
Out of Stock

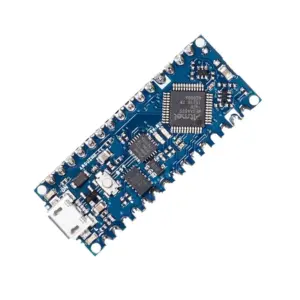

Arduino Nano Every with Headers (ATMEGA4809)
