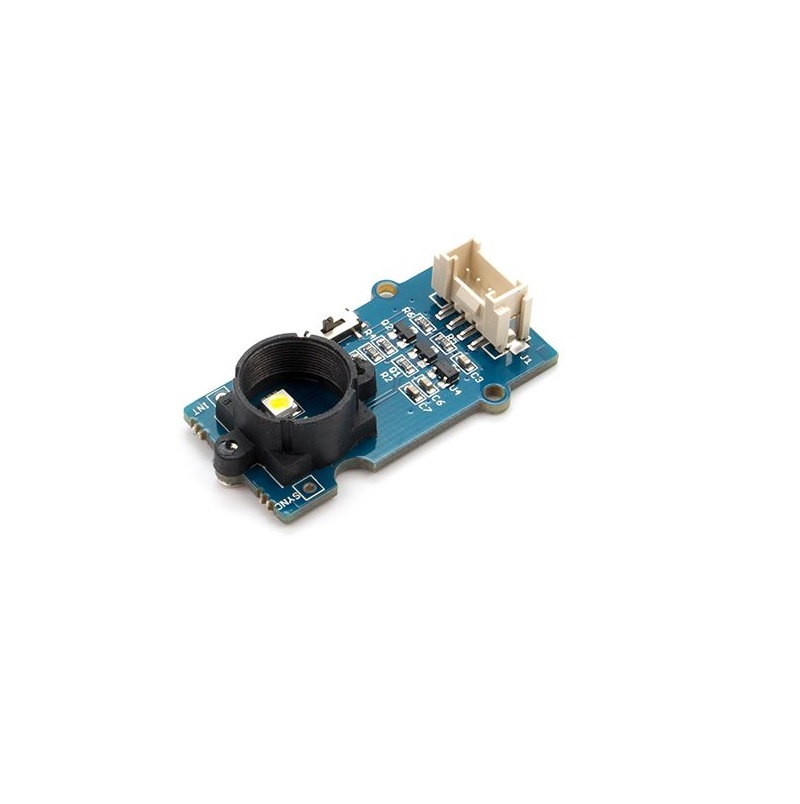

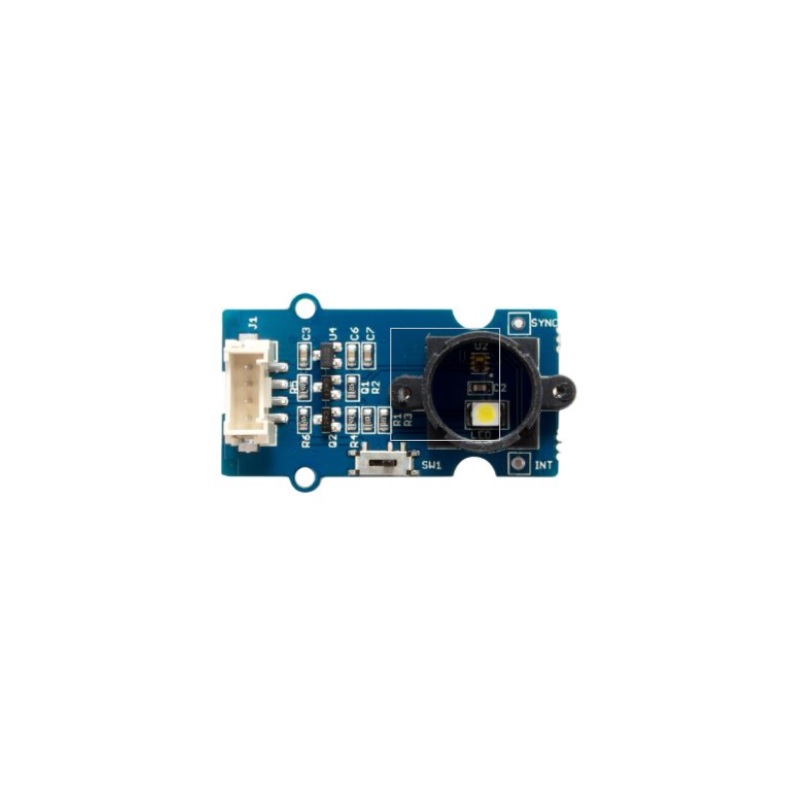

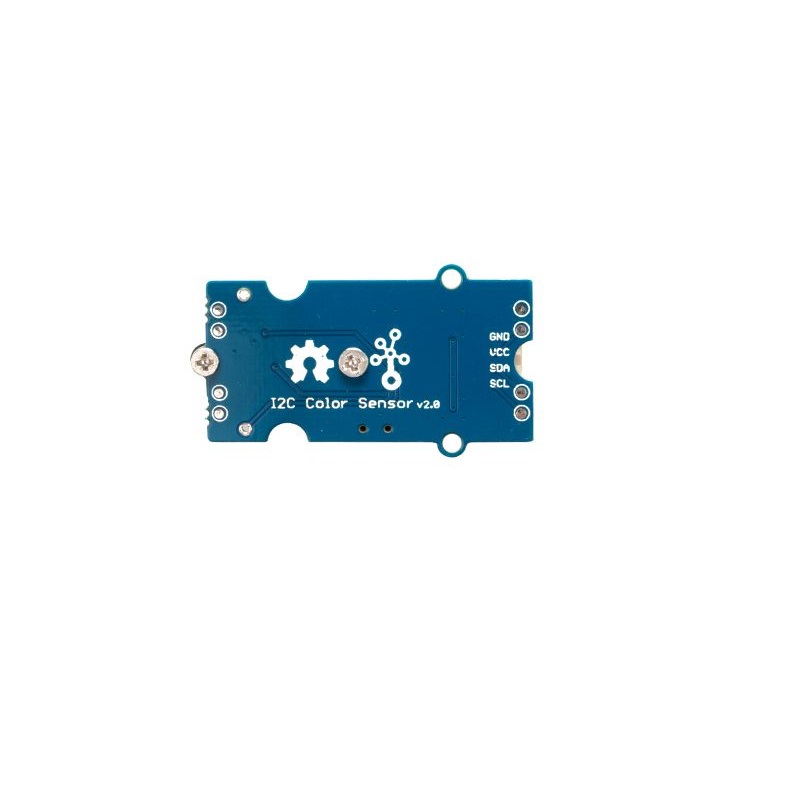

Seeed Studio Studio Grove I2C Color Sensor v2.0 - TCS34725FN, 16-Bit Digital Output
The Seeed Studio Studio Grove I2C Color Sensor v2.0 is a digital color sensing module based on the TCS34725FN, providing 16-bit RGB and clear light data via I2C interface. It operates from 3.3V to 5V, making it directly compatible with Arduino, Raspberry Pi, ESP32, and other microcontroller platforms for precise color detection and ambient light analysis.
Features
- High-precision TCS34725FN color sensor with 16-bit digital output for accurate RGB and clear light data.
- Standard I2C interface (3.3V/5V logic compatible) for easy integration with Arduino, Raspberry Pi, and ESP32.
- Dedicated SYNC input pin for precise synchronization with modulated or pulsed external light sources.
- Wide operating temperature range from -40°C to 85°C for robust performance in varied environments.
- Programmable interrupt function with user-defined upper and lower threshold settings for efficient system control.
Out of stock
The Grove I2C Color Sensor v2.0 utilizes a 4×4 array of filtered photodiodes (red, green, blue, and clear) paired with integrated 16-bit analog-to-digital converters. This architecture enables precise measurement of color chromaticity for both ambient light and reflected light from objects. The digital I2C output provides stable, noise-resistant data transmission.
Featuring a SYNC input, the module allows for synchronous integration cycles with external pulsed light sources, eliminating errors from ambient light fluctuations. Its wide operating temperature range and RoHS-compliant construction ensure reliable performance in industrial, educational, and prototyping applications requiring consistent color identification.
Additional Information
| Weight | 0.011 kg |
|---|---|

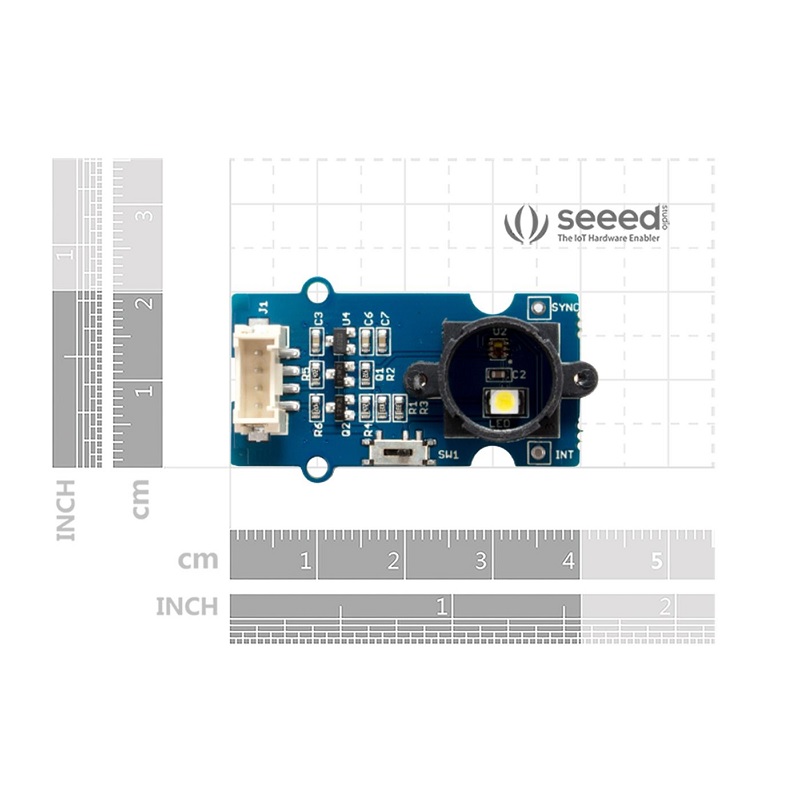

| Dimensions | 4.2 × 2.3 × 1 cm |
