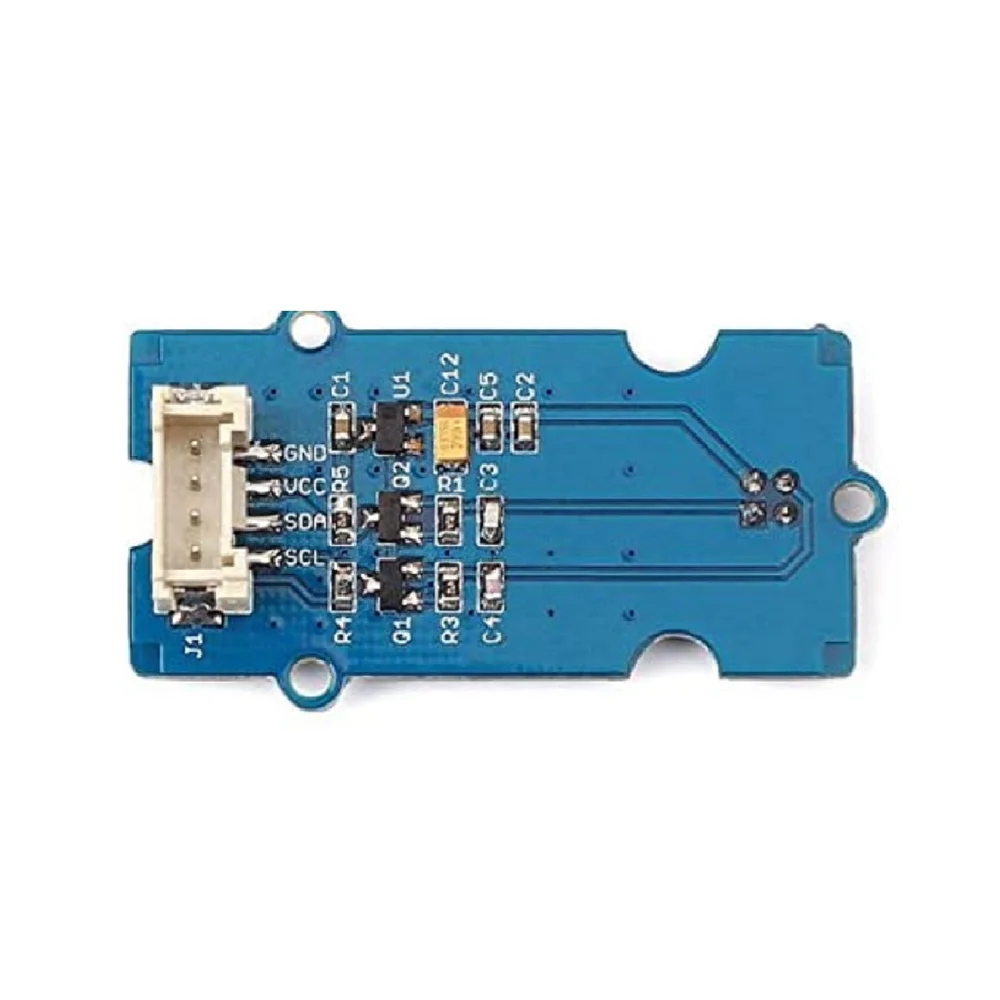

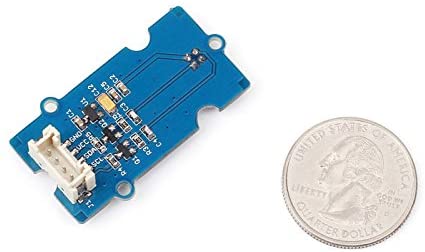

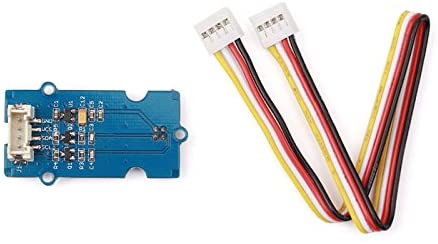

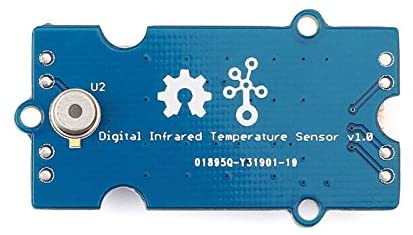

Seeed Studio Studio Grove Digital Infrared Temperature Sensor Module with JST Cable
The Seeed Studio Studio Grove Digital Infrared Temperature Sensor is a non-contact temperature measurement module based on the MLX90615 IR thermopile sensor, designed for easy integration with Arduino, Raspberry Pi, and other 3.3V microcontroller platforms via its Grove-compatible JST connector.
Features
- Non-contact temperature sensing via MLX90615 thermopile detector.
- Wide object temperature range from -40°C to +115°C.
- High accuracy of ±1°C and a measurement resolution of 0.02°C.
- Low-power operation at 1.4-1.5mA from a 2.6-3.4V supply.
- Grove-compatible JST connector for plug-and-play system integration.
Out of stock
This sensor module integrates the MLX90615 infrared thermopile detector and signal conditioning ASIC into a single package, providing a calibrated digital temperature reading via the SMBus (System Management Bus) protocol. The onboard 16-bit ADC and DSP unit enable precise temperature measurements with embedded emissivity compensation, making it suitable for applications requiring non-invasive thermal monitoring.
The module is designed for low-power embedded systems and supports daisy-chaining of up to 127 sensors on a common two-wire bus. Its compact form factor and Grove ecosystem compatibility simplify prototyping and integration into IoT devices, environmental monitoring stations, and industrial control systems.
Additional Information
| Weight | 0.02 kg |
|---|---|
| Dimensions | 4 × 2 × 0.96 cm |
