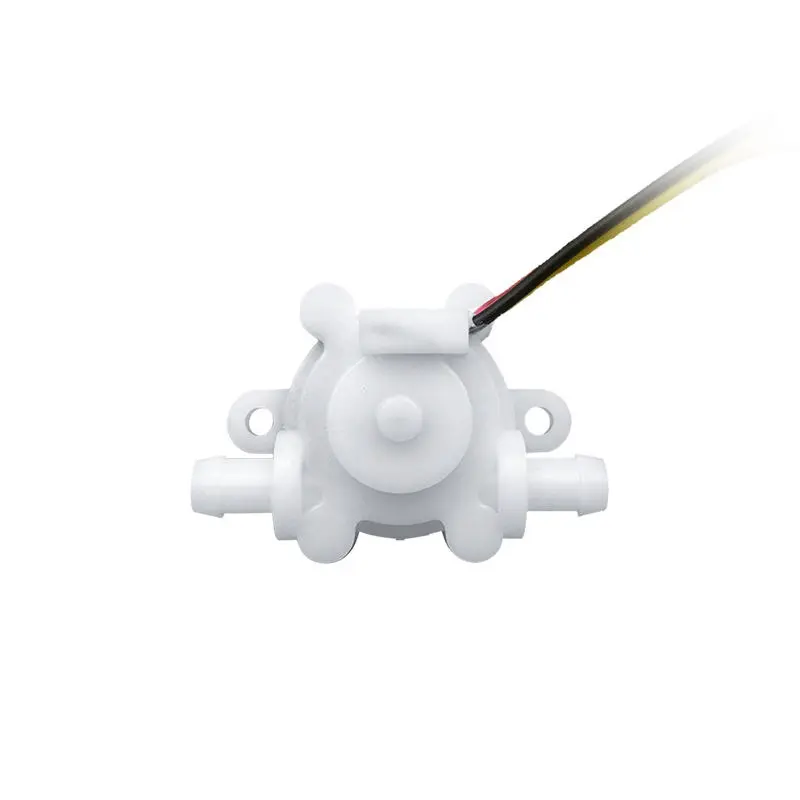

Saier HZ06CC Water Flow Sensor (0.4–2.0 L/min) - DC 4.5-18V Input
The Saier HZ06CC is a compact turbine-based water flow sensor designed for precise liquid flow rate monitoring from 0.4 to 2.0 L/min. It operates on a wide 4.5-18V DC input, providing both analog and digital output signals for easy integration with microcontrollers like Arduino, Raspberry Pi, and industrial PLCs.
Features
- Turbine-based sensing for accurate flow measurement from 0.4 to 2.0 liters per minute.
- Wide operating voltage range of 4.5-18V DC with low current consumption (≤15mA).
- Compact design with robust construction for reliable long-term performance in tight spaces.
- Provides flexible analog or digital output signals for versatile system integration.
- Suitable for monitoring both liquids and gases within its specified pressure range (≤1.20 MPa).
Out of stock
The Saier HZ06CC flow sensor employs a precision turbine mechanism to translate fluid velocity into a measurable electrical signal. As fluid passes through the sensor body, it spins an internal rotor, generating a pulse or analog voltage output proportional to the flow rate. This electromechanical principle ensures consistent and reliable readings for process monitoring.
Engineered for durability, the sensor features a housing designed to withstand standard water pressures up to 1.20 MPa. Its wide input voltage compatibility from 4.5V to 18V DC makes it suitable for a variety of power supplies, from battery-operated portable devices to standard 12V or 5V regulated systems. The low current draw minimizes power consumption in always-on monitoring applications.
Additional Information
| Weight | 0.022 kg |
|---|---|
| Dimensions | 10 × 12 × 4 cm |
