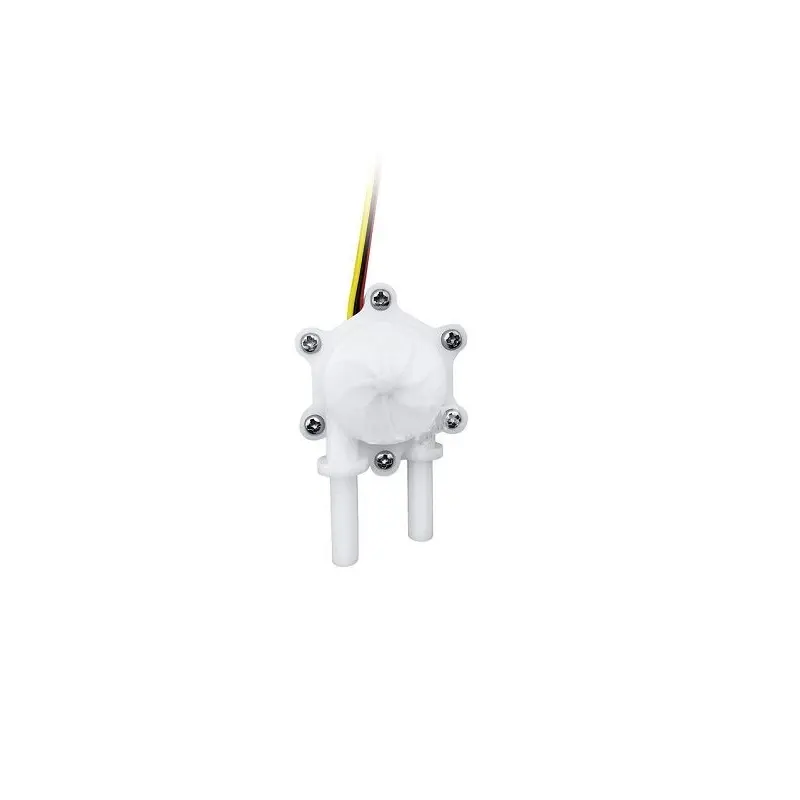

Saier HW06K Water Flow Sensor (0.3–3.5 L/min, 4.5–18V)
The Saier HW06K is a compact turbine-based water flow sensor designed for precise liquid flow measurement from 0.3 to 3.5 L/min. Operating on a 4.5–18V DC supply, it provides both analog and digital output signals for easy integration with microcontrollers like Arduino, Raspberry Pi, and industrial PLCs.
Features
- Turbine-based sensing for accurate flow rate measurement (0.3–3.5 L/min).
- Wide operating voltage range (DC 4.5–18V) with low current consumption (≤15mA).
- Provides both analog and digital output options for flexible system integration.
- Durable construction suitable for monitoring water and compatible gases.
- Compact design for easy installation in confined spaces.
Out of stock
The Saier HW06K Water Flow Sensor employs a precision turbine mechanism to translate fluid velocity into a measurable electrical signal. As liquid passes through the sensor body, it spins an internal rotor, generating a Hall effect-based pulse output proportional to the flow rate. This design ensures reliable and repeatable measurements across its specified range.
Engineered for robust performance, the sensor features a durable housing capable of withstanding working pressures up to 1.20 MPa. Its electrical isolation is rated with an insulation resistance greater than 100 MΩ and a dielectric strength of AC 500V at 50Hz, making it suitable for a variety of embedded and industrial control applications where signal integrity and safety are paramount.
Additional Information
| Weight | 0.029 kg |
|---|---|
| Dimensions | 10 × 8 × 3 cm |
