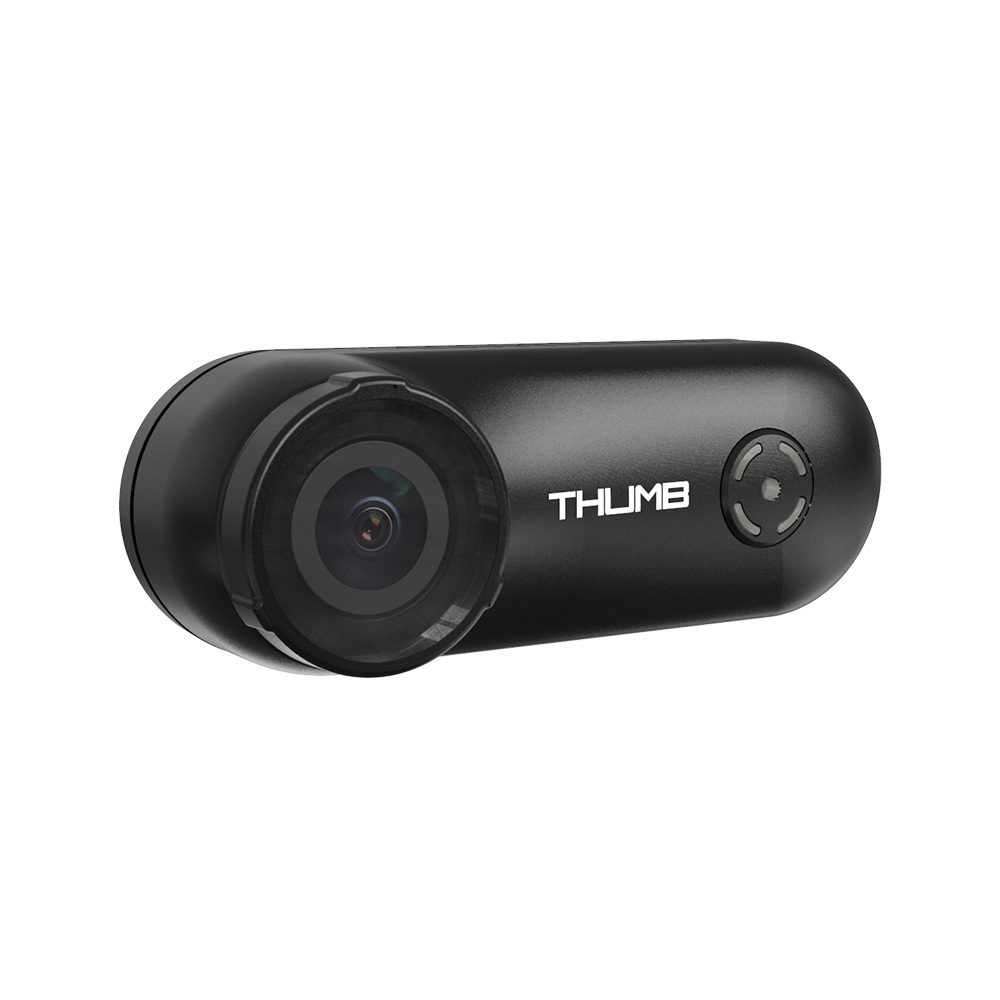

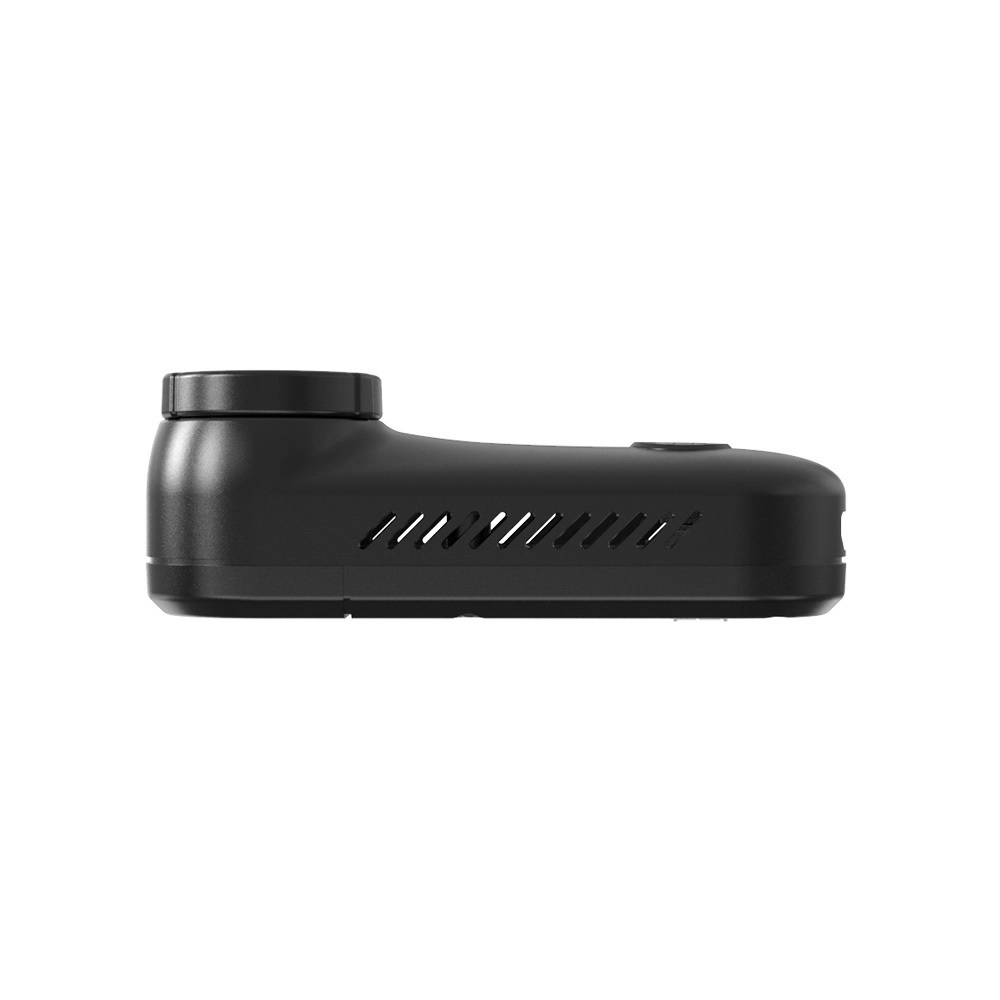

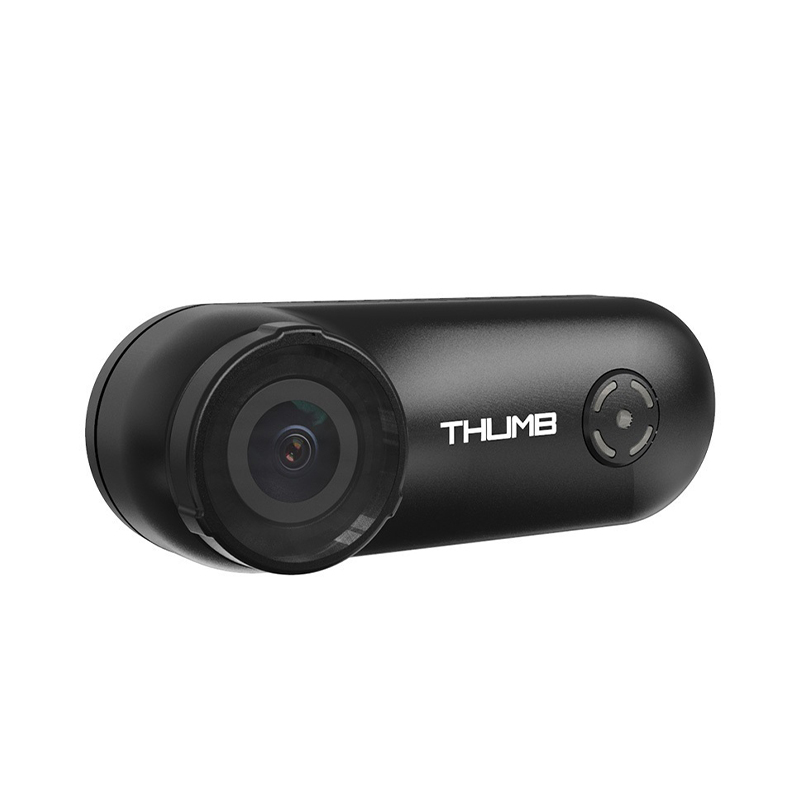

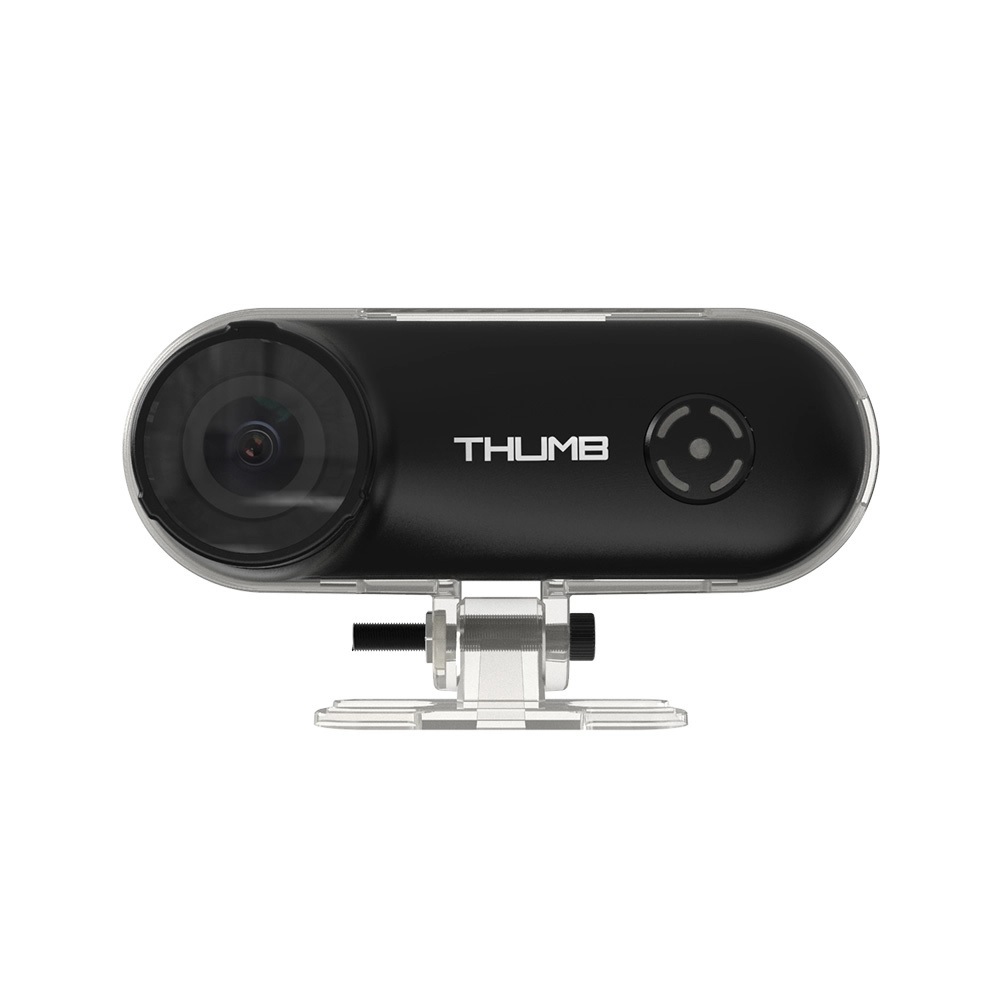

RunCam Thumb 1080P Mini Action Camera

₹4,753.00 (Inclusive of all taxes)
Out of Stock

The RunCam Thumb is a 1080p 60FPS mini action camera designed for micro FPV drones, featuring a built-in gyroscope for Gyroflow stabilization and powered via 5V USB or onboard power port for extended flight recording.

Features

  • Records 1080p video at 60 frames per second for smooth, high-definition footage.
  • Integrated gyroscope enables post-flight stabilization using Gyroflow software.
  • Ultra-lightweight design at 9.8 grams minimizes impact on micro drone flight performance.
  • Powered by 5V via USB or dedicated power port, compatible with common FPV drone power systems.
  • Supports microSD cards up to 128GB for extended recording sessions.

Out of stock

Description

The RunCam Thumb 1080P Mini Action Camera is engineered for pilots seeking a lightweight, high-quality recording solution for micro and nano FPV drones. Its compact form factor and sub-10g weight ensure minimal impact on flight dynamics while delivering full HD video capture.

Designed for integration into tight builds, it features a 150-degree field of view lens and records in MP4 format at a 20Mbps bitrate. The camera includes a built-in microphone for audio capture and operates with low power consumption, drawing 280mA at 5V during recording, making it suitable for battery-conscious applications.

Key Features

  • High-definition 1080p60 sensor with a wide 150-degree field of view for immersive footage.
  • Onboard gyroscope records motion data for advanced software stabilization via Gyroflow.
  • Durable, compact aluminum alloy housing measuring 52x13x19mm for robust protection.

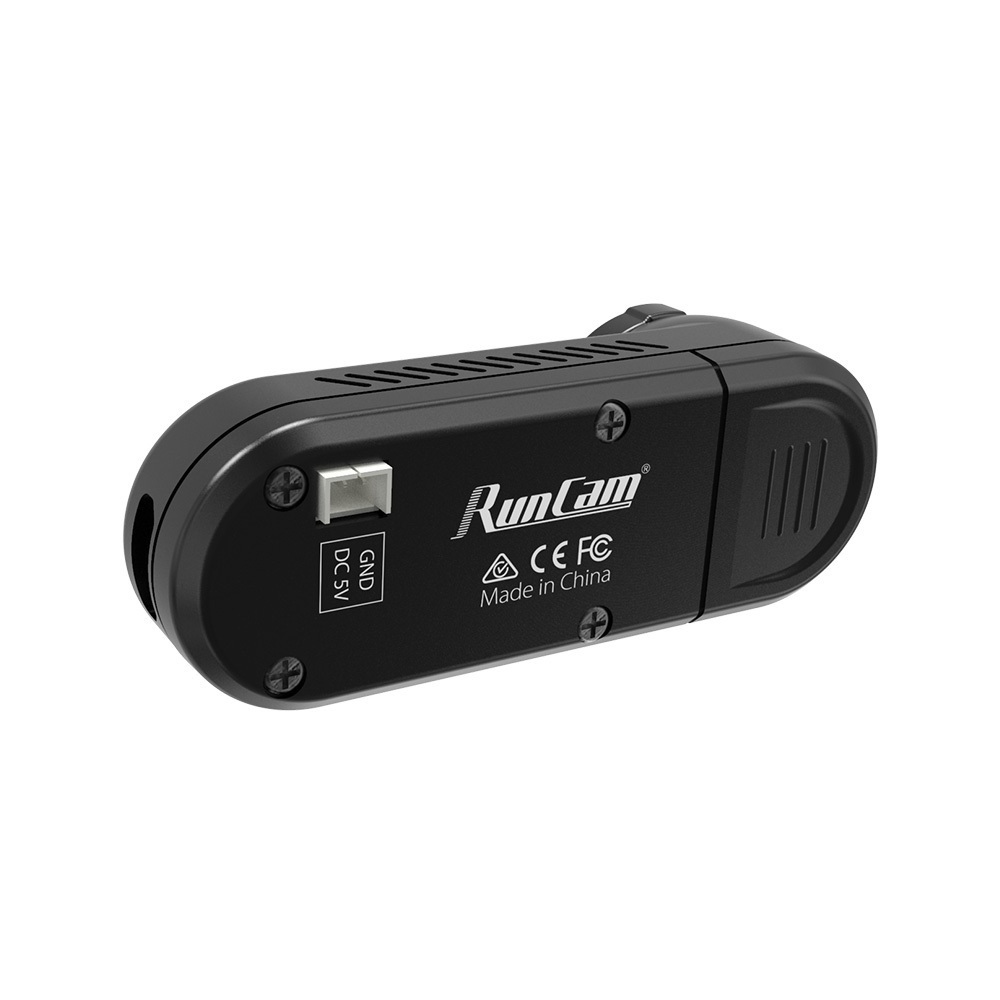

  • Dual power input options via Micro USB port or dedicated 5V solder pad for flexible installation.
  • Optimized power management with standby and recording modes to conserve flight pack energy.
  • Direct file output in MP4 format simplifies post-production workflow and sharing.

Applications

  • Primary or secondary recording camera for 2- to 3-inch micro FPV freestyle and cinewhoop drones.
  • Lightweight HD footage capture for ultralight long-range or exploratory micro quadcopters.
  • Gyroflow-stabilized video source for tiny whoop racing and indoor flying sessions.
  • Compact action cam for DIY micro aerial photography and videography projects.

Technical Specifications

Model NameRunCam Thumb
Resolution1080P @ 60FPS
Video FormatMP4
Video Bitrate20Mbps
Field of View (FOV)150°
GyroscopeBuilt-in (for Gyroflow)
Operating Voltage5.0V
Current Consumption (Recording)280mA @ 5V
Storage SupportMicro SD Card (up to 128GB)
InterfaceMicro USB
AudioBuilt-in Microphone
Dimensions (L x W x H)52mm x 13mm x 19mm
Weight9.8g

Frequently Asked Questions

How do I power the RunCam Thumb on my drone?

The RunCam Thumb operates on 5V DC. You can power it directly from your flight controller's 5V BEC pad via its dedicated power wires or through its Micro USB port using a suitable adapter cable. Ensure your power source can supply at least 300mA for reliable recording.

Does the RunCam Thumb require a memory card to work?

Yes, the camera requires a microSD card (Class 10 or higher recommended) to record video. It supports cards up to 128GB capacity. Format the card to FAT32 before first use for optimal compatibility and performance.

How do I use the Gyroflow stabilization feature?

The built-in gyroscope records motion data directly to the video file. After your flight, import the MP4 file into the free Gyroflow desktop software. The software will automatically detect the gyro data and apply advanced stabilization, allowing you to correct for drone vibrations and movements.

Package Includes

  • 1 x RunCam Thumb 1080P Mini Action Camera

Additional Information

Weight 0.0098 kg
Dimensions 5.2 × 1.3 × 1.9 cm
