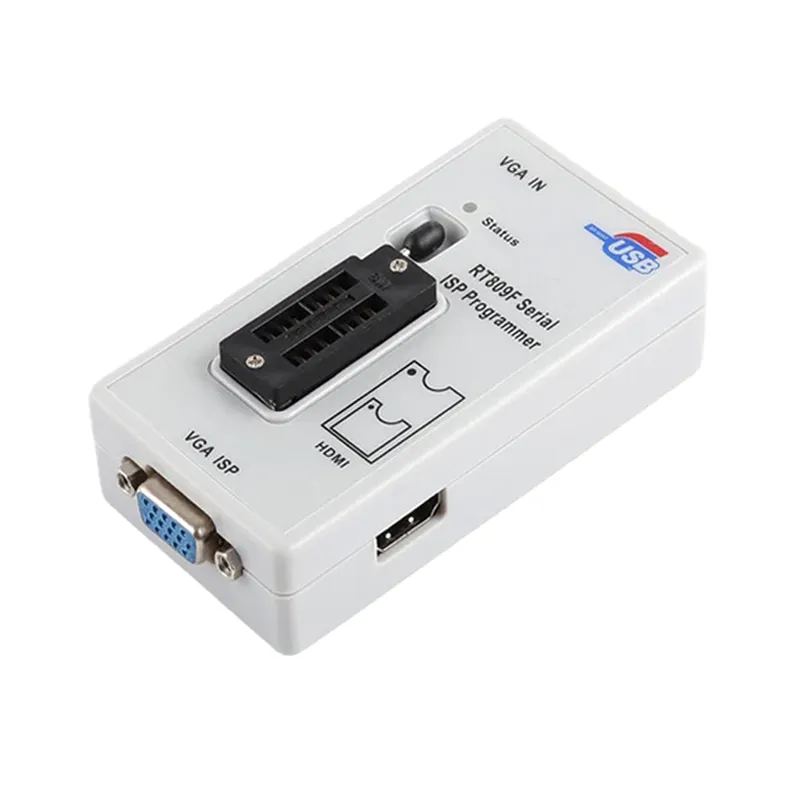

RT809F Serial ISP Programmer

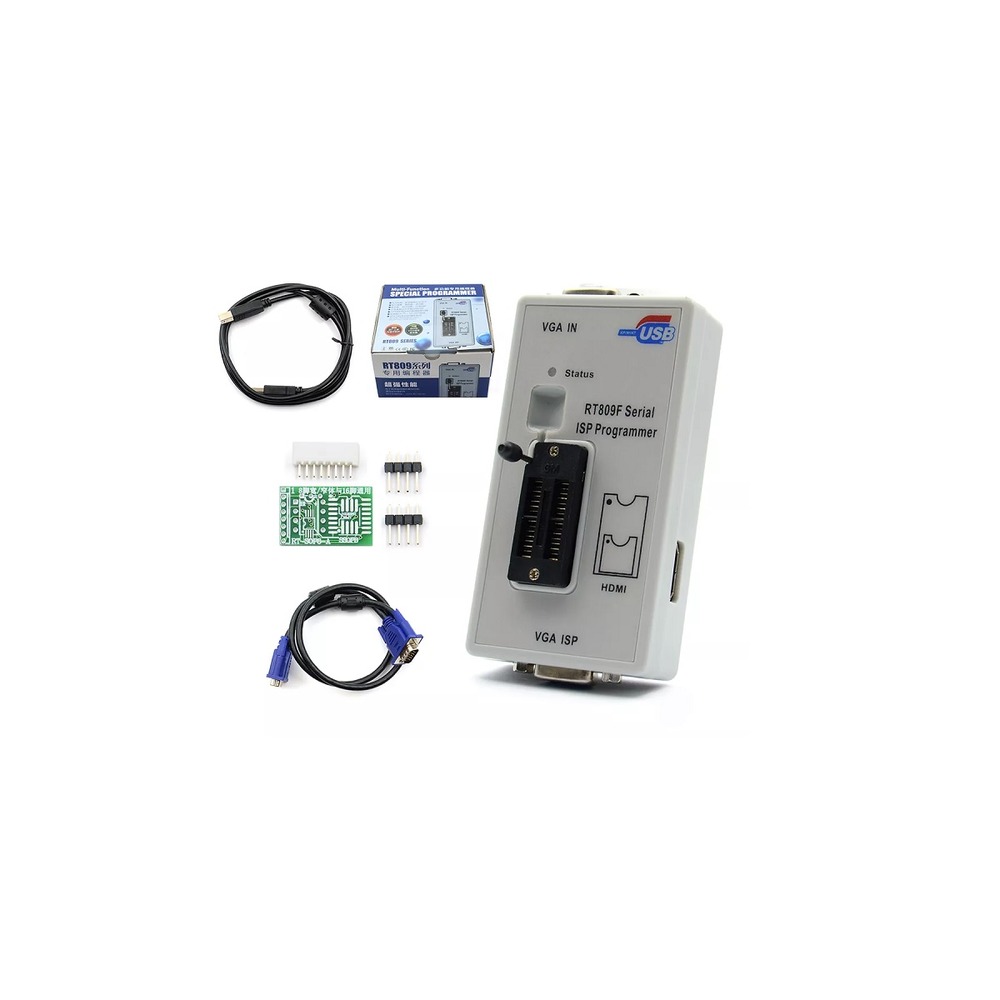

RT809F Serial ISP Programmer - Image 2
SKU: SBCD-0808
📋 GST Invoice Available

RT809F Serial ISP Programmer

₹4,769.00 (Inclusive of all taxes)
Out of Stock

The RT809F Serial ISP Programmer is a versatile, high-speed tool for in-system programming and flashing of various microcontrollers and ICs. Ideal for embedded system development, prototyping, and firmware updates across a wide range of components including AVR, 8051, PIC, and STM32 families.

Features

  • High-speed In-System Programming (ISP) for microcontrollers and ICs.
  • Extensive compatibility with AVR, 8051, PIC, STM32, and various memory chips.
  • USB-powered design for simplified connectivity and portable use.
  • Features FPGA internal control for future software upgrades and expanded device support.
  • Ideal for embedded system development, prototyping, and firmware updates.

Out of stock

Description

The RT809F Serial ISP Programmer is a robust and versatile tool engineered for developers and engineers working with embedded systems. It facilitates efficient in-system programming (ISP) and flashing of a broad spectrum of microcontrollers and integrated circuits without needing to remove them from their development boards. Its cost-effective design integrates seamlessly with modern computing environments, communicating directly via USB2.0 for quick data transfer and simplified driver installation.

Utilizing FPGA internal control, the RT809F ensures expandability and long-term utility, allowing for software upgrades that enhance compatibility with new models and technologies. This programmer eliminates the need for external power adapters by drawing power directly from its USB connection, making it highly portable and convenient for both laboratory and field use. Its robust design includes anti-static and port IO protection measures, safeguarding the programmer and target devices during operation, while the removable locking seat simplifies component replacement.

Key Features

  • Supports a broad array of microcontrollers including AVR, 8051, PIC, and STM32 families.
  • Compatible with computer motherboards, laptops, LCDs, and router chips.
  • Programs DDR1/DDR2/DDR3 SPD memory chips and notebook password/battery chips.
  • Supports full ranges of IIC bus EEPROM (24 series), SPI bus FLASH (25, 26 series), and Micro Wire bus (93 series) memory.
  • Exclusive support for RTD2120 chip dual-BANK online read and write functions.
  • Enables online read and write of LCD monitors/TVs DDC-EDID data and laptop screen EDID data.
  • USB-powered for portability and eliminating bulky power adapters.
  • FPGA internal control allows for easy software and compatibility upgrades.
  • Locking seat interface with anti-static and IO protection measures for reliability.

Applications

  • Embedded System Development: Ideal for programming microcontrollers in automotive electronics, robotics, and IoT devices.
  • Prototyping and Debugging: Facilitates rapid testing and debugging of custom hardware solutions.
  • Firmware Updates: Enables easy reprogramming and system upgrades for existing devices in the field.
  • Computer Hardware Repair: Supports programming of chips on motherboards, laptops, and LCDs.

Technical Specifications

Item TypeProgrammer
Input Voltage5V
System SupportedWinXP / Win7 / Win8 / Win2003 / Win2008 / WinVista
Communication InterfaceUSB2.0
ControlFPGA internal control

Frequently Asked Questions

What types of chips can the RT809F programmer support for in-system programming?

The RT809F supports a wide range of chips, including microcontrollers from the AVR, 8051, PIC, and STM32 families. It also handles various memory chips such as IIC bus EEPROM (24 series), SPI bus FLASH (25, 26 series), and Micro Wire bus (93 series), in addition to DDR SPD memory.

Is an external power adapter required to operate the RT809F Serial ISP Programmer?

No, the RT809F programmer is conveniently powered directly via its USB 2.0 interface. This design eliminates the need for a separate, bulky power adapter, enhancing its portability and ease of use for both desktop and field applications.

How does the RT809F ensure compatibility with future chip models or software updates?

The RT809F incorporates FPGA internal control, allowing for firmware and software updates via the PC application. This feature ensures the programmer can adapt to new chip architectures and expanded functionalities, maintaining its relevance and compatibility with emerging technologies over time.

What operating systems are compatible with the RT809F programmer software?

The RT809F programmer software supports a range of Windows operating systems, including WinXP, Win7, Win8, Win2003, Win2008, and WinVista. This broad compatibility ensures that most developers can integrate the programmer into their existing development environments without issue.

Can the RT809F be used for debugging, or is it strictly for programming?

While primarily a programmer, its in-system programming capabilities often assist in debugging by allowing quick firmware iterations and testing without removing components. Developers can flash new code rapidly to identify and fix issues, making it an invaluable tool during the prototyping and development phases.

Package Includes

  • 1 x RT809F Serial ISP Programmer

Additional Information

Weight 0.274 kg
Dimensions 13 × 12 × 7 cm
