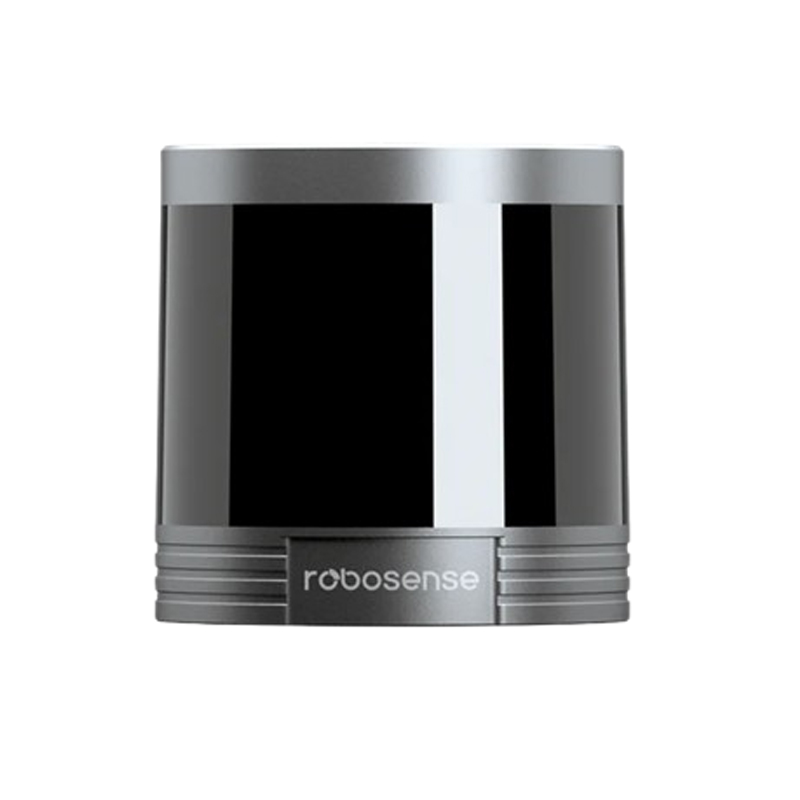

RoboSense Helios-32 H32F26 LiDAR Sensor, 26° FOV, 32 Lines, 150m Range, 905nm, Automotive Ethernet

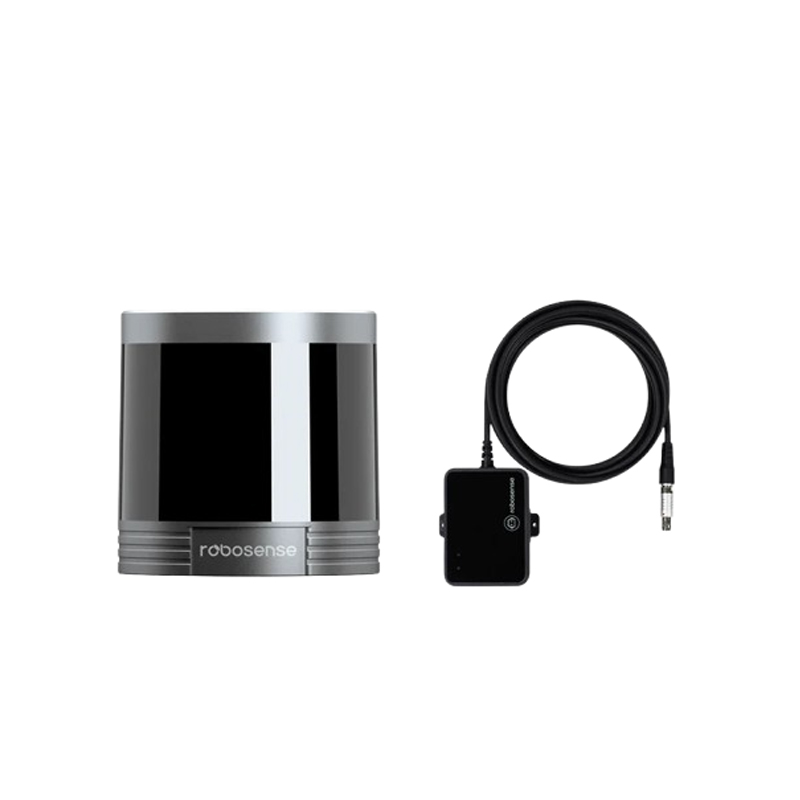

RoboSense Helios-32 H32F26 LiDAR Sensor, 26° FOV, 32 Lines, 150m Range, 905nm, Automotive Ethernet - Image 2
RoboSense Helios-32 H32F26 LiDAR Sensor, 26° FOV, 32 Lines, 150m Range, 905nm, Automotive Ethernet - Image 3
SKU: SENS-1428
📋 GST Invoice Available

RoboSense Helios-32 H32F26 LiDAR Sensor, 26° FOV, 32 Lines, 150m Range, 905nm, Automotive Ethernet

₹354,739.00 (Inclusive of all taxes)
Out of Stock

The RoboSense Helios-32 H32F26 is a 32-line automotive-grade LiDAR sensor delivering high-density 3D point clouds up to 150 meters via 905nm Class-1 eye-safe laser. It features a 26° vertical FOV, 1 cm precision, and outputs data via UDP over Automotive Ethernet (100Base-T1), making it suitable for autonomous vehicles, robotics, and advanced mapping systems.

Features

  • 32-beam scanning LiDAR with up to 150m maximum detection range
  • High-density point cloud generation up to 1.152 million points/second (dual return)
  • Automotive-grade ruggedness with IP67 & IP6K9K protection and -40°C to +60°C operation
  • Ethernet (UDP) output with 100Base-T1 interface for reliable, high-speed data transmission
  • Compact, modular design offering a 29% smaller footprint than previous generation models

Out of stock

Description

The RoboSense Helios-32 H32F26 is a solid-state 3D LiDAR sensor engineered for demanding perception tasks in autonomous driving and mobile robotics. Utilizing a 905nm wavelength Class-1 eye-safe laser array, it generates precise, real-time environmental models with a typical range precision of 1 cm. Its 32-line configuration scans a 360° horizontal by 26° vertical field of view, with configurable vertical resolution down to 0.5°.

Designed for system integration, the sensor communicates via UDP packets over a robust 100Base-T1 Automotive Ethernet interface, supporting synchronization protocols like PTP/gPTP and 1PPS. Its construction meets stringent IP67 and IP6K9K standards for dust and water ingress, ensuring reliable operation across extreme temperatures from -40°C to +60°C. The modular architecture and optimized performance-to-cost ratio make it a versatile solution for high-volume applications.

Key Features

  • Long-Range High-Precision Sensing: Detects objects up to 150 meters away with a typical range precision of 1 centimeter, providing accurate spatial data for navigation and obstacle avoidance.
  • High-Resolution Point Cloud: Delivers up to 1.152 million points per second in dual-return mode, enabling detailed environmental reconstruction and object classification.
  • Rugged Automotive-Grade Design: Features IP67 and IP6K9K protection ratings and operates across a -40°C to +60°C temperature range, built for harsh outdoor and vehicular environments.
  • Advanced Data Interface: Outputs real-time point cloud data via UDP over a 100Base-T1 Automotive Ethernet connection, ensuring low-latency, noise-resistant communication.
  • Configurable Performance Modes: Supports selectable frame rates (5/10/20 Hz) and rotational speeds (300/600/1200 RPM), allowing optimization for power consumption or data density.
  • Environmental Resilience: Incorporates advanced algorithms for noise reduction in challenging conditions like rain, fog, dust, and snow.
  • Compact & Modular Form Factor: Engineered to be 29% smaller than previous-generation 32-line LiDARs, facilitating easier integration into vehicle roofs and robotic platforms.

Applications

  • Perception and navigation systems for autonomous vehicles and shuttles.
  • 3D mapping and environment modeling for robotics and unmanned ground vehicles (UGVs).
  • Infrastructure inspection and surveying for construction and civil engineering.
  • Object detection and classification in intelligent transportation systems (ITS).
  • Simultaneous Localization and Mapping (SLAM) for automated guided vehicles (AGVs) and drones.

Technical Specifications

Model NumberHelios-32 H32F26
Laser Type / Wavelength905 nm, Class 1 Eye-Safe
Number of Lines / Beams32
Horizontal Field of View360°
Vertical Field of View26° (-16° to +10°)
Vertical Angular ResolutionUp to 0.5°
Horizontal Angular Resolution0.1°, 0.2°, or 0.4° (configurable)
Maximum Detection Range150 m
Range Precision1 cm (typical)
Blind Spot≤ 0.2 m
Point Cloud RateUp to 1.152 million points/sec (dual return)
Frame Rate5 Hz, 10 Hz, or 20 Hz (configurable)
Rotational Speed300, 600, or 1200 RPM (configurable)
Data OutputUDP packets over Ethernet (100Base-T1)
Operating Voltage9 - 32 V DC
Typical Power Consumption12 W
Operating Temperature-40°C to +60°C
Storage Temperature-40°C to +85°C
Ingress Protection (IP) RatingIP67, IP6K9K
Diameter100 mm
Weight1000 g

Frequently Asked Questions

What is the communication interface and protocol for the Helios-32 LiDAR?

The Helios-32 outputs real-time point cloud data via UDP packets transmitted over a 100Base-T1 Automotive Ethernet physical interface. This provides a robust, high-bandwidth, and low-latency connection suitable for vehicular networks. The sensor also supports synchronization inputs like 1PPS and timing protocols (PTP/gPTP) for multi-sensor fusion setups.

What power supply does the Helios-32 LiDAR require?

The sensor operates from a wide-range DC input of 9 to 32 volts, making it compatible with standard 12V and 24V vehicle electrical systems. Its typical power consumption is 12 watts. The included power adapter module facilitates connection to mains AC power for benchtop testing and development.

How is the Helios-32 LiDAR mounted and configured?

The sensor features a 100mm diameter cylindrical housing with integrated mounting points for the supplied screws. Configuration, including frame rate, horizontal resolution, and operating mode, is managed via a web-based interface accessible over its Ethernet connection, allowing for easy setup and monitoring without proprietary software.

What environmental conditions can the Helios-32 LiDAR withstand?

Built to automotive standards, the Helios-32 is rated IP67 and IP6K9K for protection against dust and high-pressure water jets. It is designed to operate reliably in extreme temperatures from -40°C to +60°C and incorporates advanced signal processing to maintain performance in adverse weather conditions like rain, fog, and snow.

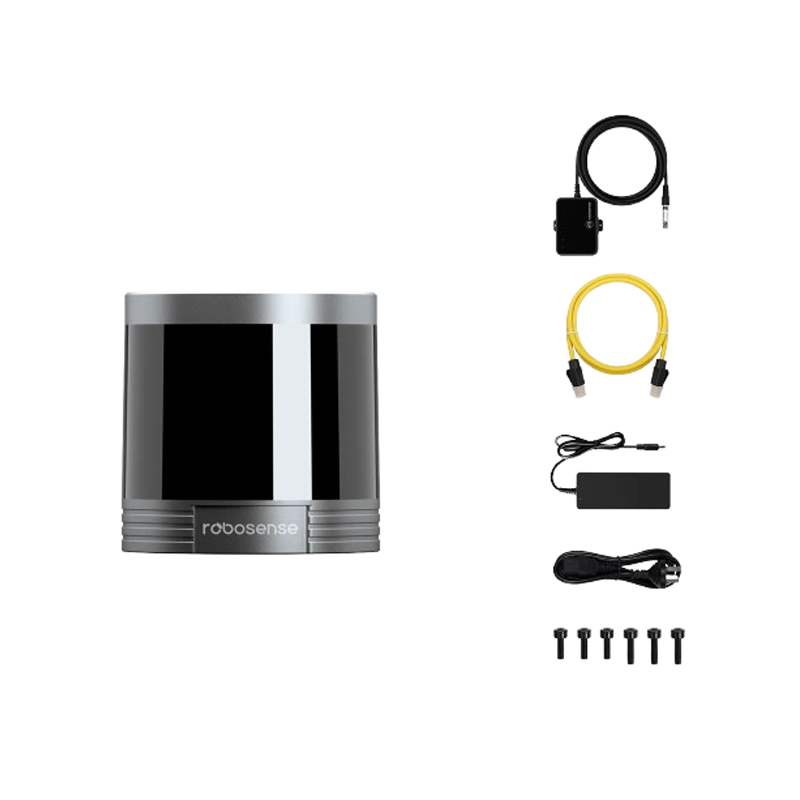

Package Includes

  • 1 x RoboSense Helios-32 H32F26 LiDAR Sensor
  • 1 x Black Data/Power Cable (Automotive Ethernet)
  • 1 x Black Extension Cable
  • 1 x Yellow Automotive Ethernet Cable
  • 1 x Power Adapter Module
  • 1 x AC Power Cord
  • 6 x Mounting Screws

Additional Information

Weight 1 kg
Dimensions 11 × 11 × 11 cm
