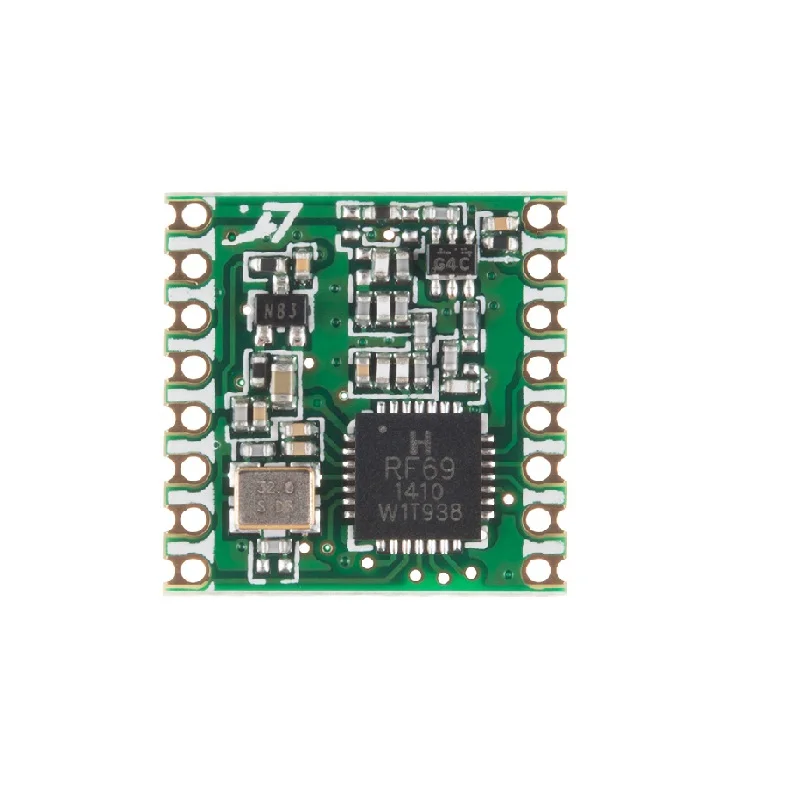

RFM69HCW Wireless Transceiver Module - 434MHz FSK/OOK

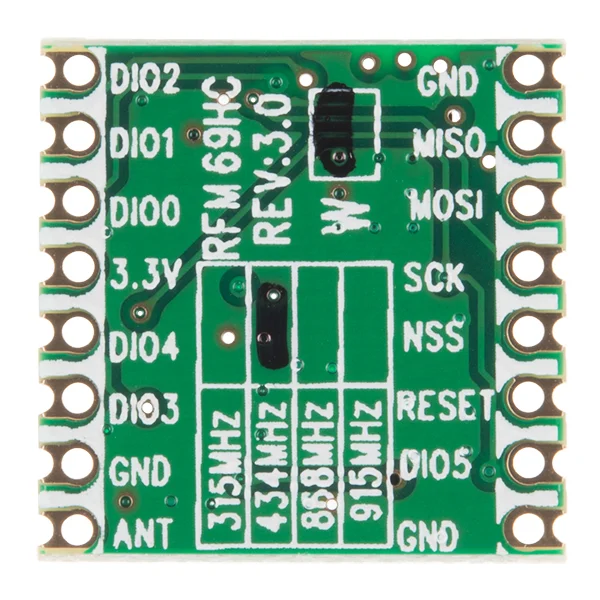

Connect the module's SPI pins (MISO, MOSI, SCK) and chip select (NSS) to your Arduino's corresponding SPI pins, plus power (3.3V) and ground. Use the popular RadioHead or LowPowerLab RFM69 library in the Arduino IDE. Initialize the library with your specific frequency (434MHz), node ID, and network ID. You must also connect a 50-ohm antenna, such as a quarter-wave whip, to the ANT pad for proper operation. The library handles packetization, encryption (AES), and reliable data transfer.

The practical range depends on data rate, output power, antenna type, and environment. At +13dBm output, a low data rate (1.2kbps), and with a simple wire antenna in an open field, you can achieve 500-800 meters line-of-sight. Through urban or indoor environments with walls, expect 50-200 meters. To maximize range, configure the library for the lowest reliable data rate and highest transmit power, and use an external antenna with proper gain mounted clear of obstructions. Range tests are recommended for your specific deployment.

Yes, the RFM69HCW is a full transceiver, capable of both transmitting and receiving. While it does not have built-in mesh routing logic, you can implement network topologies like star or peer-to-peer using its support for 256 networks and 255 nodes per network. For a true self-healing mesh, you would need to implement a routing protocol (e.g., a custom or adapted protocol) in your microcontroller firmware, using the module as the physical radio layer. Libraries like RadioHead provide basic addressing and relaying features to build such networks.

The module requires a clean 1.8V to 3.6V DC supply; 3.3V is typical. Current draw peaks at 45mA during transmission at full power and 16mA while receiving. To minimize consumption, leverage the module's sleep modes. Using the library commands, you can put the radio into standby or sleep mode, reducing current to below 1µA. Design your firmware to wake the radio periodically, send/receive data quickly, and return to deep sleep. A low-dropout regulator (LDO) or dedicated power management IC is recommended for battery-powered nodes to ensure stable voltage during RF bursts.
