Waveshare ESP32-C6 1.54-Inch e-Paper AIoT Dev Board
The Waveshare ESP32-C6 AIoT development board integrates a 1.54-inch e-paper display with a Wi-Fi 6/BLE 5/Zigbee/Thread-enabled RISC-V SoC, designed for low-power smart display and voice interaction projects compatible with ESP-IDF and Arduino IDE.
Features
- ESP32-C6 RISC-V processor (up to 160MHz) with 16MB flash for Wi-Fi 6, BLE 5, Zigbee 3.0, and Thread connectivity.
- 1.54-inch e-paper display with 200×200 resolution offers wide viewing angles and ultra-low power consumption, with 0.3s partial refresh.
- Integrated SHTC3 temperature/humidity sensor and ES8311 audio codec enable environmental monitoring and AI voice interaction applications.

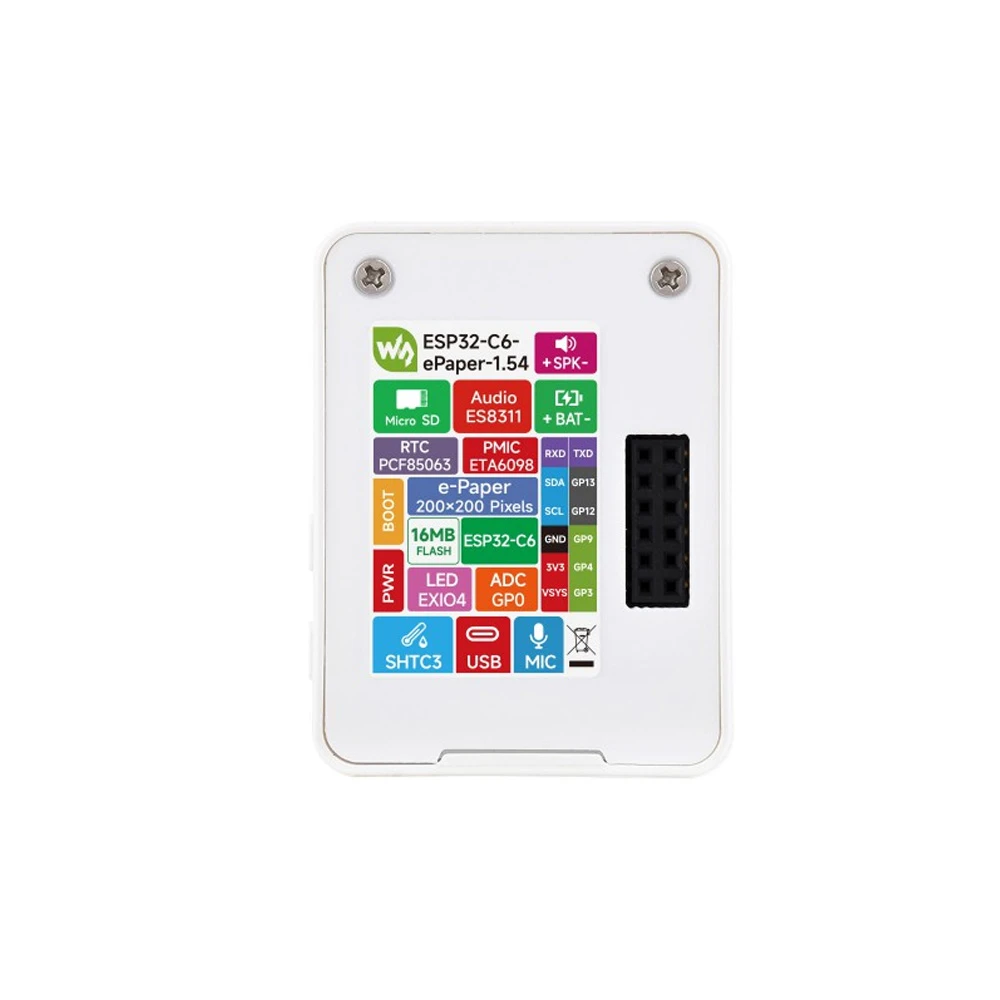

- Supports development via ESP-IDF and Arduino IDE, with expansion via TF card slot and 2×6-pin GPIO headers for rapid prototyping.
- Compact form factor (53×39.8×16.9mm) with Type-C USB and MX1.25 battery header for portable, battery-powered IoT devices.
Out of stock
The Waveshare ESP32-C6 1.54-inch e-Paper AIoT Development Board is a feature-rich platform for developing low-power, display-centric wireless IoT applications. At its core is the Espressif ESP32-C6, a 32-bit RISC-V processor capable of 160MHz operation, providing robust support for Wi-Fi 6, Bluetooth Low Energy 5, Zigbee 3.0, and Thread protocols, enabling seamless integration into diverse wireless mesh networks and smart home ecosystems.

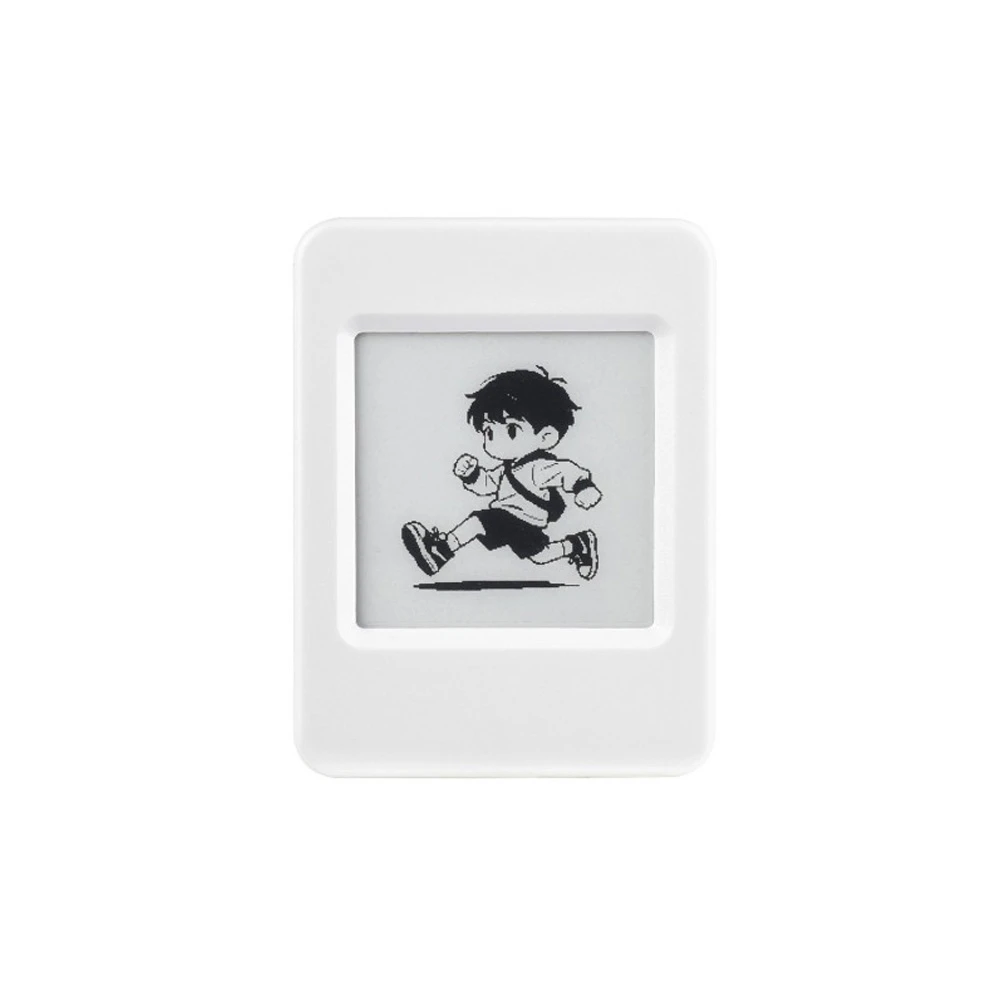

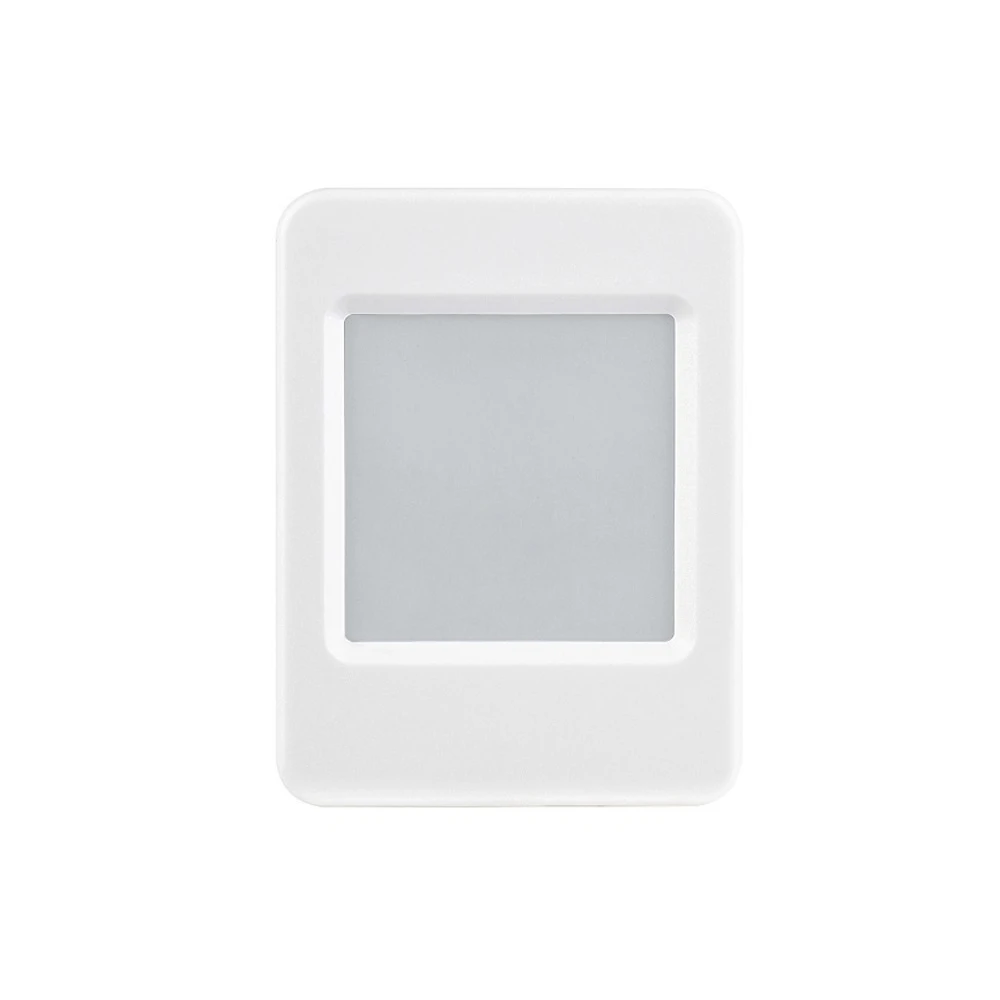

The board’s 1.54-inch e-paper display delivers a 200×200 pixel resolution with exceptional readability under direct sunlight and a viewing angle exceeding 170 degrees. Its SPI interface allows for efficient screen updates, with a full refresh in 2 seconds and a rapid 0.3-second partial refresh, minimizing power draw for dynamic content. Combined with the onboard SHTC3 environmental sensor and ES8311 audio codec, this board is engineered for interactive AIoT terminals, portable smart displays, and environmental monitoring stations.
Additional Information
| Weight | 0.026 kg |
|---|---|
| Dimensions | 3.98 × 5.3 × 1.69 cm |
