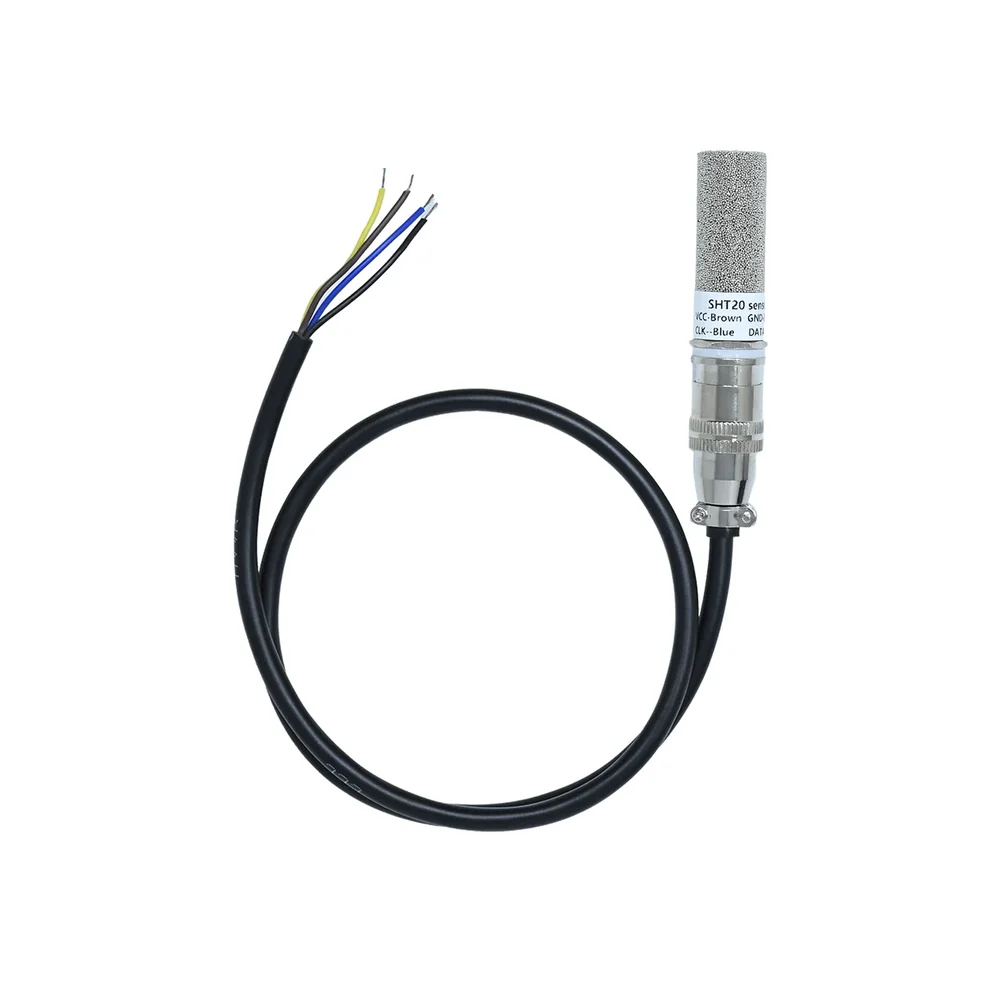

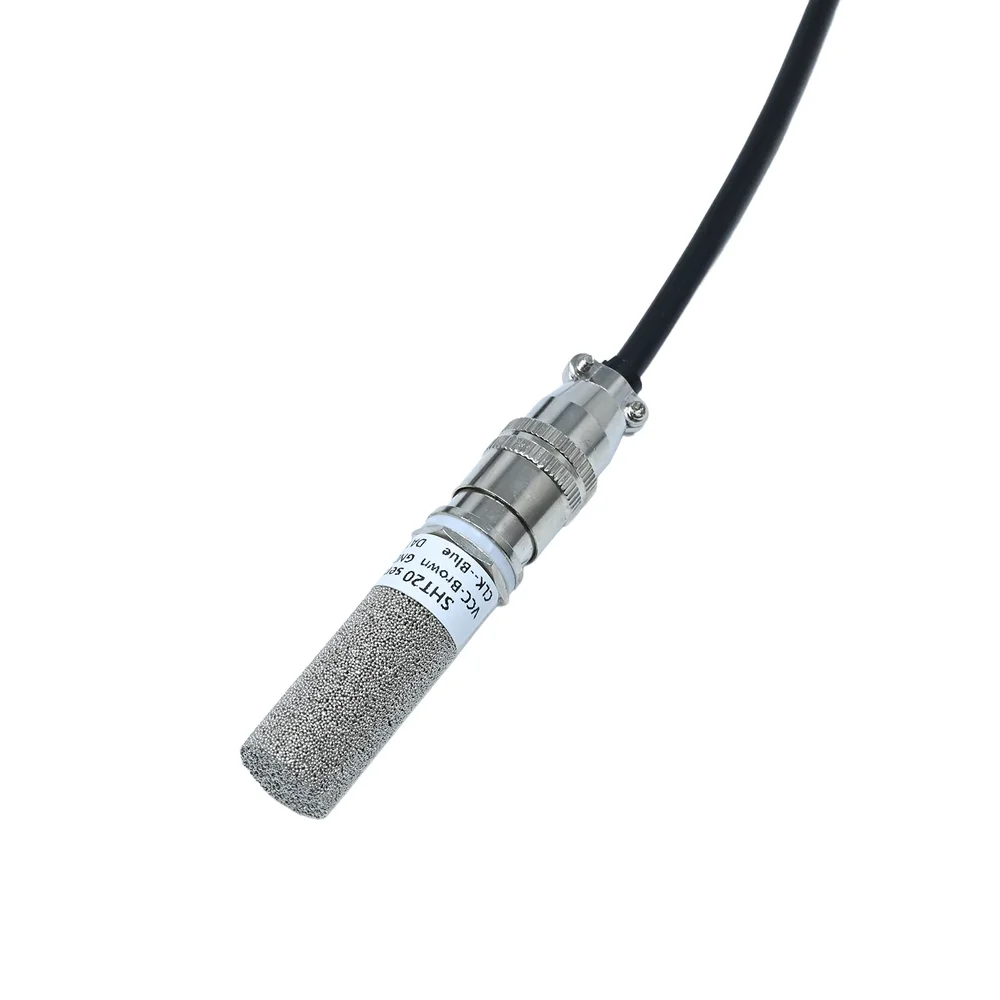

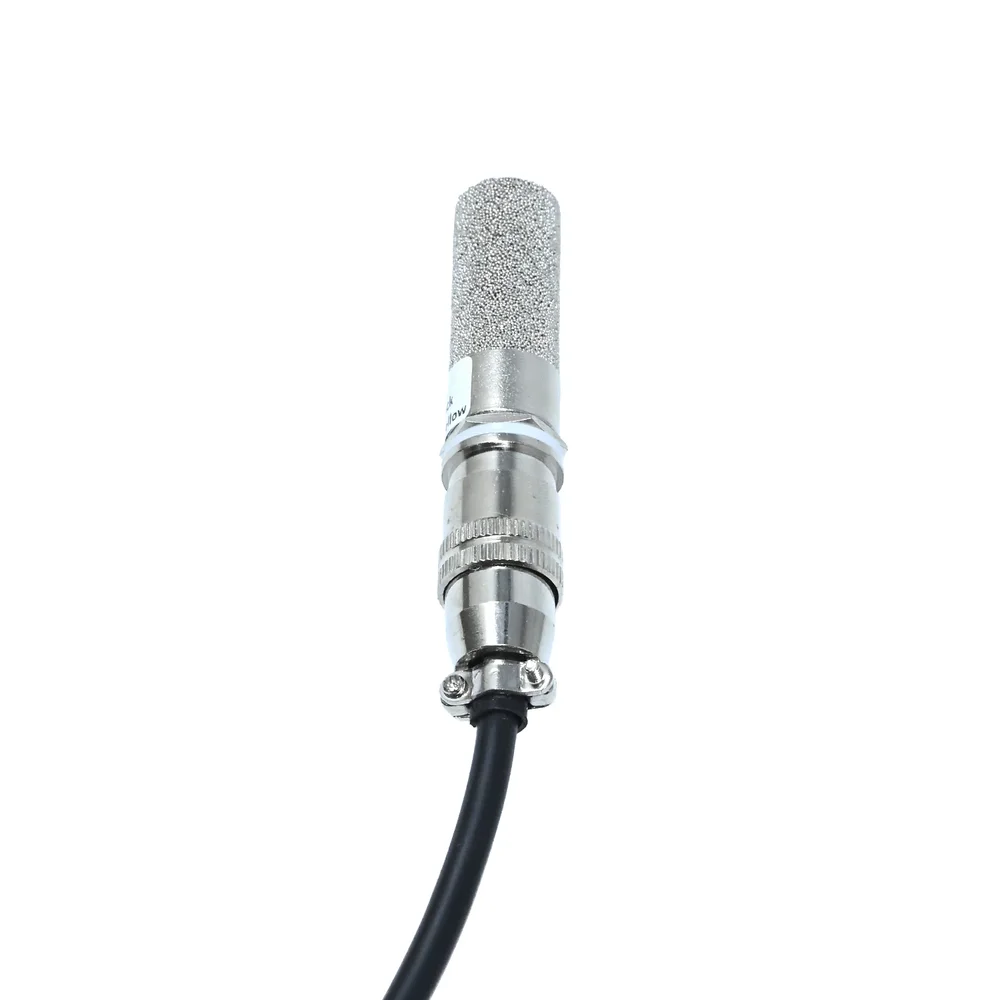

Renke SHT-77 Temperature Sensor Probe for SHT20 - 77mm Length, I2C Digital Output
The Renke SHT-77 is a 77mm extended-length temperature and humidity probe built around the Sensirion SHT20 digital sensor IC. It provides factory-calibrated I2C digital output for easy integration with microcontrollers like Arduino, Raspberry Pi, and industrial PLCs for precise environmental monitoring.
Features
- Extended 77mm probe length for deeper insertion into ducts or enclosures
- Features the Sensirion SHT20 digital sensor IC for high-accuracy readings
- Factory-calibrated I2C digital output simplifies system integration
- Wide operating temperature range from -40°C to +125°C
- Low power consumption, operating from 2.1V to 3.6V DC
Out of stock
The Renke SHT-77 probe integrates the Sensirion SHT20 CMOSens® chip, which combines a capacitive polymer humidity sensor and a band-gap temperature sensor. This digital sensor provides fully calibrated, linearized signals via the I2C interface, eliminating the need for external signal conditioning. The extended 77mm PE-bodied probe allows for measurement points deeper within equipment or environmental chambers.
Designed for stability and long-term reliability, the SHT20 IC offers 14-bit resolution and fast response times. The probe is suited for continuous monitoring applications in industrial automation, HVAC system control, and data-logging environments where consistent, accurate data is critical.
Additional Information
| Weight | 0.108 kg |
|---|---|
| Dimensions | 15 × 14 × 4 cm |
