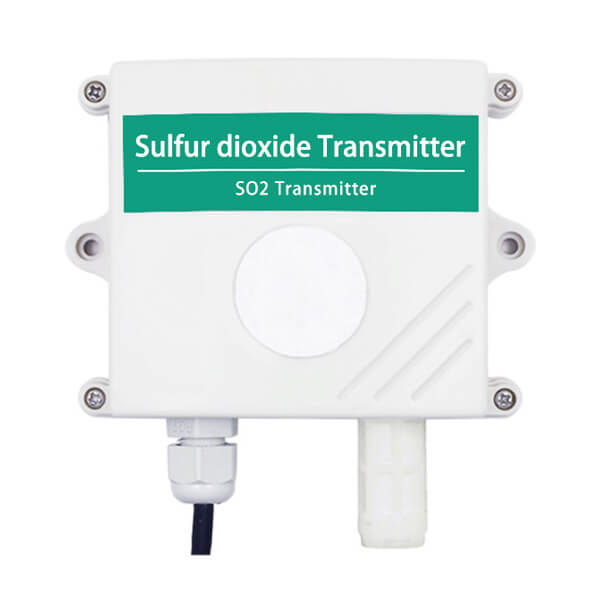

Renke RS-SO2-N01-2-20P-JK Sulfur Dioxide Sensor 0-20.00ppm - RS485 Modbus, 0-5V/0-10V/4-20mA Output
The Renke RS-SO2-N01-2-20P-JK is a wall-mounted sulfur dioxide (SO₂) gas sensor module with a 0-20 ppm measurement range. It features a multi-interface output (RS485 Modbus, 0-5V, 0-10V, 4-20mA) for seamless integration with industrial PLCs, SCADA systems, and data loggers, and operates from a wide 10-30V DC supply.
Features
- Electrochemical SO₂ sensing with high accuracy (±3% FS) and repeatability (±2%).
- Multi-interface output: RS485 Modbus, 0-5V, 0-10V, and 4-20mA analog signals.
- Wide operating voltage range of 10-30V DC for robust industrial deployment.
- Wall-mounted, waterproof housing (IP rating unspecified) for harsh field environments.
- Optional onboard OLED display for local, real-time concentration monitoring.
Out of stock
This Renke sulfur dioxide sensor utilizes an imported electrochemical sensing cell for stable and durable detection of SO₂ gas concentrations within a 0-20 ppm range. The sensor provides precise, real-time data with high accuracy (±3% of full scale) and excellent repeatability (±2%), making it suitable for critical environmental and industrial monitoring applications.
The module is designed for wall-mounted installation and features a protective, waterproof enclosure to withstand harsh field conditions. It supports multiple output signals—RS485 Modbus for networked systems and 0-5V, 0-10V, or 4-20mA analog outputs for direct connection to controllers—ensuring compatibility with a wide array of industrial automation and data acquisition platforms.
Additional Information
| Weight | 0.163 kg |
|---|---|
| Dimensions | 16 × 15 × 6 cm |
