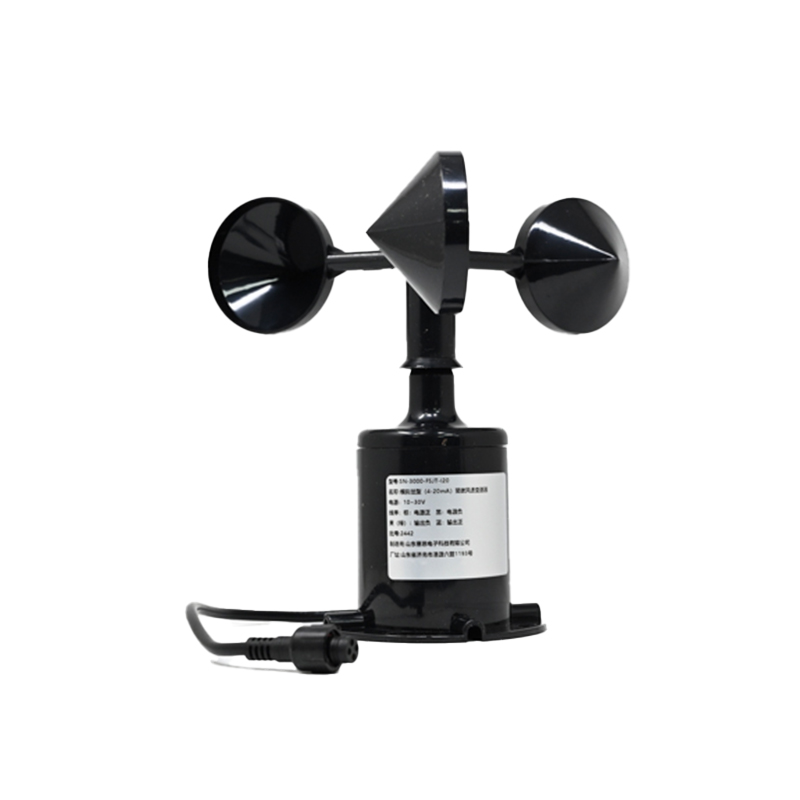

Pro-Range SN-3000-FSJT-N01 Wind Speed Sensor [Polycarbonate Shell, RS485 Modbus]

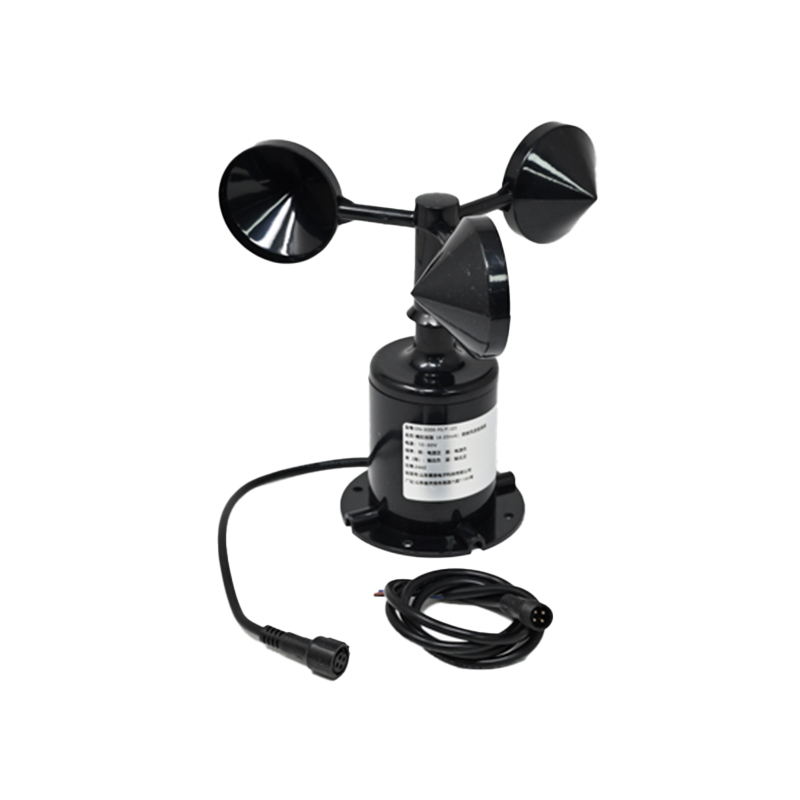

Pro-Range SN-3000-FSJT-N01 Wind Speed Sensor [Polycarbonate Shell, RS485 Modbus] - Image 2
SKU: SENS-0449
📋 GST Invoice Available

Pro-Range SN-3000-FSJT-N01 Wind Speed Sensor [Polycarbonate Shell, RS485 Modbus]

₹1,669.00 (Inclusive of all taxes)
Out of Stock

The Pro-Range SN-3000-FSJT-N01 is a professional-grade wind speed sensor featuring a robust polycarbonate shell and carbon fiber cups. It outputs data via RS485 Modbus RTU protocol, making it compatible with industrial PLCs, SCADA systems, and data loggers for precise meteorological and environmental monitoring.

Features

  • High-accuracy wind speed measurement from 0 to 70 m/s with 0.1 m/s resolution.
  • Durable polycarbonate housing and carbon fiber cups for long-term outdoor use.
  • Standard RS485 Modbus-RTU communication protocol for easy system integration.
  • Low-power operation (≤0.3W) from a wide 10-30V DC supply.
  • Bottom cable outlet design enhances waterproofing and eliminates connector aging issues.

Out of stock

Description

This sensor employs a traditional three-cup anemometer design, with cups constructed from high-strength carbon fiber for low inertia and a fast, accurate response. The internal signal processing unit converts rotational speed into a digital signal, providing reliable wind speed data. The polycarbonate shell offers excellent mechanical strength, UV resistance, and corrosion protection, ensuring durability in harsh environmental conditions from -20°C to +60°C.

Engineered for professional applications, the sensor features high-performance imported bearings to minimize rotational resistance and electromagnetic interference shielding for stable signal integrity. Its bottom cable exit design, combined with a sealed housing, provides superior long-term waterproofing compared to traditional aviation plug connectors, making it ideal for permanent outdoor installations.

Key Features

  • Wide measurement range of 0-70 m/s with a fine resolution of 0.1 m/s.
  • Constructed with corrosion-resistant polycarbonate shell and high-strength carbon fiber cups.
  • Integrated RS485 interface with ModBus-RTU protocol for straightforward network integration.
  • Low rotational inertia design ensures sensitive and accurate response to wind changes.
  • High-quality imported bearings provide smooth rotation and long-term measurement stability.
  • Bottom cable gland outlet eliminates common failure points associated with connector seals.
  • Low power consumption (≤0.3W) suitable for solar-powered or remote monitoring stations.
  • Operates reliably across a broad temperature range from -20°C to +60°C.

Applications

  • Meteorological stations and weather monitoring networks for wind speed data collection.
  • Environmental monitoring at industrial sites, ports, and airports for safety and operations.
  • Integration into agricultural weather systems for irrigation and crop management.
  • Wind resource assessment for renewable energy projects and small-scale wind turbines.
  • Building automation and HVAC system optimization based on external wind conditions.

Technical Specifications

Model NumberSN-3000-FSJT-N01
Measurement Range0 - 70 m/s
Resolution0.1 m/s
Accuracy±(0.2 + 0.03V) m/s
Output SignalRS485 (Modbus-RTU)
Supply Voltage10 - 30V DC
Power Consumption≤ 0.3W
Operating Temperature-20°C to +60°C
Cup MaterialCarbon Fiber
Housing MaterialPolycarbonate Shell
Communication ProtocolModBus-RTU

Frequently Asked Questions

What is the output protocol of this wind speed sensor?

The sensor uses a standard RS485 serial interface with the ModBus-RTU communication protocol. This allows for easy daisy-chaining on a two-wire bus and integration with most industrial PLCs, SCADA systems, and data loggers that support Modbus.

What is the power supply requirement for this sensor?

It operates from a wide-range 10-30V DC power supply with very low power consumption (≤0.3W). This makes it suitable for systems with 12V or 24V power rails, as well as solar-powered remote monitoring stations.

Is this sensor suitable for permanent outdoor installation?

Yes. Its polycarbonate shell is UV-resistant and corrosion-proof, and the carbon fiber cups are high-strength. The bottom cable gland outlet provides superior, long-lasting waterproofing compared to connectors with rubber seals, ensuring reliable operation in harsh weather.

Can the output signal be customized?

The standard model outputs RS485 Modbus. Based on the product description, the manufacturer may offer customization to other industrial signals like 4-20mA, 0-5V, or 0-10V analog outputs, or pulse output. Contact the supplier for specific customization options.

Package Includes

  • 1 x Pro-Range SN-3000-FSJT-N01 Wind Speed Sensor

Additional Information

Weight 0.317 kg
Dimensions 18 × 18 × 20 cm
