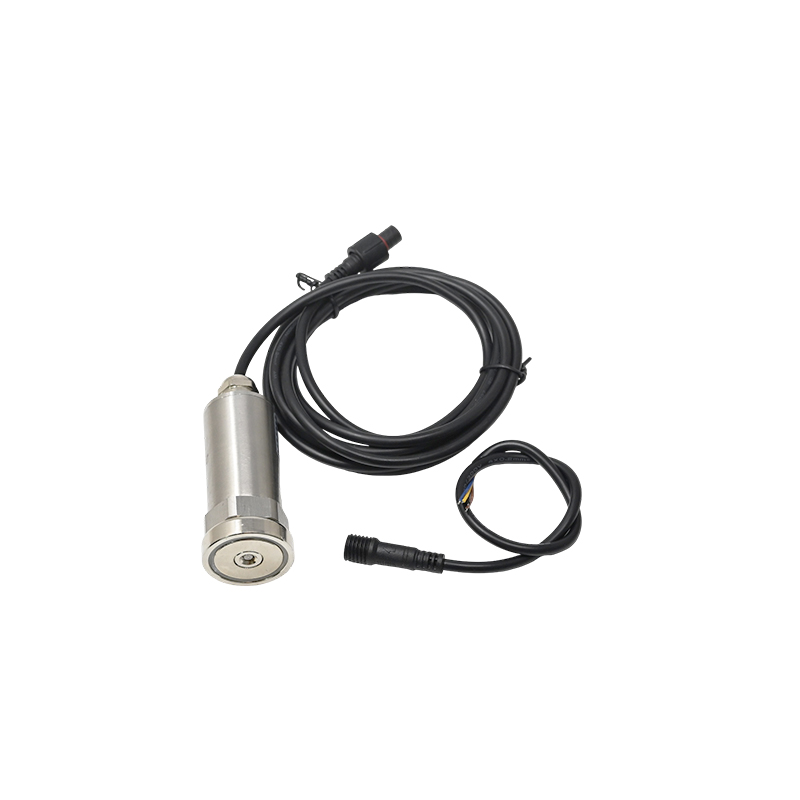

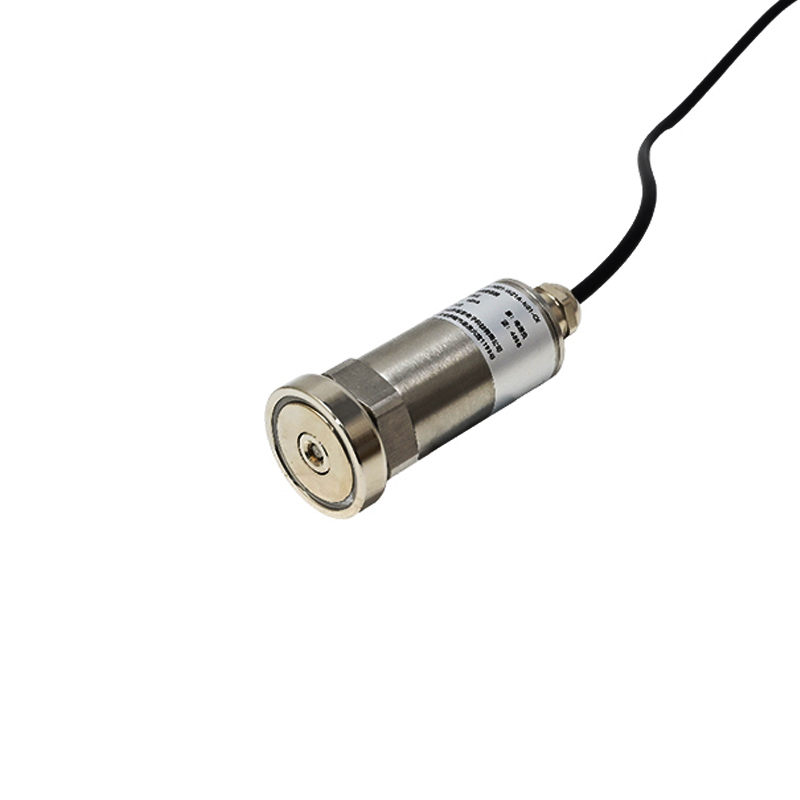

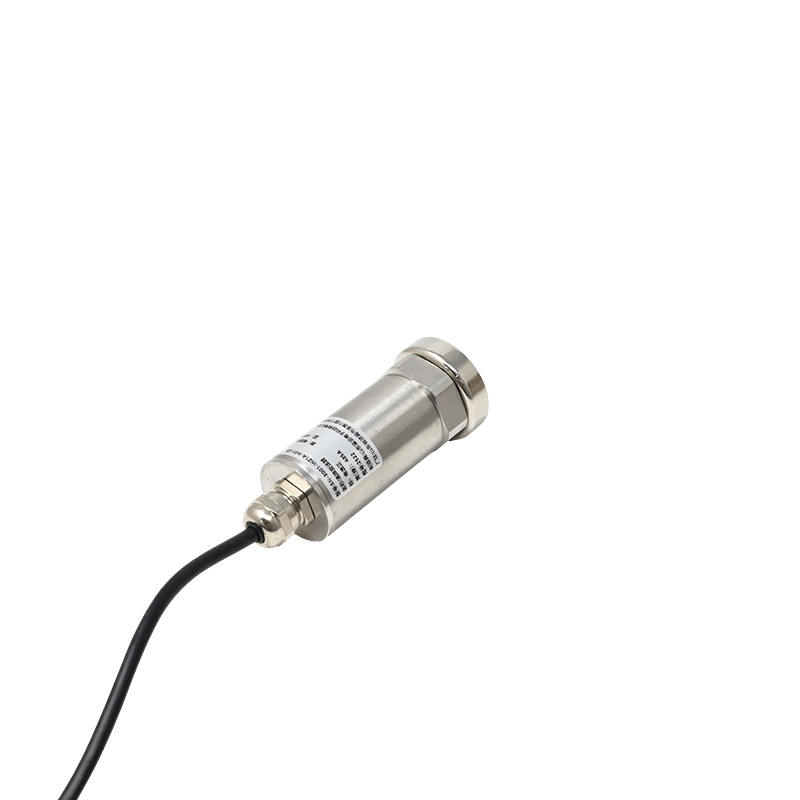

SN-3001-WZ1A-NO1-CX Temperature and Vibration Sensor - RS485, IP68
The SN-3001-WZ1A-NO1-CX is an industrial-grade RS485 sensor for simultaneous multi-axis vibration (velocity & displacement) and surface temperature monitoring. Designed for 10-30V DC systems, its IP68-rated housing ensures reliable operation in harsh environments for predictive maintenance applications.
Features
- Multi-axis MEMS vibration sensor for velocity and displacement measurement.
- Integrated high-accuracy surface temperature sensor.
- Industrial RS485 communication interface for long-distance networking.
- IP68 waterproof and dustproof rating for harsh environments.
- Wide 10-30V DC operating voltage range with low power consumption (≤0.1A).
Out of stock
The SN-3001-WZ1A-NO1-CX is a robust industrial condition monitoring sensor that combines a high-performance MEMS accelerometer for triaxial vibration analysis with a precision temperature sensor. It provides continuous, real-time data on vibration velocity (mm/s) and displacement (mm) across the X, Y, and Z axes, alongside equipment surface temperature, enabling comprehensive health assessment of rotating machinery like motors, pumps, fans, and gearboxes.
Housed in a compact, IP68-sealed metal casing, the sensor is built to withstand demanding industrial environments involving moisture, dust, and oil. Its wide 10-30V DC input range offers flexibility for integration into various PLC, SCADA, and industrial IoT (IIoT) control systems via its standard RS485 interface, supporting protocols like Modbus RTU for easy data acquisition and remote configuration.
Additional Information
| Weight | 0.227 kg |
|---|---|
| Dimensions | 7 × 3 cm |
