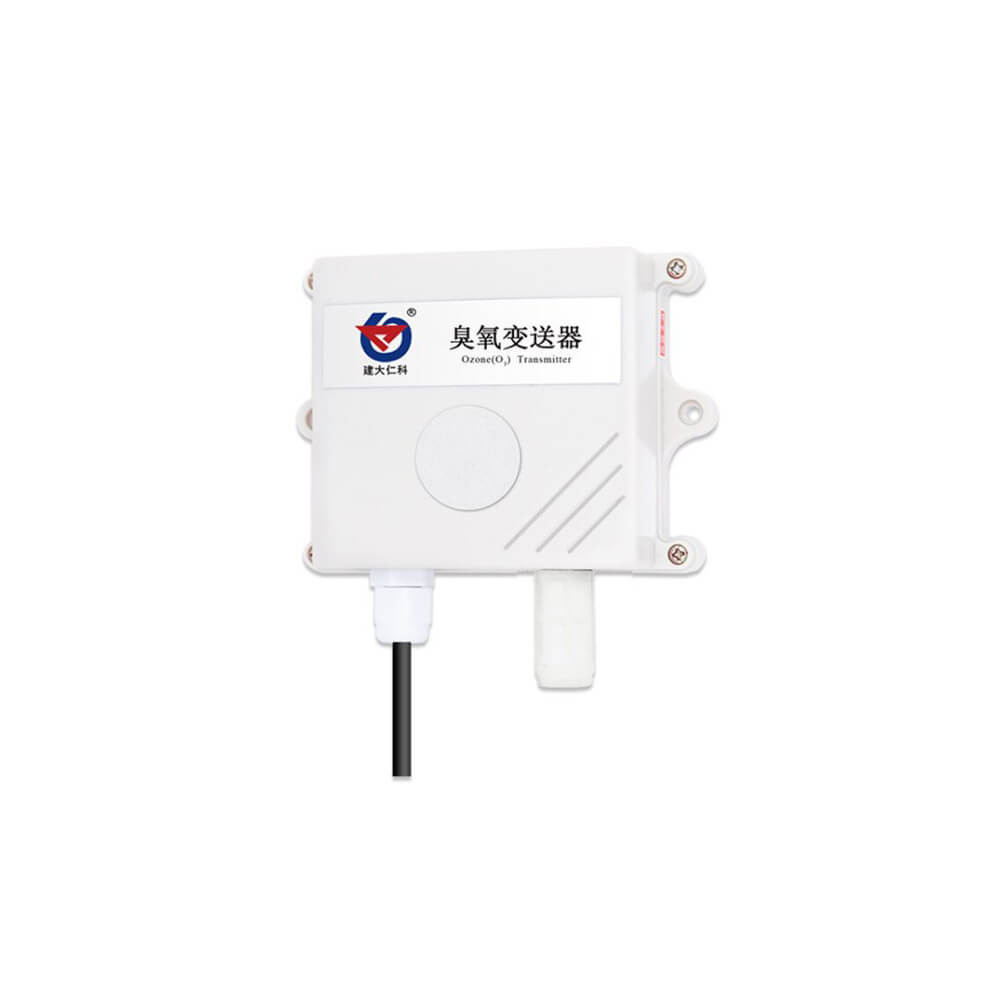

Renke RS-O3-N01-2-10P Ozone Sensor -40℃~80℃ 0~10.00ppm, 0-100%RH - RS485 Modbus
The Renke RS-O3-N01-2-10P is a professional-grade ozone (O3) gas sensor module designed for fixed-point, long-term monitoring. It features a wall-mount, waterproof housing, RS485 Modbus communication, and is compatible with industrial PLCs, SCADA systems, and data loggers for precise ozone concentration measurement from 0 to 10.00 ppm.
Features
- High-precision ozone (O3) sensing from 0 to 10.00 ppm with 0.01 ppm resolution.
- RS485 Modbus RTU digital output for robust industrial communication and daisy-chaining.
- Wide operating temperature range of -40°C to 80°C and 0-100% RH environmental tolerance.
- Low power consumption (0.1W) with a wide 10-30V DC supply voltage range.
- Wall-mounted, waterproof IP-rated enclosure for durable, easy installation in harsh environments.
Out of stock
The Renke RS-O3-N01-2-10P ozone sensor utilizes a high-sensitivity, US-imported gas detection probe paired with advanced signal conditioning circuitry to deliver stable and accurate PPM-level ozone concentration readings. Its design is optimized for long-term stability and reliability in demanding environmental conditions.
Engineered for seamless integration into industrial monitoring networks, the sensor outputs data via a standard RS485 interface using the Modbus RTU protocol. This allows for easy daisy-chaining of multiple sensors and remote data acquisition by PLCs, SCADA systems, or cloud-based monitoring platforms. The robust, wall-mount housing provides a high degree of environmental protection.
Additional Information
| Weight | 0.175 kg |
|---|---|
| Dimensions | 15 × 15 × 5 cm |
