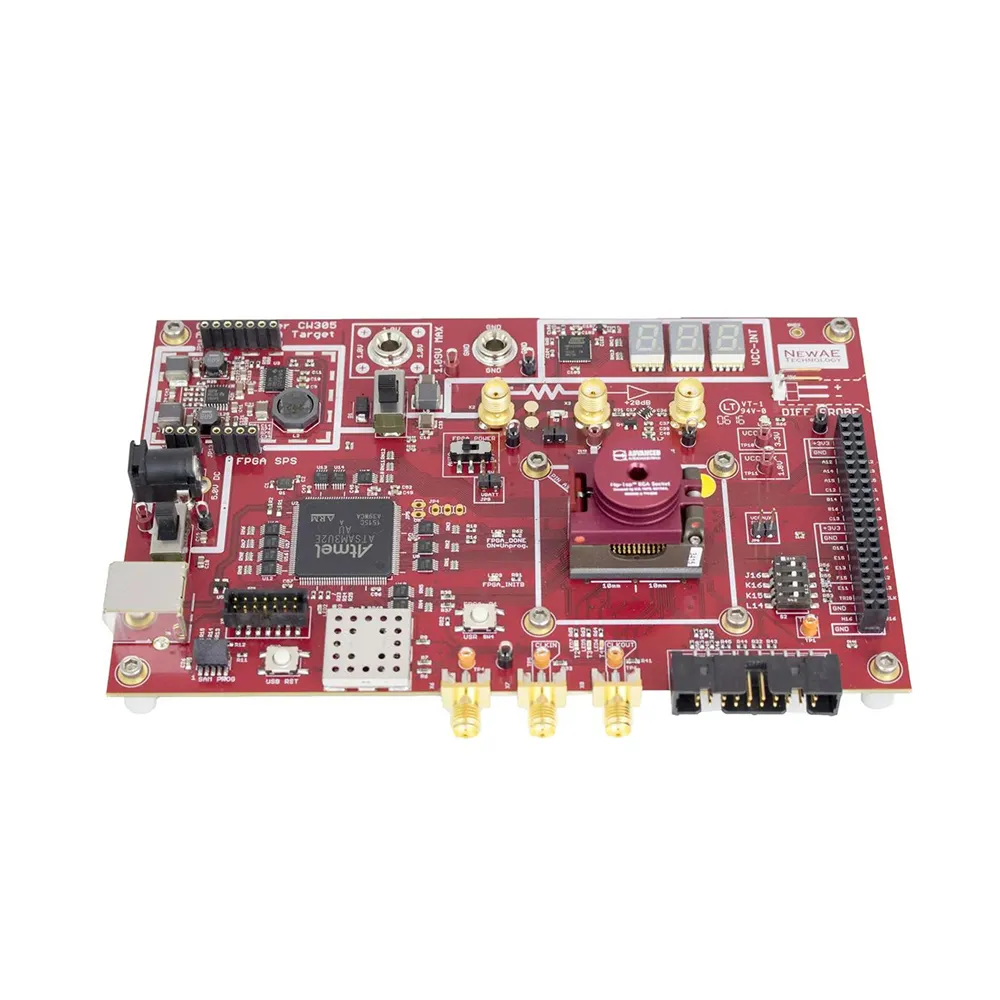

NewAE CW305 Artix-7 FPGA Target Board w/ Socket
The NewAE CW305 Artix-7 FPGA Target Board, featuring a BGA socket, is engineered for advanced embedded security testing, including side-channel power analysis and fault injection, with programmable voltage and clock settings.
Features
- Supports Artix-7 FPGA (FTG256 package) via a flexible BGA socket.
- Features programmable VCC-INT (0.8–1.2V, 4A) for dynamic power supply control.
- Integrated external PLL provides a 1–200 MHz frequency range for precise clock manipulation.
- High-speed USB 2.0 interface enables rapid FPGA configuration and parameter adjustments.
- Optimized for side-channel power analysis and fault injection with a 0.1Ω shunt resistor.
Out of stock
The NewAE CW305 SOCKET Artix FPGA Target Board is a purpose-built platform for comprehensive embedded security testing. It facilitates advanced analysis techniques such as side-channel power analysis and fault injection, critical for evaluating hardware vulnerabilities. The board’s BGA socket supports multiple Artix-7 FTG256 devices, making it an excellent choice for comparative studies, including Physical Unclonable Function (PUF) research and template attacks.
A custom high-speed USB interface streamlines FPGA configuration, register communication, and granular control over voltage and clock parameters. Researchers can precisely set the programmable VCC-INT supply from 0.8V to 1.2V and adjust the external PLL frequency from 1 MHz to 200 MHz, enabling highly flexible testing conditions. Equipped with a 0.1Ω shunt resistor for accurate power measurements and ESD-protected I/O, the CW305 ensures reliable and safe experimentation. Multiple I/O headers, SMA connectors, and test points guarantee seamless integration with ChipWhisperer capture systems, establishing it as an indispensable tool for security analysts and embedded engineers.
Additional Information
| Weight | 0.2 kg |
|---|---|
| Dimensions | 12 × 10 cm |
