ReadyToSky A2212 1000KV Brushless DC Motor (Soldered Connector)
ReadyToSky A2212 1000KV Brushless DC Motor (Soldered Connector) - Image 2
ReadyToSky A2212 1000KV Brushless DC Motor (Soldered Connector) - Image 3
ReadyToSky A2212 1000KV Brushless DC Motor (Soldered Connector) - Image 4
ReadyToSky A2212 1000KV Brushless DC Motor (Soldered Connector) - Image 5
SKU: DRFC-2937
📋 GST Invoice Available

ReadyToSky A2212 1000KV Brushless DC Motor (Soldered Connector)

₹419.00 (Inclusive of all taxes)
Out of Stock

The ReadyToSky A2212 1000KV brushless motor is a 14-pole outrunner designed for 2S-3S LiPo power systems, delivering reliable thrust for medium-sized multirotor builds such as quadcopters and hexacopters.

Features

  • 1000KV rating optimized for efficient 2S-3S LiPo operation.
  • 12A continuous current capacity with a 150W max power output.
  • 3.17mm hardened steel shaft for secure propeller mounting.
  • Bi-directional operation (CW/CCW) via simple polarity swap.
  • Lightweight 72g aluminum housing with integrated X-type motor mount.

Out of stock

Description

The A2212 1000KV motor utilizes a 14-pole stator design paired with high-grade N52 magnets to produce smooth, efficient torque across its 4-10A efficiency band. Its all-steel construction ensures durability under competitive flight loads and vibration.

With a compact 27.5mm length and 27mm diameter, this motor integrates seamlessly into a wide range of multirotor frames requiring a 3.17mm shaft adapter. The low internal resistance (90mΩ) minimizes heat buildup during sustained operation.

Key Features

  • 14-pole outrunner design for smooth torque delivery and high efficiency.
  • Hardened steel shaft (3.17mm) resists bending under load.
  • Precision-balanced rotor and stator assembly reduces vibration.
  • High-temperature windings and magnets sustain performance under 12A continuous load.
  • Bi-directional capability simplifies motor installation and direction change.
  • Integrated X-type mounting plate for secure frame attachment.
  • Optimized for 2S-3S LiPo voltage range (7.4V-11.1V).

Applications

  • Medium-sized quadcopter and hexacopter builds for aerial photography and general flight.
  • Educational and DIY drone projects requiring a reliable, cost-effective 1000KV motor.
  • Heavy-lift multirotor platforms operating on 3S power systems for payload carriage.
  • Fixed-wing UAVs and VTOL conversions needing efficient low-KV propulsion.

Technical Specifications

Motor KV1000 KV
Motor TypeBrushless Outrunner
Compatible Voltage2S-3S LiPo
ModelA2212 10T 13T
Shaft Diameter3.17 mm
Continuous Current12 A
Max Power150 W
No-Load Current500 mA
Max Efficiency Current4-10 A
Max Efficiency80%
Internal Resistance90 mΩ
Poles14
Length27.5 mm
Width27 mm
Weight72 g

Frequently Asked Questions

What is the compatible voltage range for the A2212 1000KV motor?

This motor is designed for 2S to 3S LiPo battery packs, operating within a 7.4V to 11.1V range. Exceeding 3S (12.6V) may overheat the windings and damage the motor. Always pair it with a suitably rated ESC.

How do I change the rotation direction of this brushless motor?

The motor is bi-directional. To change rotation from CW to CCW (or vice-versa), simply swap any two of the three motor wires connected to the Electronic Speed Controller (ESC). No physical modifications are required.

What size propeller is suitable for the A2212 1000KV on 3S?

For 3S operation, pair this motor with medium-to-large diameter, low-pitch propellers, typically in the 8x4 to 10x5 inch range. Always bench-test with a current meter to ensure the combined load stays within the motor's 12A continuous rating.

Does the package include a propeller adapter?

Yes, the package includes one propeller adapter designed for the motor's 3.17mm shaft. You will need to provide the propeller and securing nut separately, ensuring it matches the adapter's thread pattern.

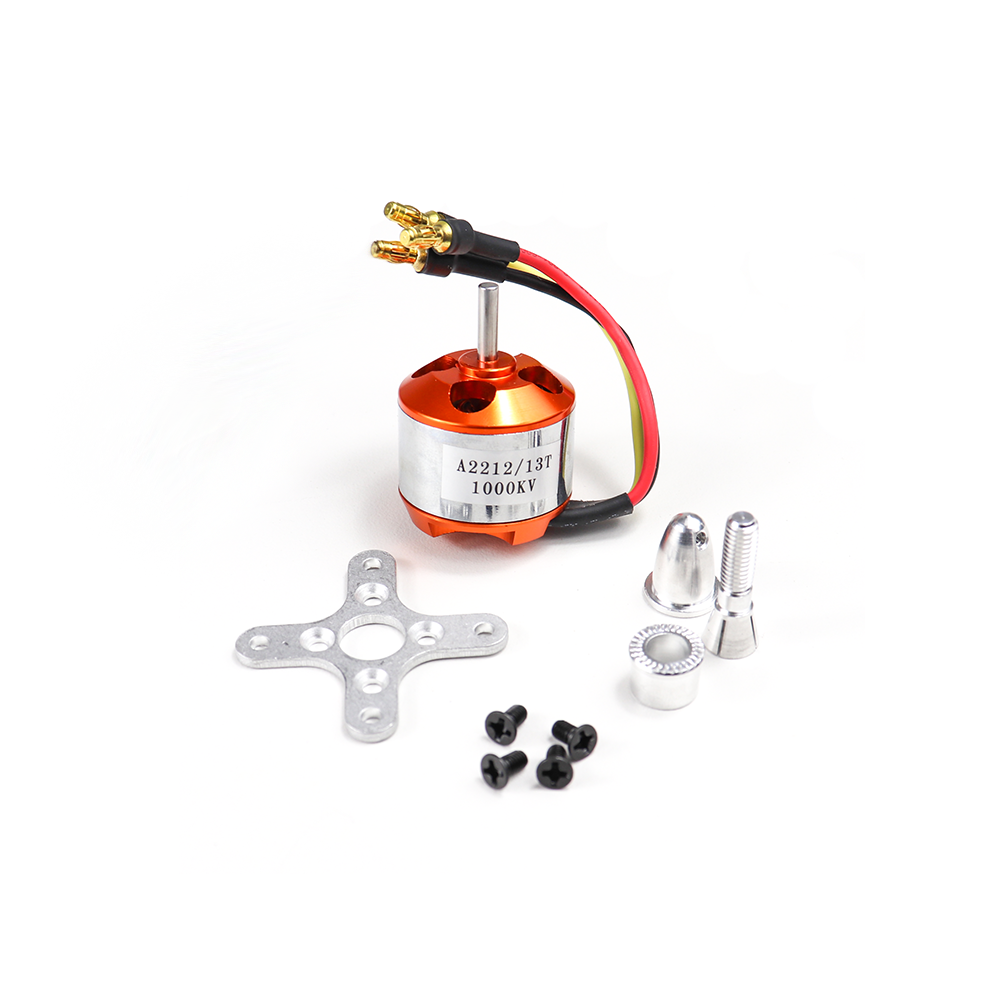

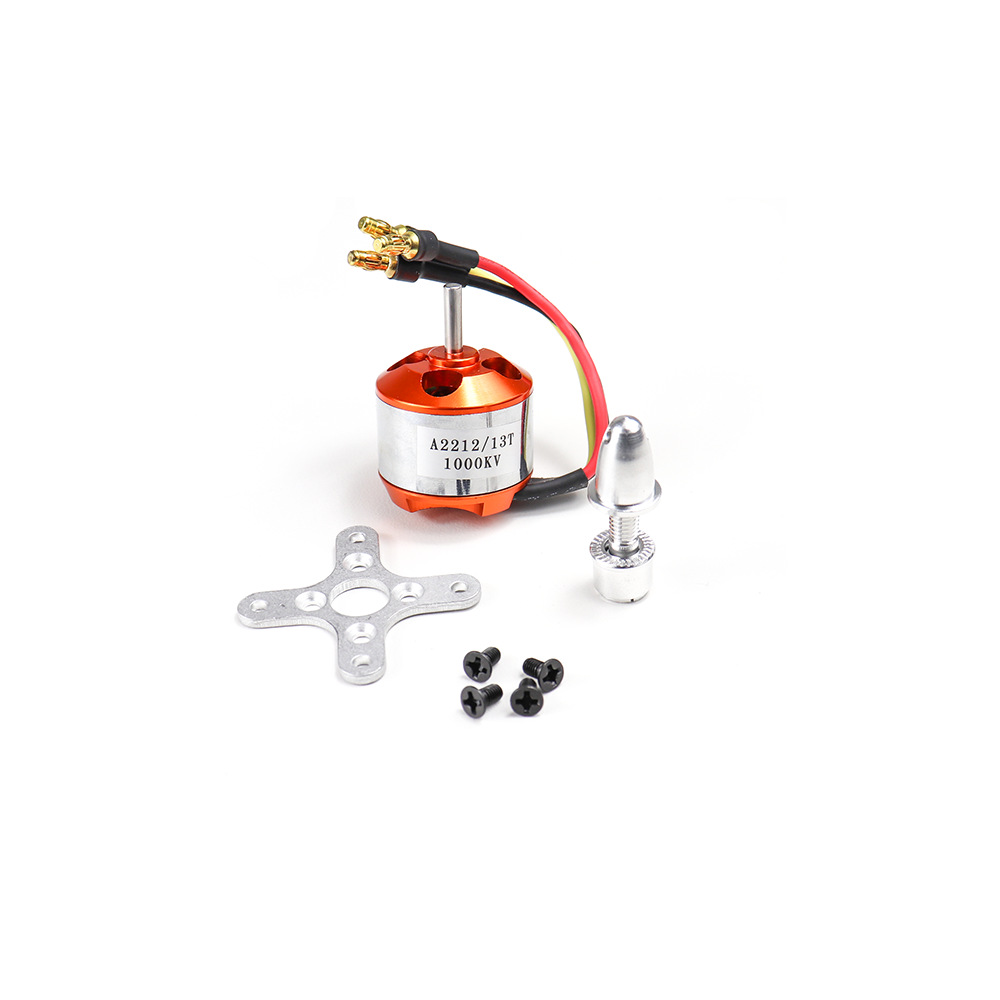

Package Includes

  • 1 x A2212 1000KV Brushless DC Motor
  • 1 x Prop Adapter
  • 1 x X-type Motor Holder
  • 1 x Set of Mounting Screws

Additional Information

Weight 0.072 kg
Dimensions 2.75 × 2.7 cm
