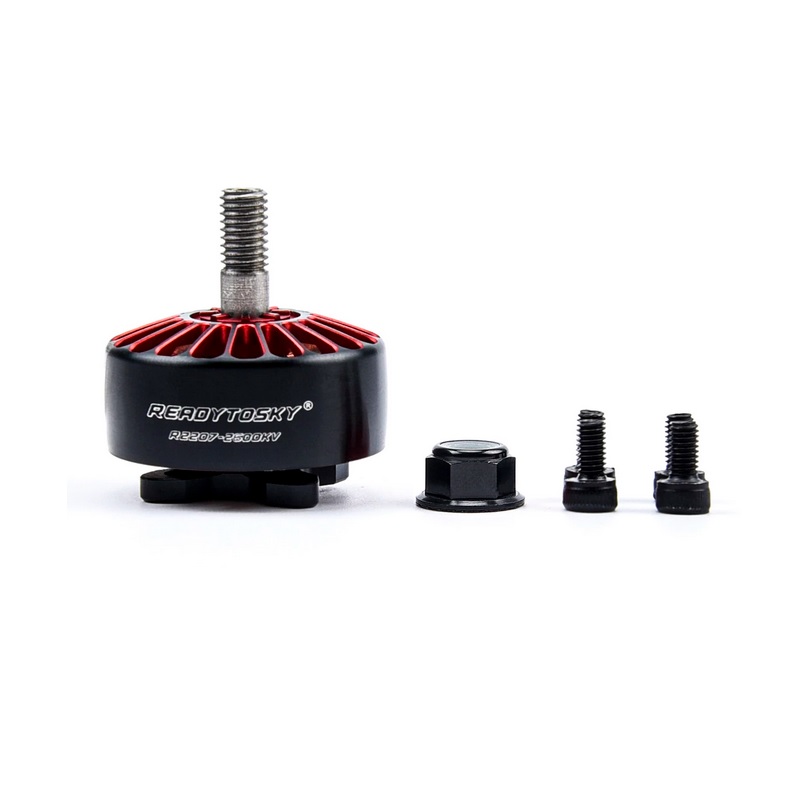

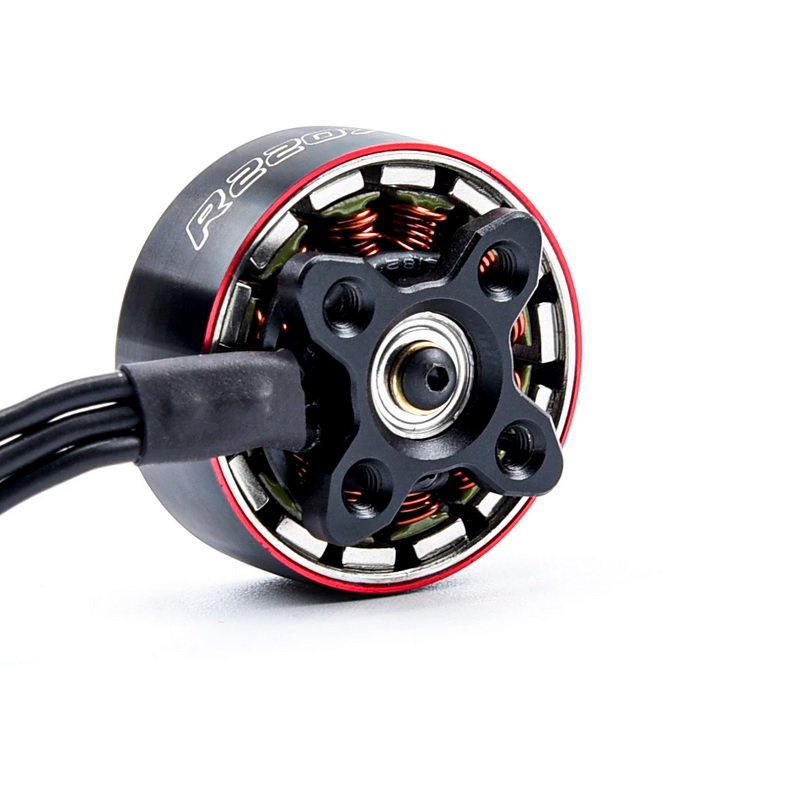

ReadyToSky R2207 2207 2450KV CCW FPV Brushless Motor - Black Cap

Name: ReadyToSky R2207 2207 2450KV CCW FPV Brushless Motor - Black Cap
Brand: ReadyToSky
SKU: DRFC-2576
Price: 1519.00 INR
Availability: OutOfStock

₹1,519.00 (Inclusive of all taxes)

Out of Stock

The ReadyToSky R2207 is a 2450KV brushless motor designed for high-performance FPV racing and freestyle drones, compatible with 2S to 4S LiPo batteries. Its 12N14P configuration and 2207 stator size deliver a balance of torque and high RPM for agile, responsive flight.

Features

2207 stator size (22mm diameter, 7mm height) with 2450KV rating for high-RPM performance.
12N14P (12 stator slots, 14 magnet poles) configuration for smooth, efficient power delivery.
Designed for counter-clockwise (CCW) rotation when viewed from the motor front.
4mm hardened steel shaft and robust construction for durability in high-impact flight.
Lightweight 36g design optimized for 3-inch to 5-inch FPV racing and freestyle quadcopters.

Out of stock

Get Notified When Available

Description

The ReadyToSky R2207 2450KV motor is engineered for pilots seeking a reliable powerplant for 3-inch to 5-inch FPV drones. Its 2207 stator dimensions provide an optimal torque-to-weight ratio, enabling rapid throttle response and sustained high-speed performance on 3S and 4S LiPo packs. The 12N14P magnetic design minimizes cogging and ensures smooth rotation across the entire throttle range.

Built with a durable bell housing and a 4mm hardened steel shaft, this motor withstands the vibrations and impacts common in aggressive freestyle and racing scenarios. The black anodized end cap serves as a visual identifier and contributes to the motor’s overall structural integrity. Its standard 16x19mm M3 mounting pattern ensures compatibility with a wide range of popular FPV drone frames.

Key Features

High-Performance Stator: 2207 size (22mm x 7mm) provides excellent power density for aggressive flight profiles.
Optimized KV Rating: 2450KV is ideal for 3S and 4S LiPo setups, balancing top-end speed with manageable current draw.
Durable Mechanical Design: Features a 4mm steel shaft and robust bearing assembly for long-term reliability.
Efficient Magnetic Circuit: 12N14P configuration reduces iron losses and ensures smooth, cogging-free operation.
Standardized Mounting: 16x19mm M3 bolt pattern for straightforward installation on most FPV frames.
Lightweight Construction: Weighing only 36g, it minimizes overall drone weight for improved agility and flight time.
Distinctive Finish: Black anodized end cap provides corrosion resistance and easy motor identification.

Applications

High-performance 3-inch and 4-inch FPV freestyle drones requiring snappy throttle response.
Lightweight 5-inch FPV racing quads where a balance of power and efficiency is critical.
Aggressive cinewhoop builds for dynamic, low-altitude maneuvers on 3S or 4S power.
Custom micro-long-range builds where a reliable, high-RPM motor is needed for 4S operation.

Technical Specifications

Motor Type	Brushless Outrunner Motor
Stator Size	2207 (22mm Diameter x 7mm Height)
KV Rating	2450KV
Configuration	12N14P (12 Slots, 14 Poles)
Shaft Diameter	4mm
Weight	36 grams
Compatible Battery	2S to 4S LiPo
Rotation Direction	Counter-Clockwise (CCW)
Mounting Pattern	16mm x 19mm (M3)

Frequently Asked Questions

What is the compatible voltage range for the ReadyToSky R2207 2450KV motor?

The ReadyToSky R2207 motor is rated for use with 2S to 4S LiPo batteries (7.4V to 16.8V). For optimal performance and longevity, it is best utilized on 3S (11.1V) and 4S (14.8V) packs, where the 2450KV rating provides a strong balance of top-end speed and manageable current draw for most 3-inch to 5-inch propellers.

Is this motor designed for clockwise (CW) or counter-clockwise (CCW) rotation?

This specific model is configured for counter-clockwise (CCW) rotation when viewed from the front (propeller side) of the motor. For a standard quadcopter build, you would install this motor on the two front-right and rear-left motor positions, pairing it with clockwise (CW) motors on the opposite corners.

What is the mounting hole pattern for this motor?

The ReadyToSky R2207 motor uses the industry-standard 16x19mm M3 mounting pattern. This means the distance between opposite mounting holes is 16mm in one direction and 19mm in the other, requiring M3 screws. This pattern is compatible with the vast majority of FPV drone frames designed for 22xx-series motors.
