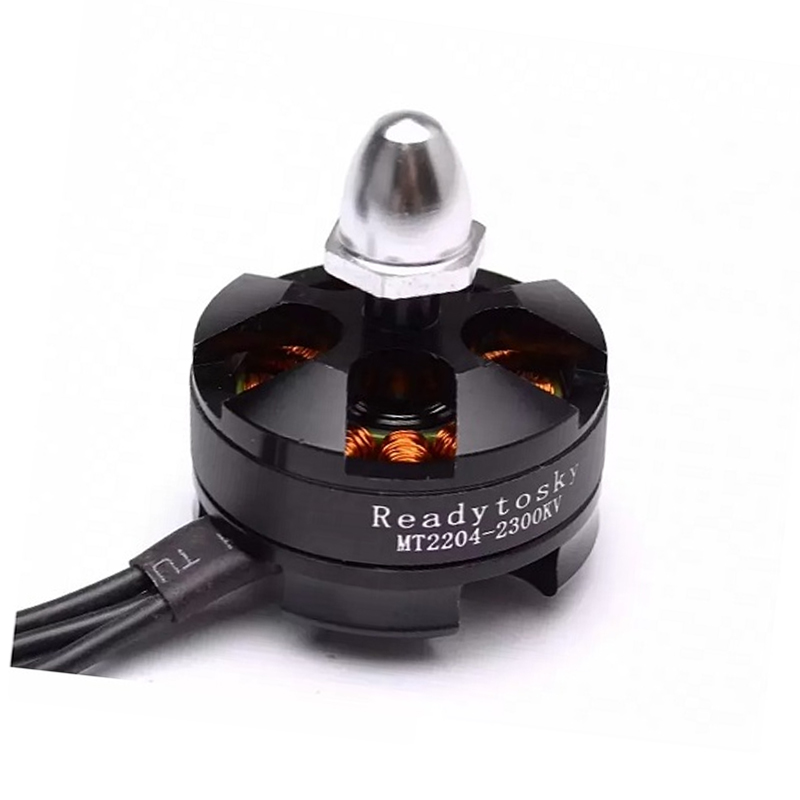

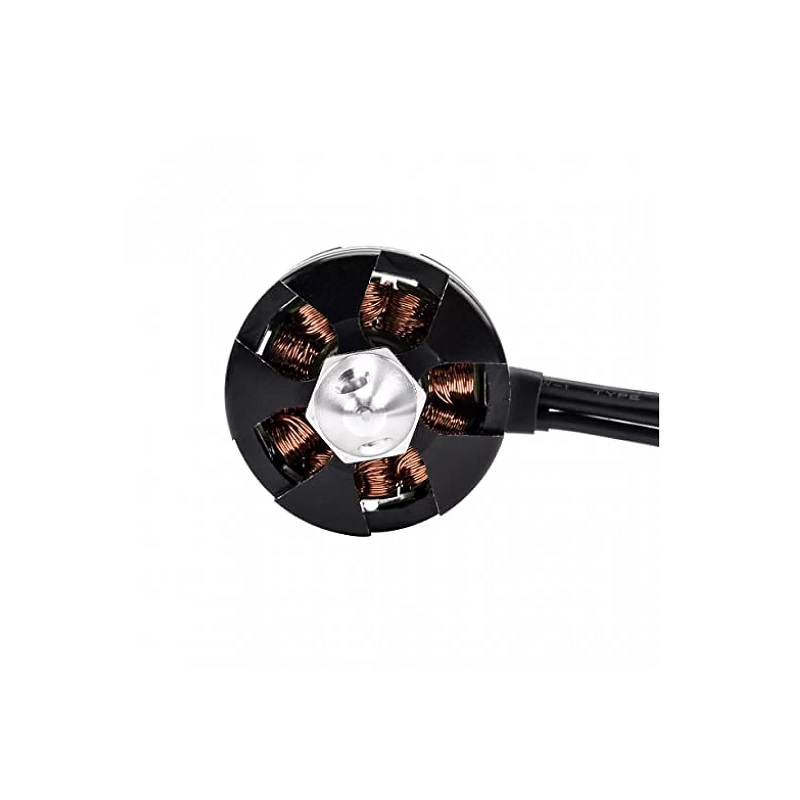

ReadyToSky MT2204 2300KV CCW Brushless Motor - Silver
The ReadyToSky MT2204 2300KV brushless motor is engineered for 5-inch FPV racing and freestyle drones, optimized for 2S-3S LiPo battery systems with a maximum current draw of 25A per motor.
Features
- 2300KV rating optimized for high-RPM 5-inch propeller performance on 2S-3S LiPo.
- High-torque N45SH neodymium magnets and precision Japan bearings for smooth, efficient operation.
- 0.2mm silicon steel laminations and 180° oxygen-free copper windings minimize eddy current losses.
- 5mm hardened steel output shaft and chamfered base for secure mounting on narrow frames.
- Factory-balanced to within 0.005g for minimal vibration and extended bearing life.
Out of stock
The ReadyToSky MT2204 2300KV motor is a core component for lightweight, high-performance 5-inch multirotor builds. Its design prioritizes a high power-to-weight ratio, delivering up to 350W of peak power with a no-load current of just 0.6A at 10V, ensuring efficient throttle response and flight time.
Constructed with 0.2mm laminations and high-grade N45SH magnets, the motor achieves rapid magnetic field transitions for crisp throttle control. The 180° oxygen-free copper windings are precision-laid to maximize copper fill and thermal dissipation, supporting sustained high-current operation typical in aggressive FPV maneuvers.
Additional Information
| Weight | 0.031 kg |
|---|---|
| Dimensions | 14 × 9 × 3 cm |
