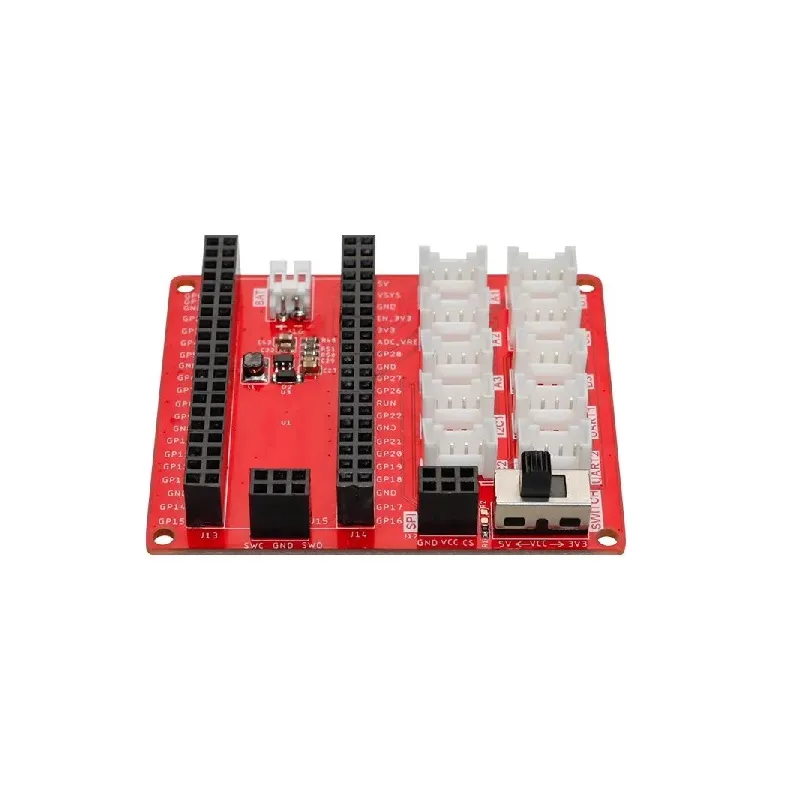

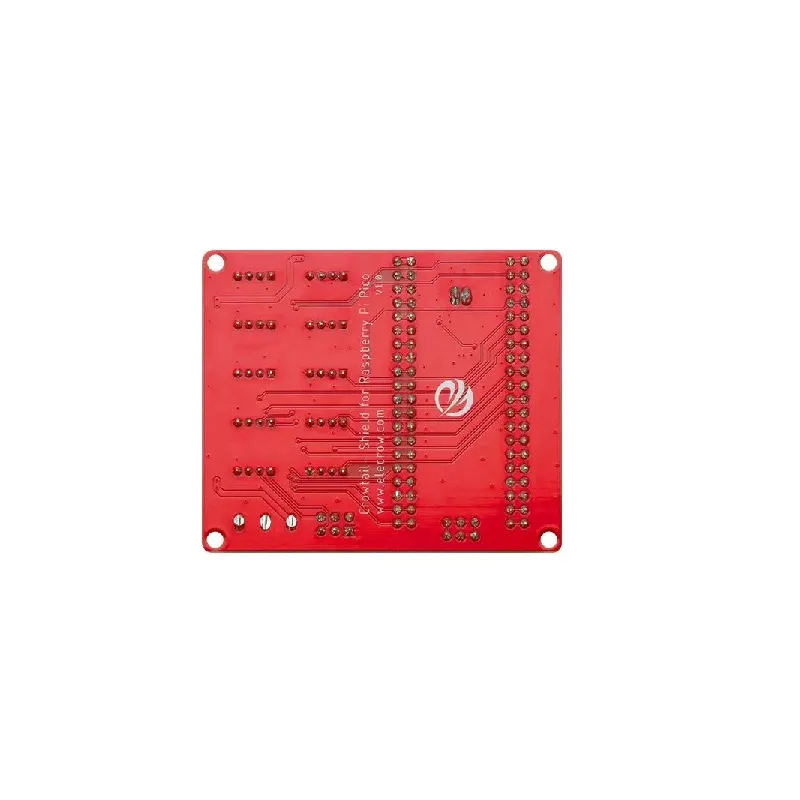

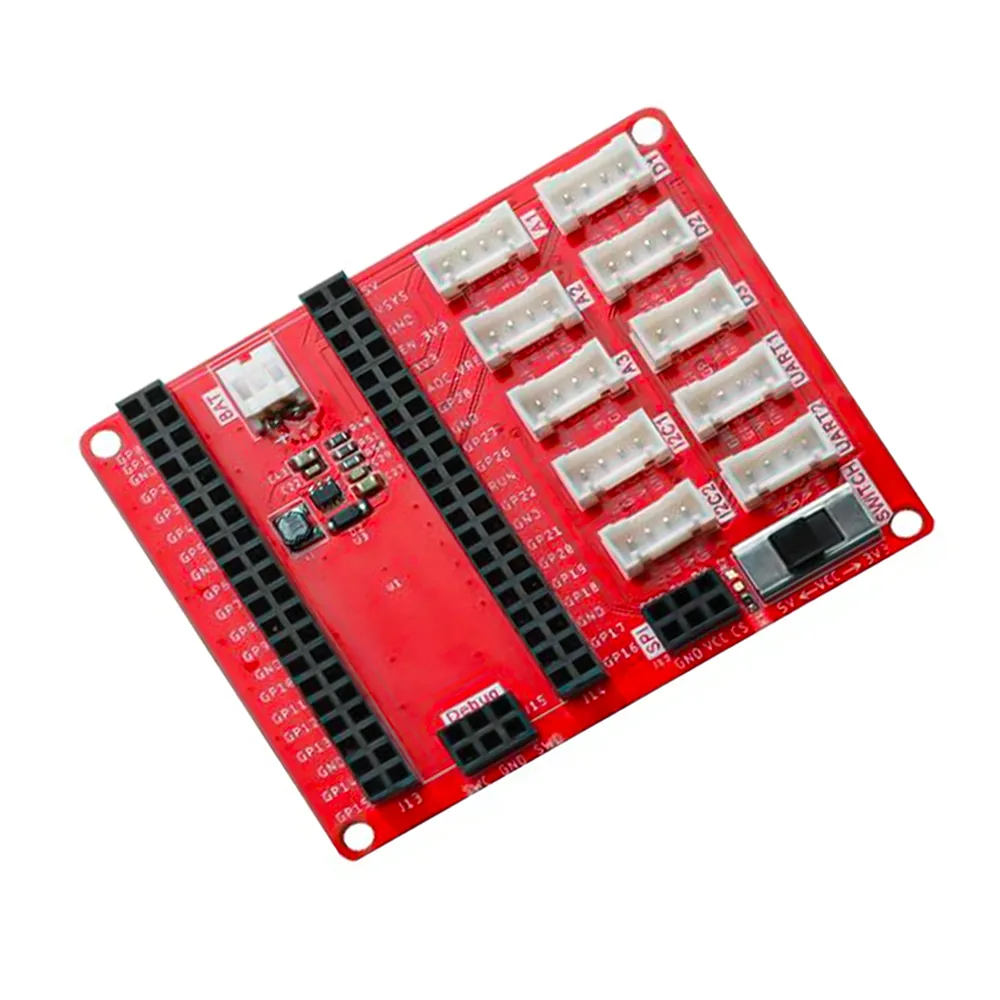

Elecrow Crowtail Shield for Raspberry Pi Pico RP2040
The Elecrow Crowtail Shield for Raspberry Pi Pico (RP2040) is a plug-and-play expansion board designed to simplify prototyping with the Pico, eliminating the need for soldering or breadboards. It expands the Pico’s capabilities by providing 10 dedicated Crowtail ports, enabling direct connection to a wide range of Crowtail sensors and modules.
Features
- Designed specifically for Raspberry Pi Pico (RP2040) boards.
- Features 10 Crowtail ports: 2x I2C, 2x UART, 3x Digital, 3x Analog, and 1x SPI.
- Includes a power switch (3.3V/5V selectable), BAT interface, and SWD debug port.
- Enables solderless, plug-and-play connections with Crowtail sensors.
- Supports development with MicroPython and Arduino platforms.
Out of stock

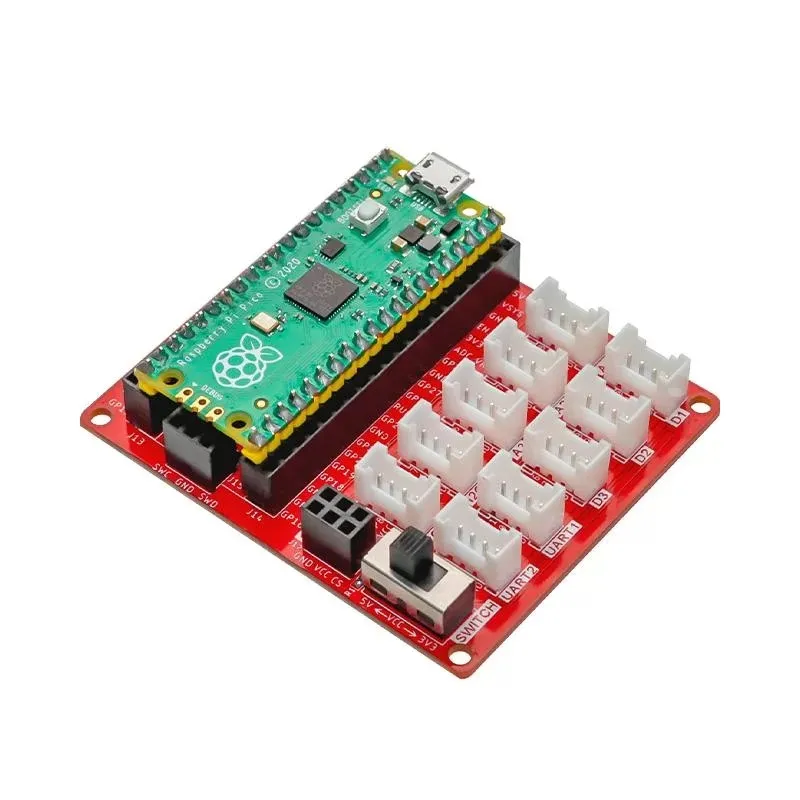

The Elecrow Crowtail Shield transforms the Raspberry Pi Pico into a highly accessible prototyping platform, streamlining the development process for makers and engineers. This dedicated expansion board provides a convenient interface to the Pico’s powerful RP2040 microcontroller, offering a rich set of peripheral connections without the complexity of manual wiring or soldering.
Integrating seamlessly with Crowtail series sensors, the shield offers 10 specialized ports, including I2C, UART, Digital, Analog, and SPI, alongside a battery interface and an SWD debug port. A selectable 3.3V/5V power switch enhances versatility, allowing developers to quickly configure their power output. This stackable add-on board allows direct attachment of a pre-soldered Pico, accelerating project development from concept to functional prototype with ease.
Additional Information
| Weight | 0.026 kg |
|---|---|
| Dimensions | 6.5 × 5.6 cm |
