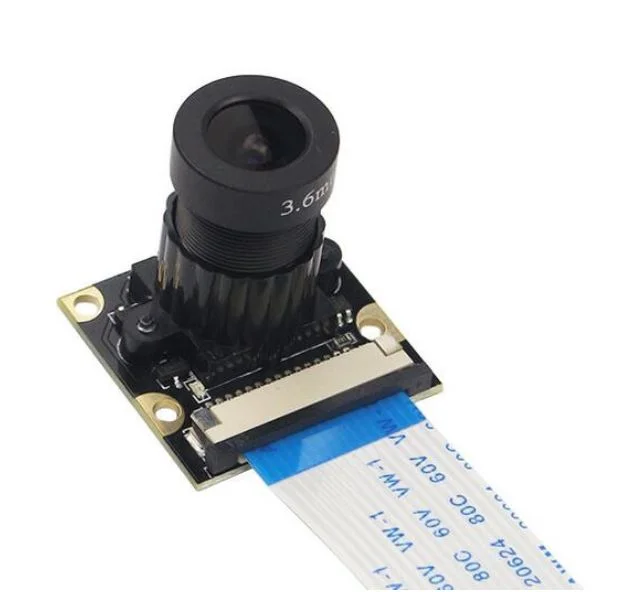

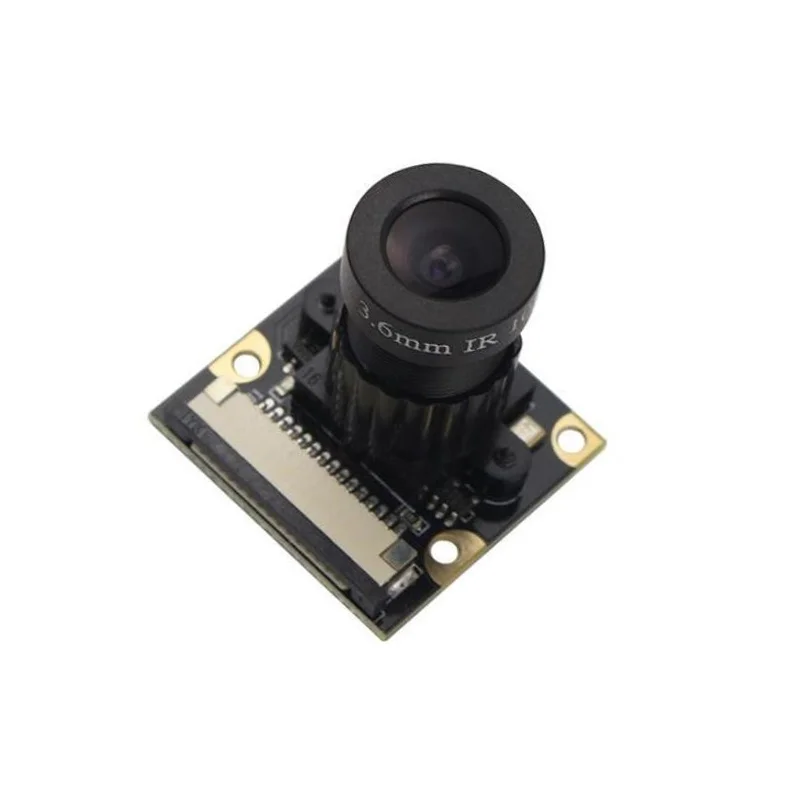

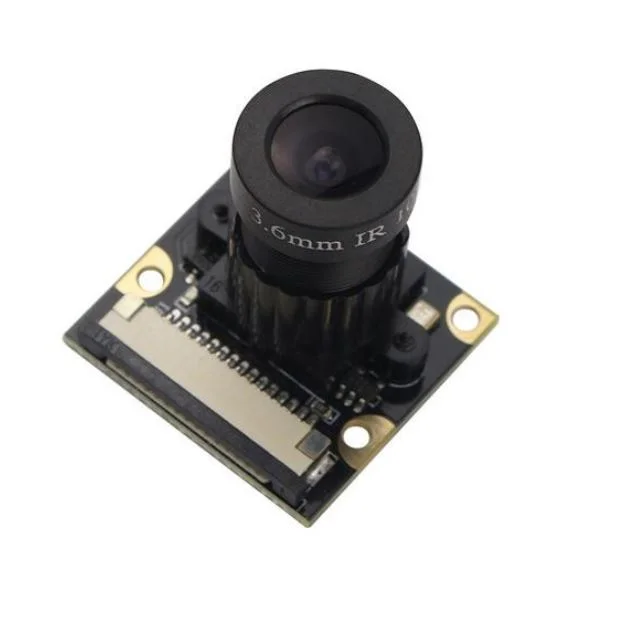

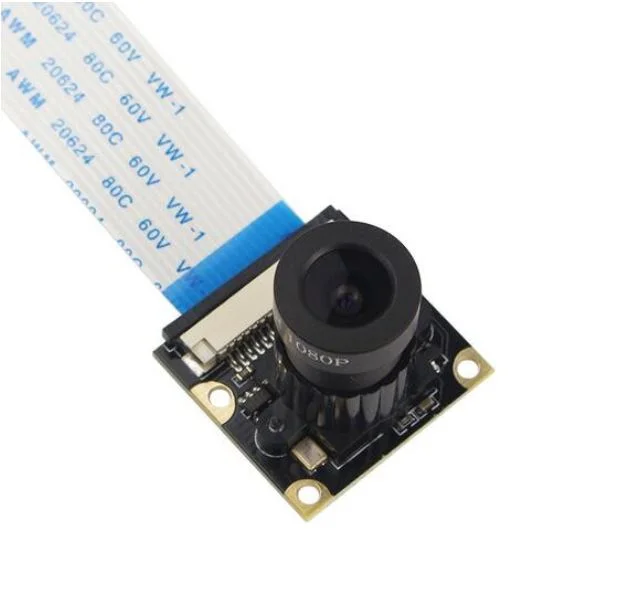

Raspberry Pi Infrared IR Night Vision Camera Module 5MP CSI
This Raspberry Pi camera module integrates a 5MP OmniVision 5647 sensor with infrared LEDs for 24/7 surveillance, connecting via the dedicated high-bandwidth CSI interface for plug-and-play operation on Raspberry Pi 3 Model B and compatible boards.
Features
- 5MP OmniVision 5647 sensor delivers 2592 x 1944 stills and 1080p30/720p60 video.
- Integrated infrared (IR) LEDs enable clear night vision surveillance in low-light or total darkness.
- Dedicated CSI (Camera Serial Interface) ensures high-bandwidth, plug-and-play connection to Raspberry Pi GPIO.

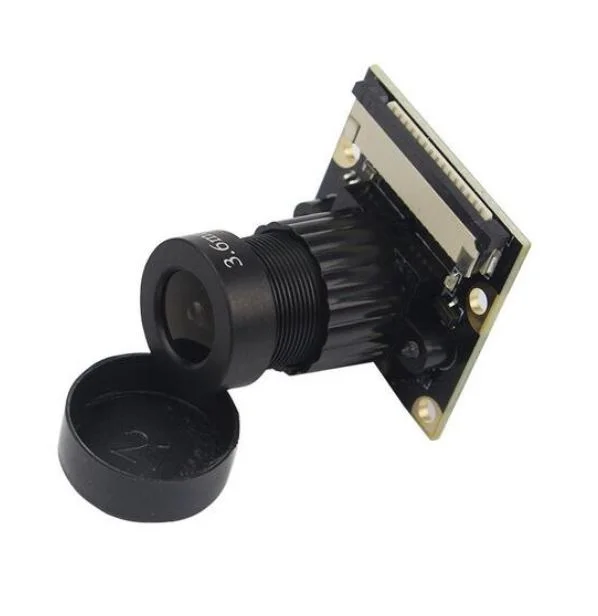

- Fixed-focus lens with f/1.8 aperture and 3.6mm focal length provides a 75.7° field of view.
- Compact, lightweight module (25mm x 23mm) is powered directly from the Raspberry Pi’s 5V rail.
Out of stock
Designed for embedded vision projects, this Raspberry Pi camera module combines a daylight-capable 5-megapixel sensor with onboard infrared illumination for continuous operation. The OmniVision 5647 CMOS sensor outputs high-resolution stills and smooth video streams directly to the Raspberry Pi’s BCM2835 processor via the dedicated CSI bus, a low-latency interface optimized for camera data.

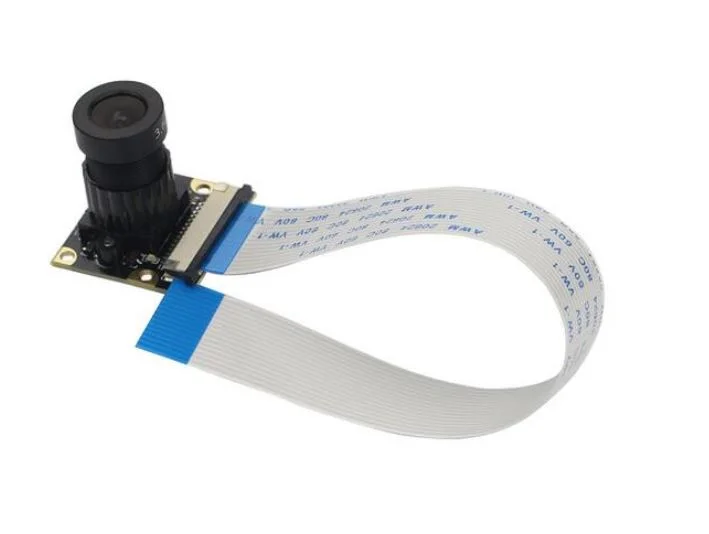

The module’s fixed-focus lens and wide aperture allow for consistent image capture across varying light conditions. When ambient light drops below a threshold, the integrated IR LEDs automatically activate, illuminating the scene for the sensor without a visible light source, making it ideal for discreet security and monitoring applications. Its compact form factor and simple ribbon cable connection make it a straightforward upgrade for any Raspberry Pi-based IoT or edge computing setup.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 2.5 × 2.3 cm |
