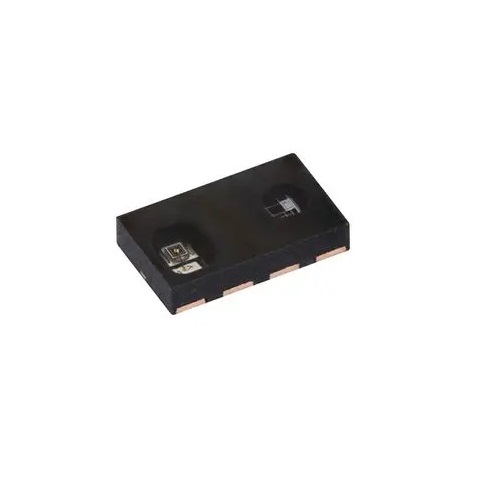

Vishay VCNL3030X01-GS08 Proximity Sensor with IR Emitter & I2C, AEC-Q101, 2.5 to 3.6V
The Vishay VCNL3030X01-GS08 is a fully integrated proximity sensor module combining a high-power IRED emitter, photodiode, signal conditioning, and a 16-bit ADC. It communicates via I2C interface (1.8V to 5.5V logic compatible) and is designed for 2.5V to 3.6V operation, making it suitable for battery-powered and automotive AEC-Q101 qualified applications.
Features
- Integrated proximity sensing up to 300 mm with high-power IRED emitter.
- 16-bit digital output via I2C bus with programmable interrupt thresholds.
- AEC-Q101 qualified for automotive-grade reliability and performance.

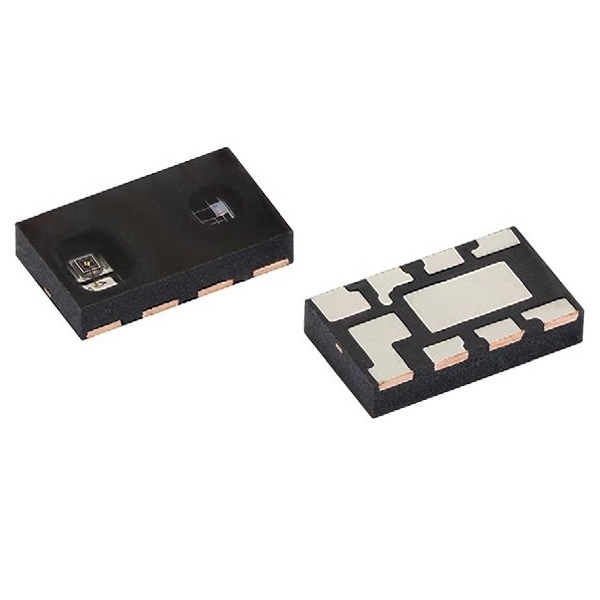

- Ultra-compact surface-mount package (4.0 x 2.36 x 0.75 mm).
- Low operating voltage range from 2.5V to 3.6V for portable designs.
Out of stock
The VCNL3030X01-GS08 integrates a complete proximity sensing system into a single CMOS chip, including photodiodes, amplifiers, and analog-to-digital conversion circuits. This monolithic design ensures high signal integrity and reduces external component count. The sensor provides precise 16-bit digital proximity data through a standard I2C interface, which supports a wide logic voltage range from 1.8V to 5.5V for easy integration with various microcontrollers like Arduino, Raspberry Pi, ESP32, and STM32.
Its programmable interrupt function with individual high and low thresholds allows the host microcontroller to enter low-power sleep modes, significantly conserving energy in battery-operated systems. The device’s AEC-Q101 qualification confirms its robustness for demanding automotive and industrial environments, offering stable performance across an extended temperature range.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 0.4 × 0.236 × 0.075 cm |
