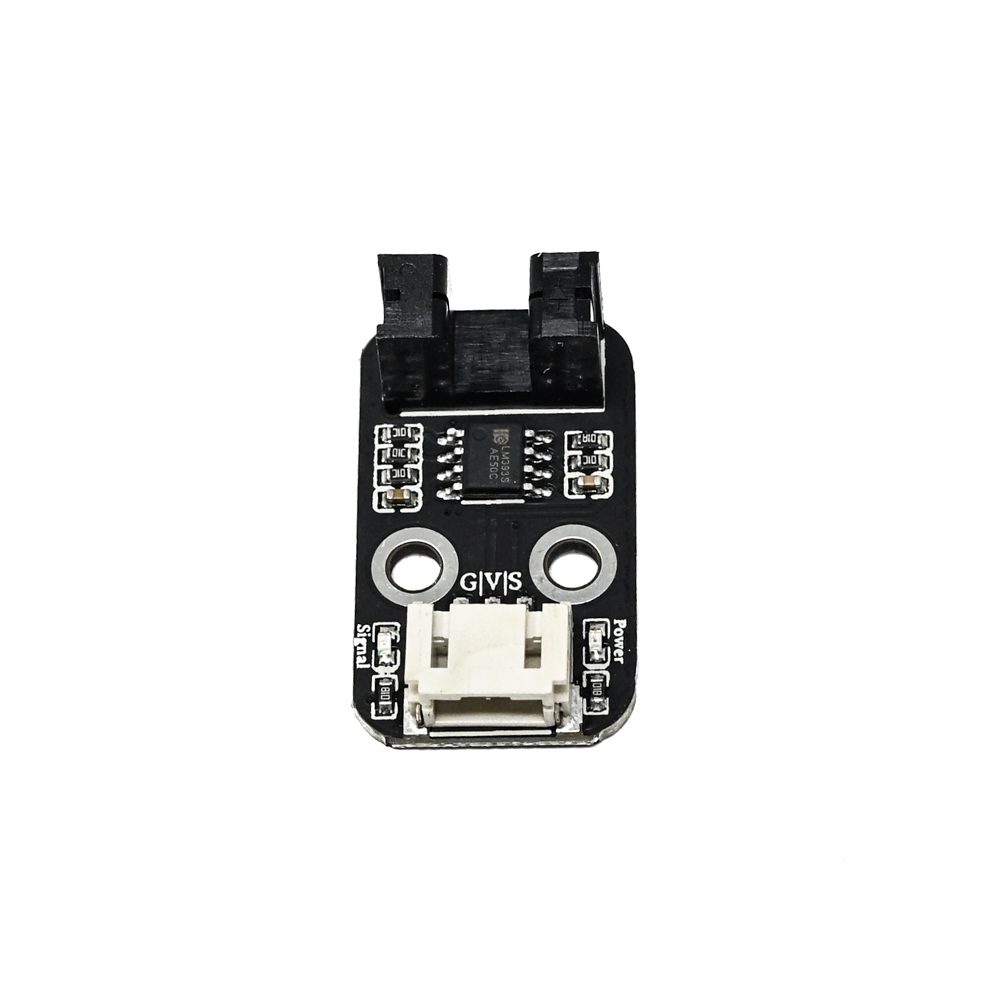

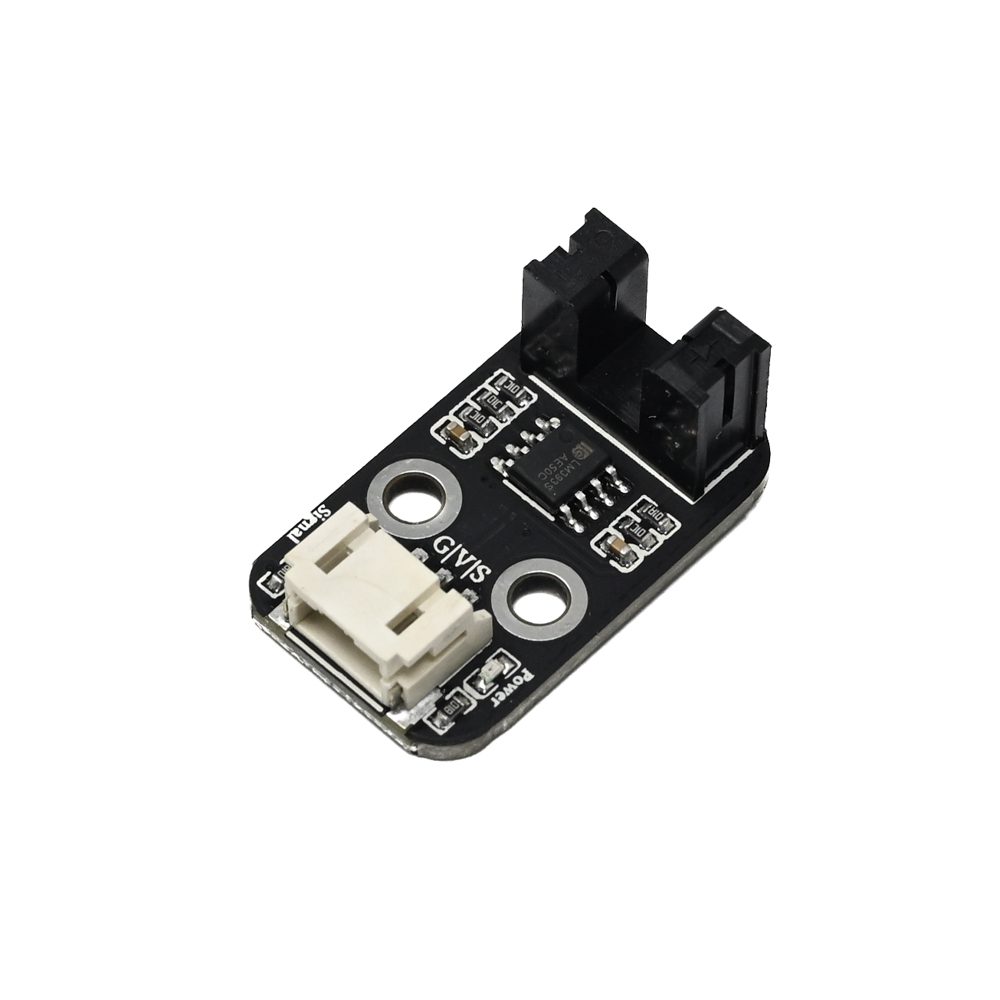

HS-S59P Slot Type Photoelectric Sensor - 5.9mm Slot, TTL Output, PH2.0 Connector
The HS-S59P is a slot-type infrared photoelectric sensor module designed for precise object detection and pulse counting. It features a 5.9mm slot width, TTL-compatible low-level output, and operates on 3.3V or 5V DC, making it compatible with Arduino, Raspberry Pi, ESP32, and other microcontroller platforms.
Features
- Slot-type infrared photoelectric sensor with a precise 5.9mm detection gap.
- TTL-compatible low-level output signal triggered by opaque objects passing through the slot.
- Integrated Schmitt trigger circuit for stable, de-jittered pulse signals.
- Wide operating voltage range of 3.3V to 5V DC for flexible system integration.
- Compact form factor (29mm x 16mm) with a PH2.0 connector for easy installation.
Out of stock
The HS-S59P sensor utilizes an infrared LED paired with an NPN phototransistor within a precise 5.9mm slot. When an opaque object interrupts the infrared beam, the phototransistor triggers, producing a clean TTL low-level output signal. The integrated Schmitt trigger ensures signal stability by eliminating bounce and noise, providing reliable digital pulses for counting and timing applications.
This module is engineered for durability and consistent performance in automation environments. Its compact design and standard PH2.0 interface facilitate straightforward integration into speed measurement systems, encoder assemblies, and robotic sensing applications.
Additional Information
| Weight | 0.003 kg |
|---|---|
| Dimensions | 2.9 × 1.6 cm |
